2020 Haas UMC-500

No longer available

2020 Haas UMC-500

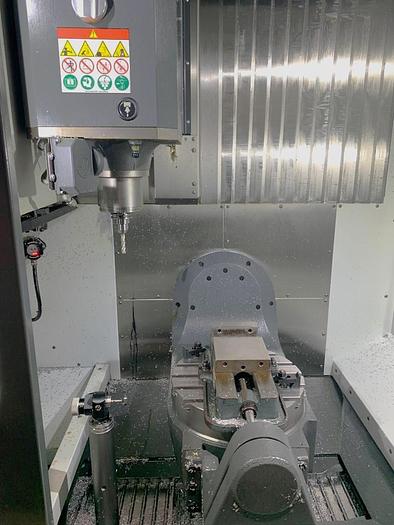

Trunnion Style 5th Axis Table

Coolant Through the Spindle - 300 PSI

Auxiliary Coolant Filter

Renishaw Probing with Tool & Part Probing

Chip Conveyor

30 Station Tool Changer

Remote Jog Handle

User Definable Macros

Coordinate Rotation & Scaling

Spindle Orientation

Haas Visual Programming System

Rigid Tapping

High Speed Machining

Media Display

1 GB Program Memory

8 Spare M Functions

Wireless Networking

Ethernet Interface

USB Port Interface

RS 232 Port Interface

Coolant System with Tank & Pump

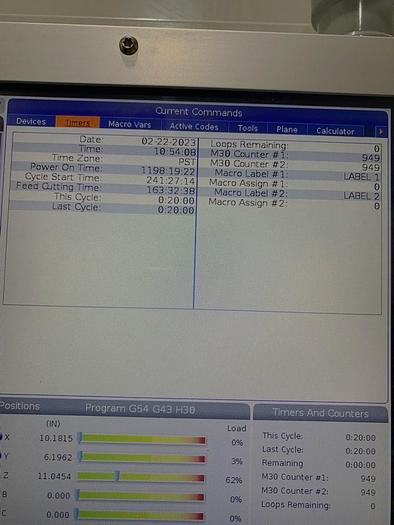

**Power On Time - 1,198 Hours**

**Cycle Start Time - 241 Hours**

**Feed Cutting Time - 163 Hours**


Stock Number118957
Table size15.7" Diameter
Table load capacity500 lbs
X axis travel24"
Y axis travel16"
Z axis travel16"
B axis rotate of trunnion-35 Degrees to 110 Degrees
C axis table rotation.001 Degree Positioning
Spindle taperCAT #40
Spindle speed8,100 RPM
Spindle motor30 HP
Distance Spindle Nose to Table Top4" - 20"
Tool magazine30 + 1 Position Toolchanger
Maximum Tool Diameter / Length / Weight5" / 12" / 12 lbs.
Rapid traverse rates1200 IPM
Maximum feed rates650 IPM
Machine dimensions120" x 98" x 110"
Machine weight12,500 lbs
