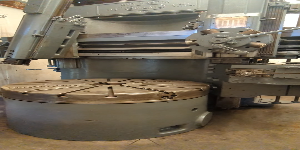

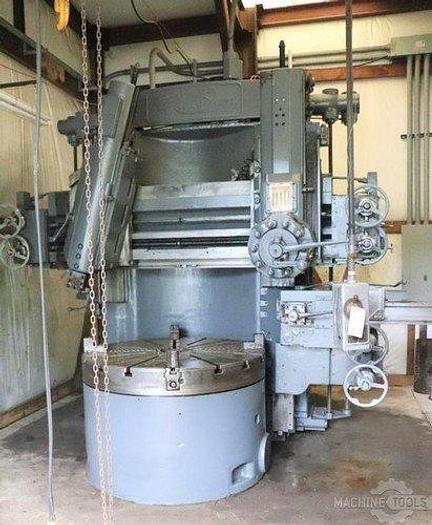

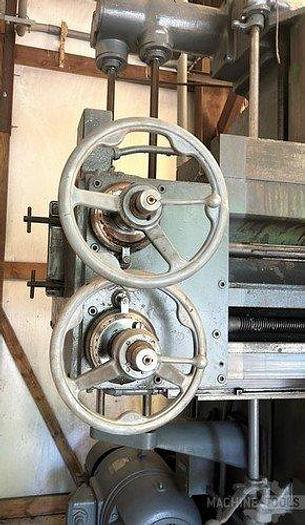

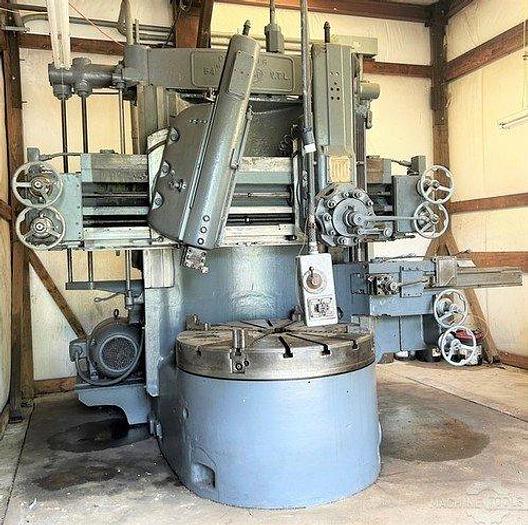

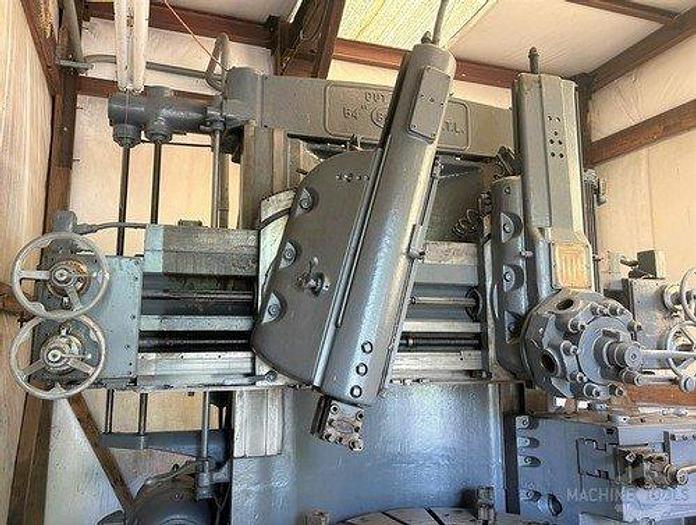

1952 Bullard Cutmaster 54" w/Side Head
No longer available
1952 Bullard Cutmaster 54" w/Side Head
Location:South Carolina
Description
Turret Head

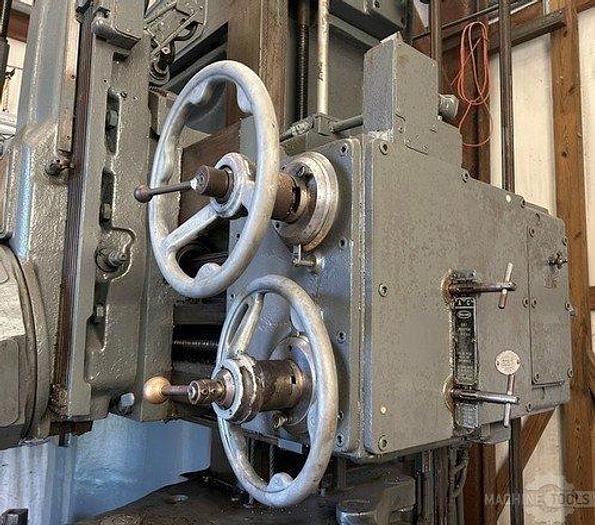

Ram Head

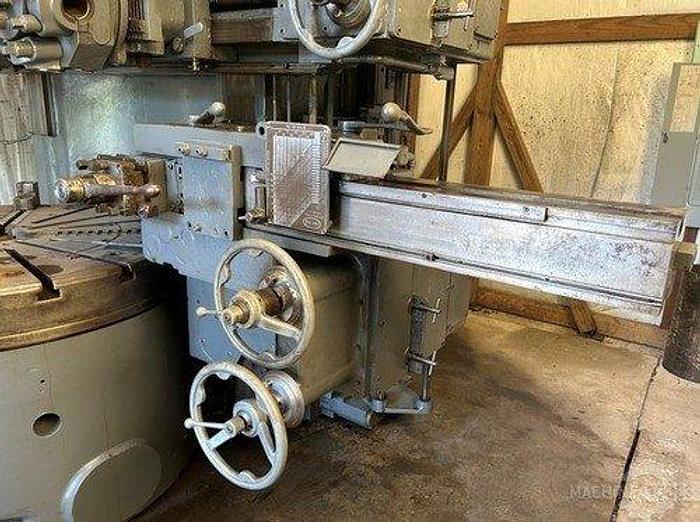

Side Head
Pendant Control
Assorted Turret Tooling
230/440 volts
**Very Good Condition**
Specifications
| Manufacturer | Bullard |
| Model | Cutmaster 54" w/Side Head |
| Year | 1952 |
| Condition | Used |

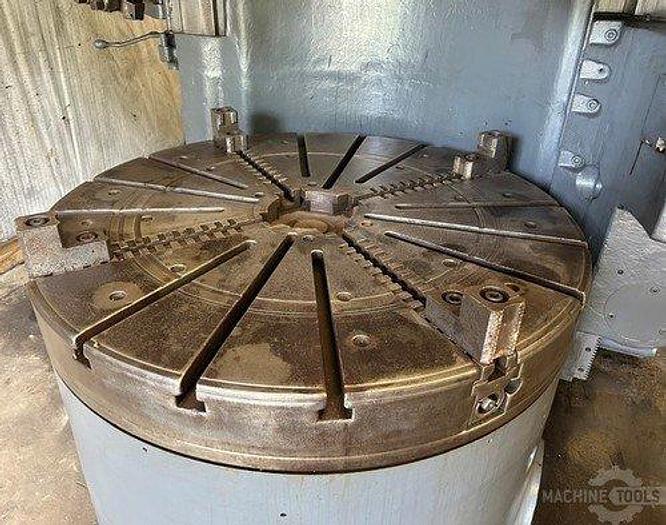

| Chuck Size | 54" 4-Jaw |
| Maximum Swing | 62" |
| Height Under Rail | 44" |
| Cross Rail Vertical Travel | 30.375" |
| Turret Head on Rail | 5 Positions |
| Ram Head Vertical Travel | 30.5" |
| Ram Head Horizontal Travel | 34.375" |
| Table Speeds | 2.1 rpm to 160 rpm |

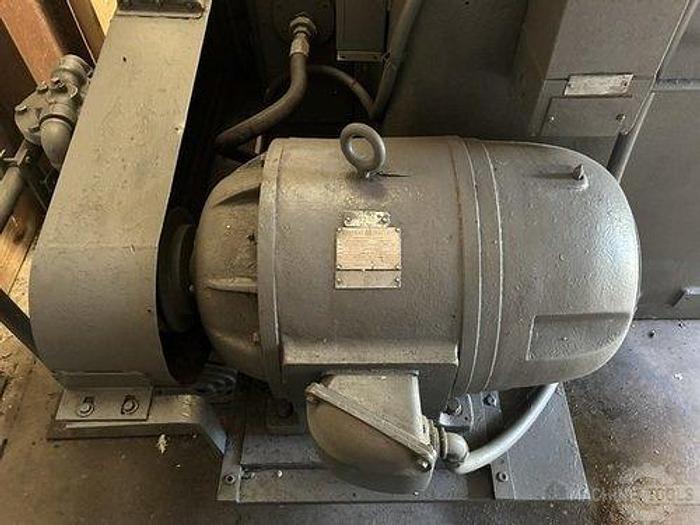

| Main Motor | 30 hp |
| Swiveling Turret Head | 5 Positions with 30 Degrees Left or Right Swivel |
| Swiveling Ram Head | 30 Degrees Left of Right |
| Side Head | 27" Horizontal Travel & 44.25" Vertical Travel |
| Spindle Speeds | 20 from 3.28 to 120 rpm |
| Cutting Feedrates | 16 from .0026 to .5 ipm |
| Machine Dimensions LxWxH | 120"x155"x132" |
| Machine Weight | 48,000 lbs |
