1952 Bullard 64" Cutmaster High Column
No longer available
1952 Bullard 64" Cutmaster High Column
Location:Illinois
Description
Ram Head on Rail

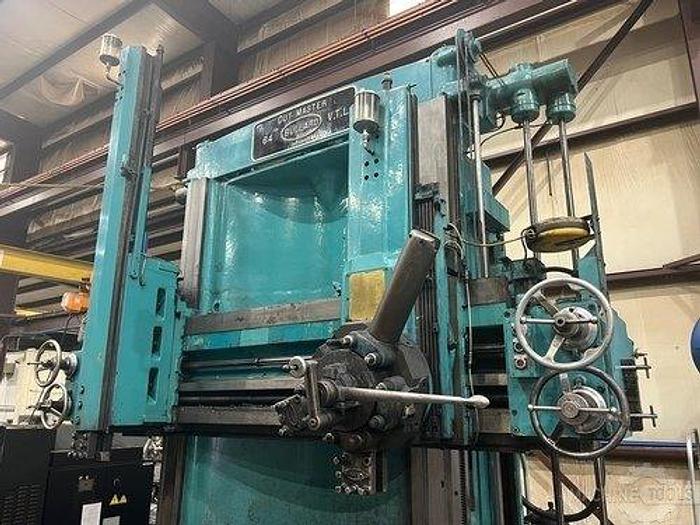

5 Station Turret RAM on Rail
Side Head
Assorted Turret Tooling
220/440 Volts
Specifications
| Manufacturer | Bullard |
| Model | 64" Cutmaster High Column |
| Year | 1952 |
| Condition | Used |
| Stock Number | 118947 |
| Maximum Swing | 72" |

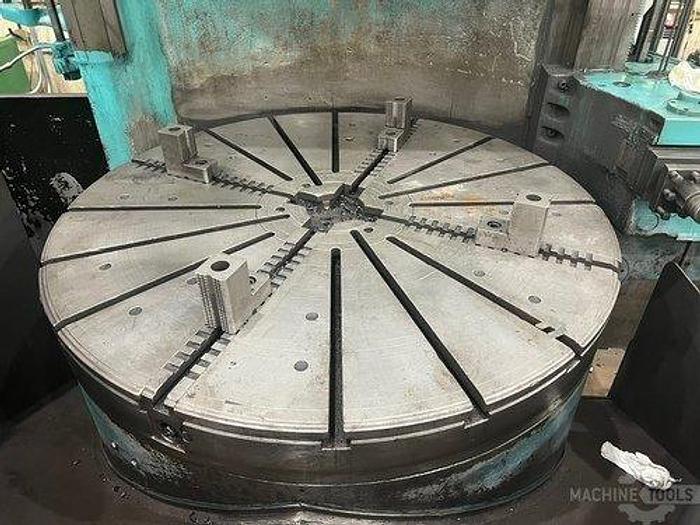

| Chuck Size | 64" 4-Jaw |
| Height Under Rail | 81" |
| Ram Stroke | 79" |
| Side Head | 5 Positions |
| Table Speed | 3.3 to 100 RPM |

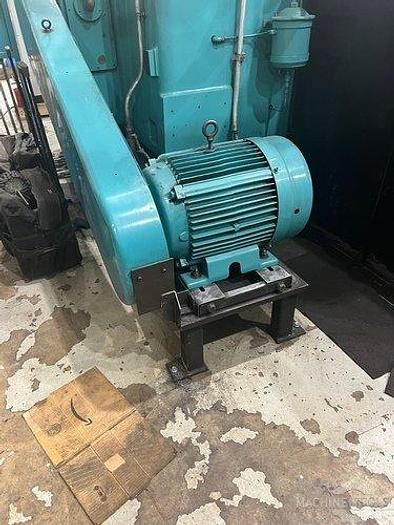

| Main Motor | 40 hp |
| Machine Dimensions LxWxH | 124"x157"x133.6" |
| Machine Weight | 42,800 lbs |
