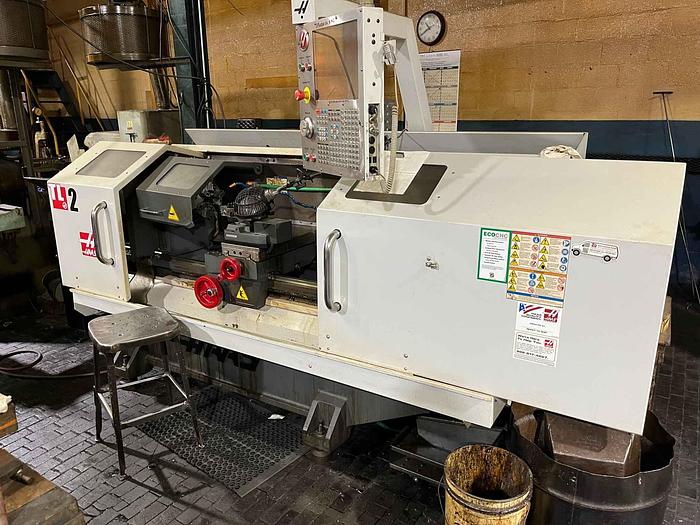

2012 Haas TL-2 Big Bore
No longer available
2012 Haas TL-2 Big Bore
Location:Ohio
Description
Manual Tailstock with #MT4 Quill
Synchronized Tapping
Intuitive Programming System
1MB Program Memory

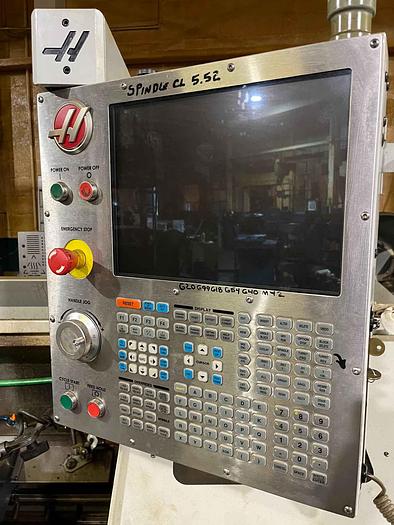

15" Color LCD Monitor
USP Port

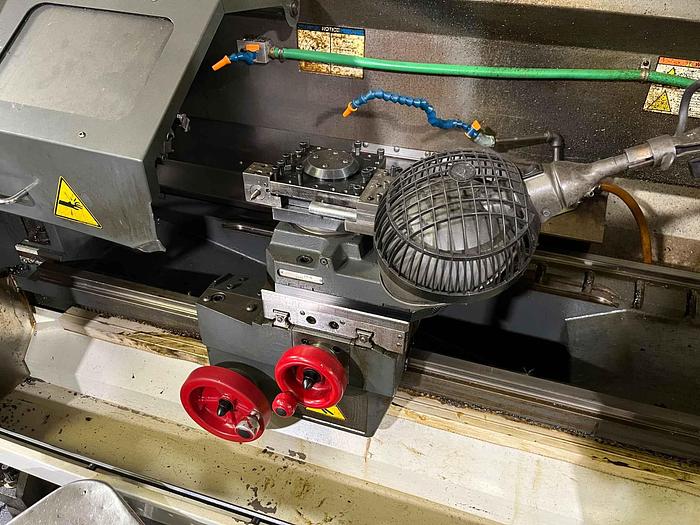

4 Station Indexing Turret 3/4" Shank Turning Tool Holders
Spindle Orientation
Manual Steady Rest 5" Max.
3,500 RPM Spindle HSTL-2
High Flow Coolant Pump Kit
Manual Hand Wheels Full Enclosure
Work Light RS 232 Port Interface
Replacement cost with these options $58,065
Specifications
| Manufacturer | Haas |
| Model | TL-2 Big Bore |
| Year | 2012 |
| Condition | Used |
| Stock Number | 118943 |
| Control | Haas 32 BIT |

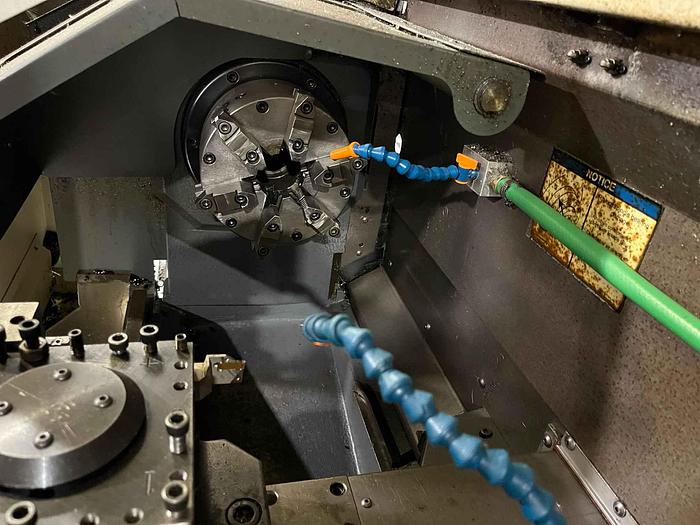

| Chuck Size | 10" 6- Jaw Chuck |
| Maximum Swing over Bed | 20" |
| Maximum Swing Over Cross Slide | 11" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 48" |
| X-axis travel | 8" |
| Z-Axis Travel | 48" |
| Spindle Nose / Spindle Bore | A2-6" / 3" |
| Spindle Speeds | 3,500 RPM |
| Spindle Motor | 10 HP |
| Number of Turret Positions | 4 Indexing Style |
| Rapid Traverse Rates X/Z | 450 IPM / 450 IPM |
| Machine Dimensions | 100" x 55" x 80" |
| Machine Weight | 5,000 lbs. |
