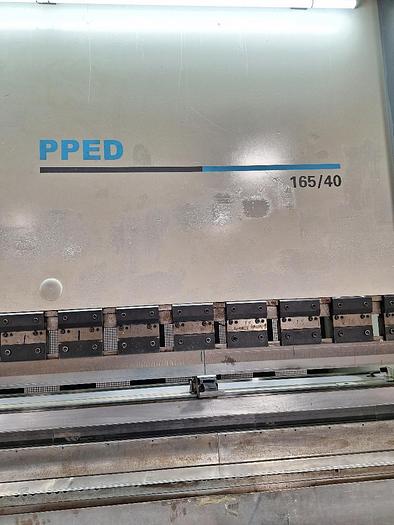

2018 LVD Strippit PPED 165/40 Press Brake
No longer available
2018 LVD Strippit PPED 165/40 Press Brake
$67,500 (USD)
Location:Arkansas
Description
7-Axis Capability
Crowning V, X1, Y, CX1, RTX 1, FX 1, R1, Z1, Z2
Linear Encoders
Laser Safe Defender Plus Press Brake Guarding System for workpieces to be within 7/8" of bend line

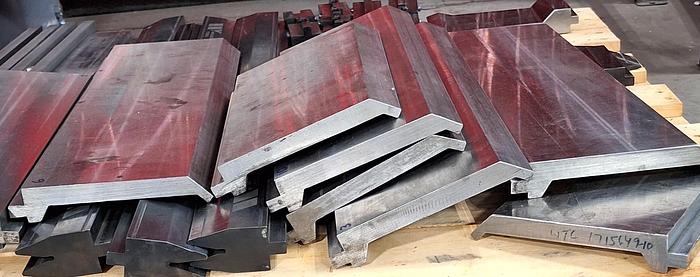

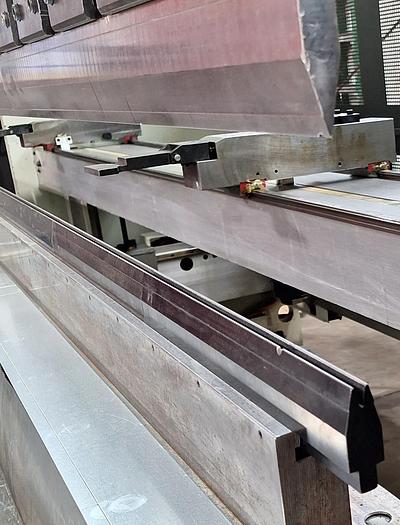

(1) 121" Punch & Die
120" Acute Punch
84" Acute Die
(8) Short Gooseneck Punches
(5) Short Dies

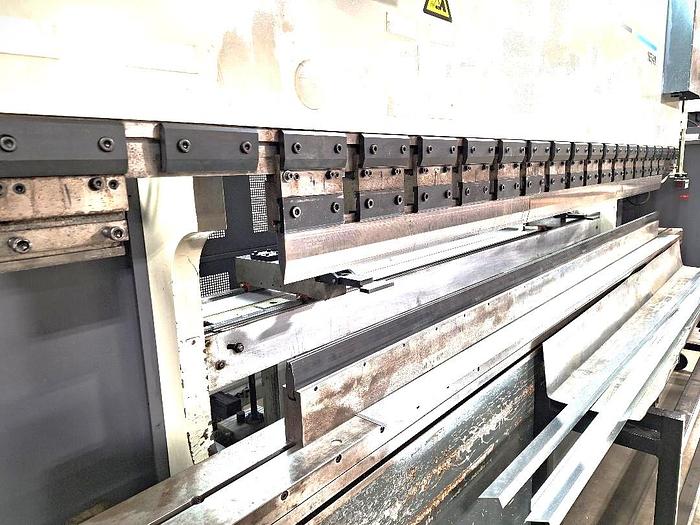

Complete Set of 18 Ram Clamps
Very Good Condition
All Available Manuals
Misc. Tools
Specifications
| Manufacturer | LVD Strippit |
| Model | PPED 165/40 Press Brake |
| Year | 2018 |
| Condition | Used |
| Stock Number | 118942 |

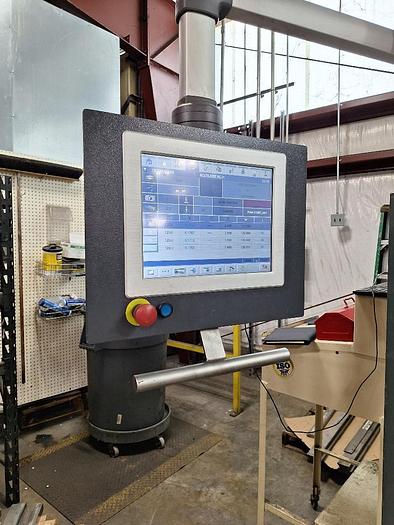

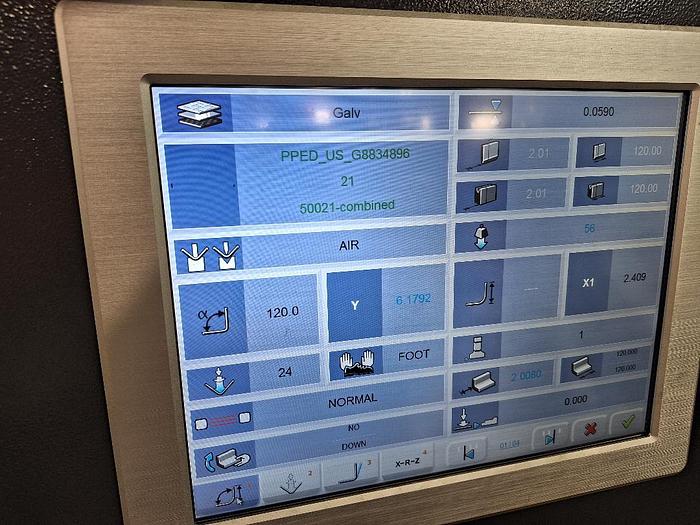

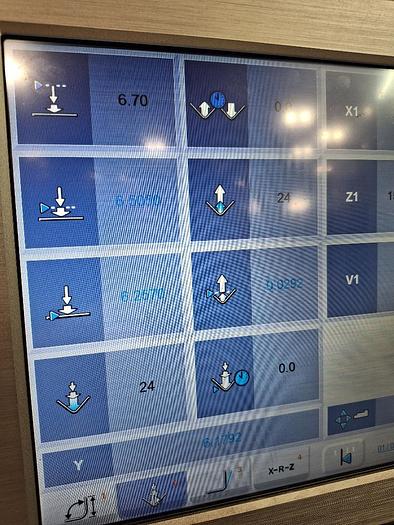

| Machine Control | 15" Intuitive Touch-B Powered by Cadman |
| Capacity | 180 Ton |
| Between Uprights | 124" |
| Stroke | 7.8" |
| Opening | 19.6" |
| Gap | 9.8" |
| Speed | Approach 259 IPM / Working 24 IPM / Return 236 IPM |
| Main Motor | 24 HP 480 Volts |
| Oil Requirement | 79 Gallons |
| Machine Dimensions LxWxH | 174"x70"x107" |
| Machine Weight | 27,000 lbs |
