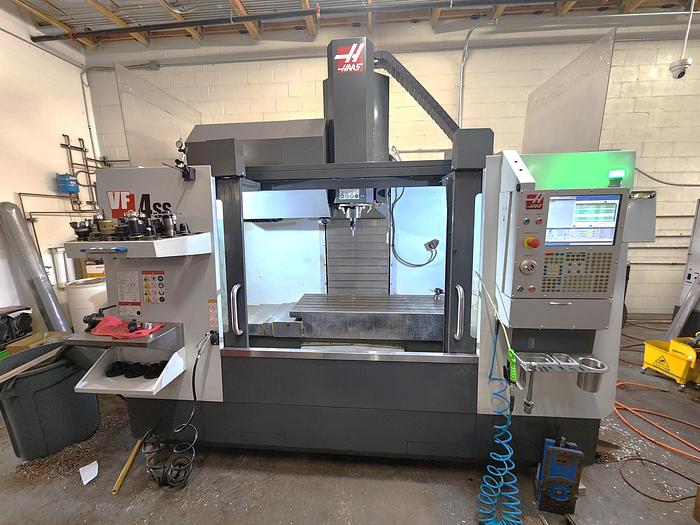

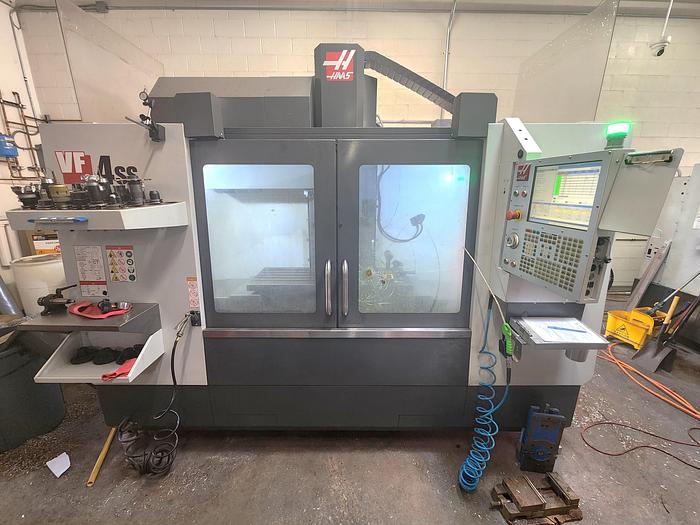

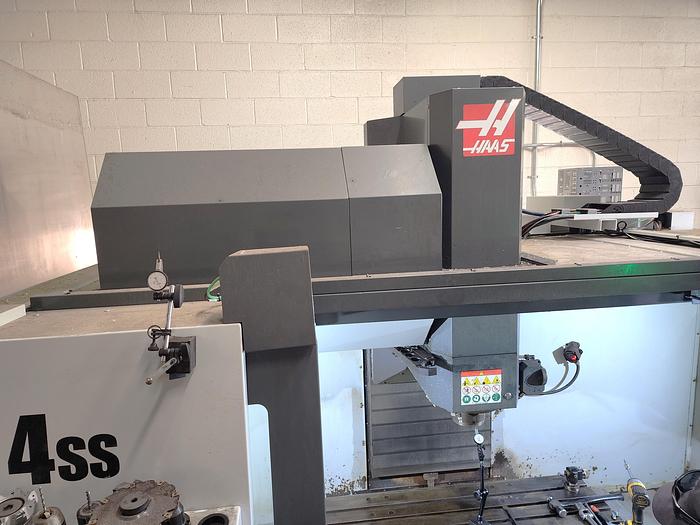

2020 Haas VF4SS
No longer available
2020 Haas VF4SS
Location:Arizona
Description

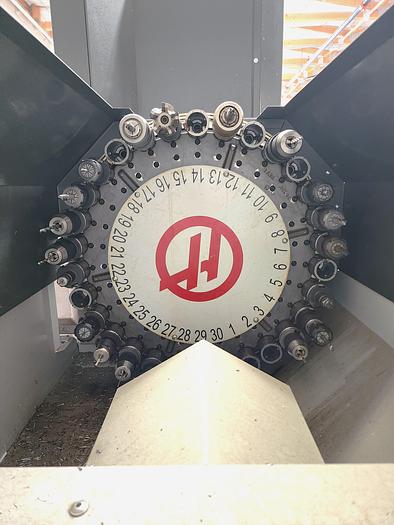

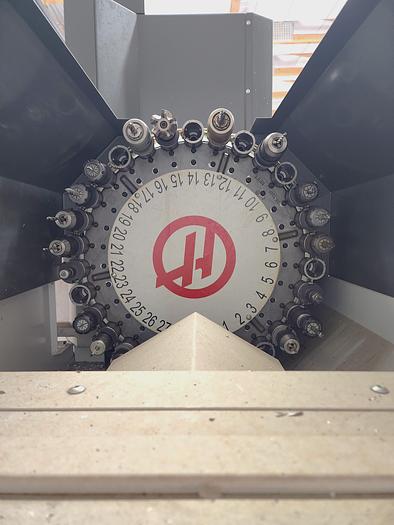

30+1 Position Side Mounted Tool Changer

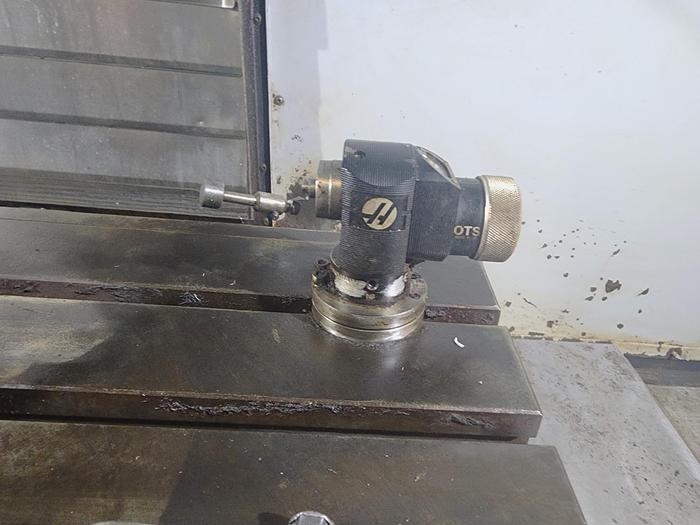

Haas Wireless Tool & Part Probing - Renishaw
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Visual Part Programming System
Auger Style Chip Conveyor
High Speed Machining
Programmable Coolant Nozzle
Rigid Tapping

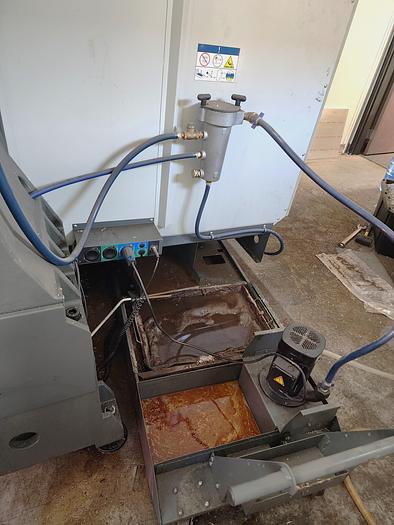

Coolant Tank with Pump

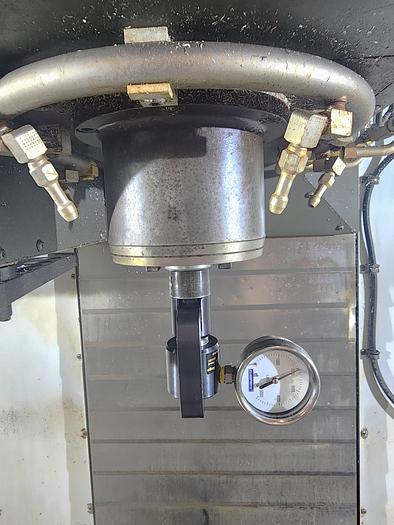

Inline Direct Drive 12,000 RPM Spindle
1 GB Programming Memory
15" Color LCD Monitor
WiFi Connection
Ethernet Interface
USB Port Interface
RS 232C Port Interface for DNC Operation

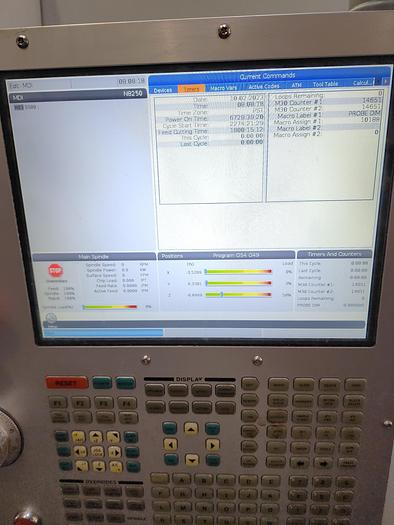

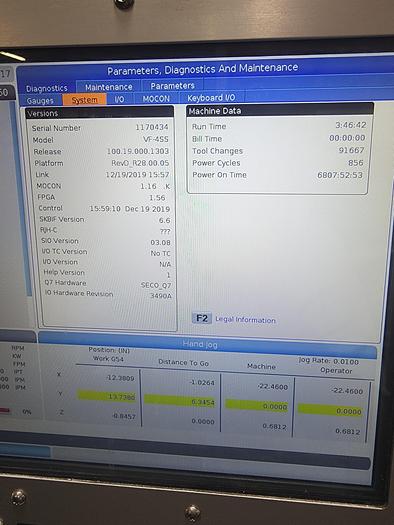

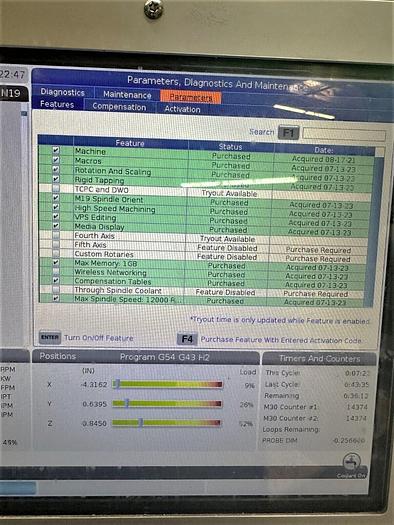

**Power On Hours 6,583**
**Cycle Start Hours 2,232**
**Feed Cutting Hours 1,762**
**Price New as equipped today at nearly $ 110,000**
Specifications
| Manufacturer | Haas |
| Model | VF4SS |
| Year | 2020 |
| Condition | Used |
| Stock Number | 118939 |

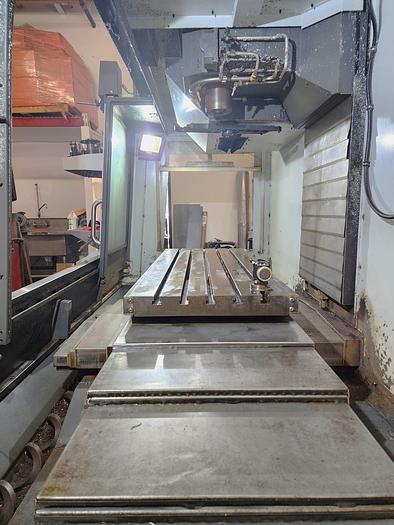

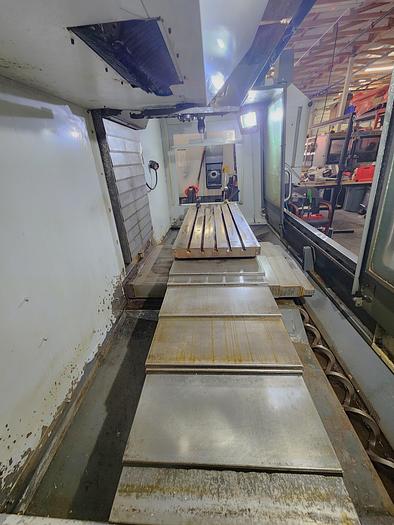

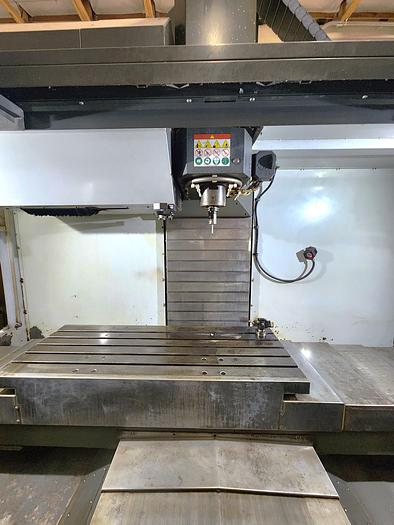

| Table size | 52" x 18" |
| Max table load | 1,750 lbs |
| X axis travel | 50" |
| Y axis travel | 20" |
| Z axis travel | 25" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4.2" - 29.2" |
| Number of tool positions | 30 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 152" x 99" x 106" |
| Machine weight (approximately) | 13,800 lbs. |
