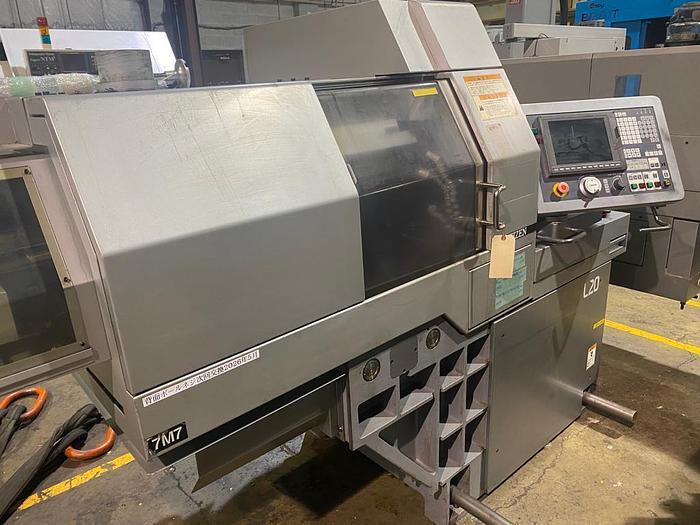

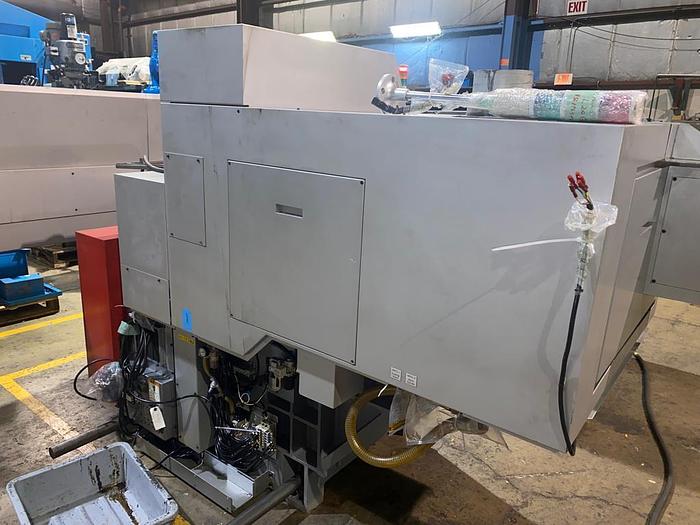

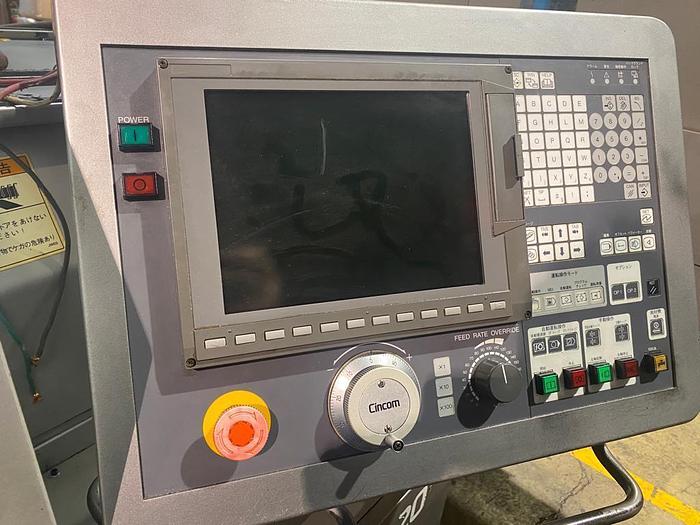

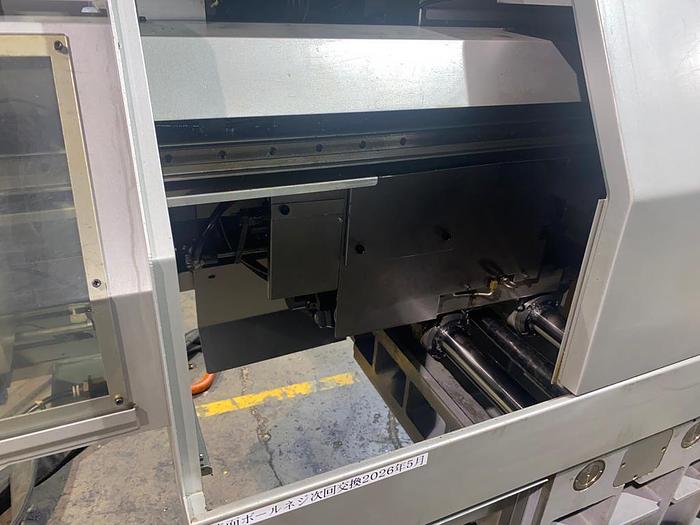

2006 Citizen L20 Type VIII 7M7
No longer available
2006 Citizen L20 Type VIII 7M7
Location:Illinois
Description
C Axis Capability on both Main & Subspindle

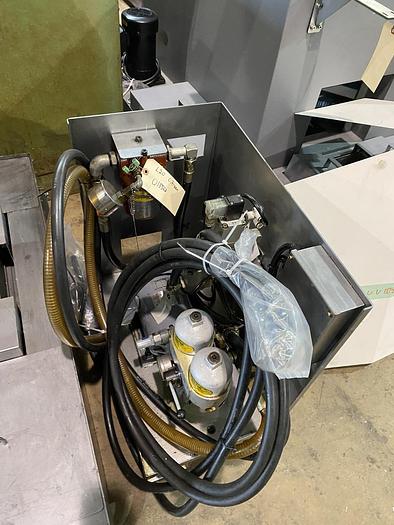

High Pressure Coolant System

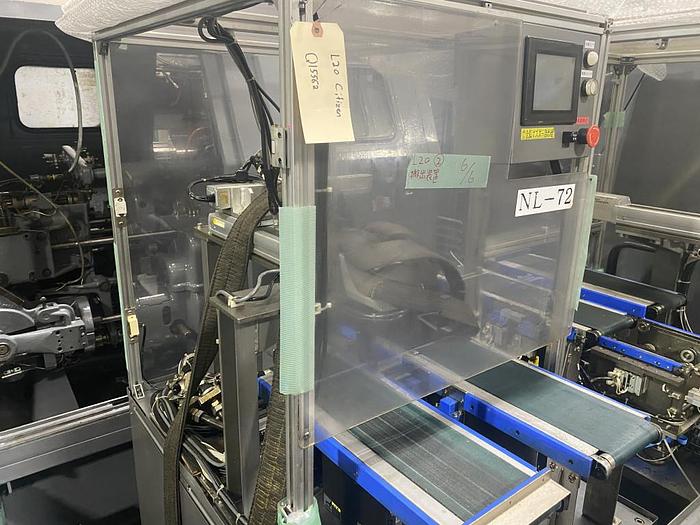

Parts Exit Conveyor
Chip Conveyor
Fire Suppression

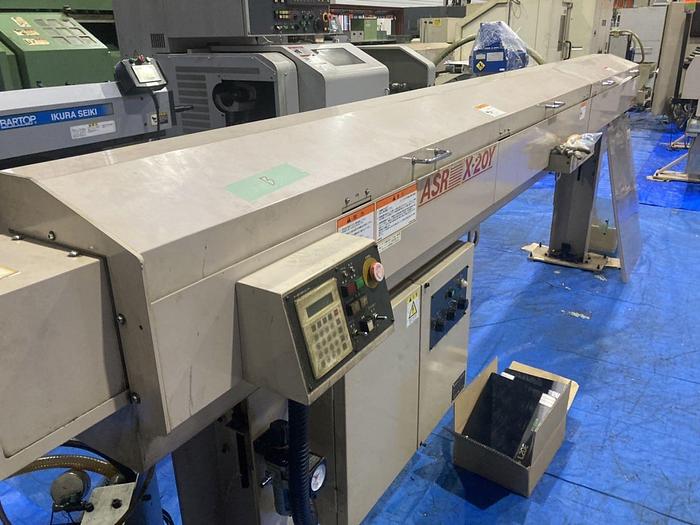

ASR-X-20Y 10' Barfeed
All Available Manuals
**5,374 Cutting Hous**
Specifications
| Manufacturer | Citizen |
| Model | L20 Type VIII 7M7 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 118937 |
| Machining Diameter | .813" |
| Maximum Bar Capacity | .813" |
| Maximum Cutting Length | 7.88" |
| Maximum Drilling Diameter | .375" |
| Main Spindle C-Axis Indexing | .001 Degrees |
| Subspindle C-Axis Indexing | .001 Degrees |
| Main & Subspindle Speeds | 10,000 rpm / 8,000 rpm |
| Main Spindle / Sub Spindle Motor | 5 HP / 2 HP |
| Number of Tool Positions | 18 Total / 7 Live Tool Positions |
| Gang Slide Tool Positions | 5 Turning Positions |
| Front / Back Work Tool Post Positions | 6 (14) / 8 (16) |
| Rotary Tool Positions Cross | 5 (14) |
| Rotary Tool Positions Front Face | 3 (13) |
| Live Milling Speed / Motor | 4,500 RPM / 1.34 HP |
| Machine Dimensions LxWxH | 84"x47"x71" |
| Machine Weight | 5,070 lbs |
