2004 Star SR-32J
2004 Star SR-32J
Contact us for price
California
orCall (863) 439-6066
Description

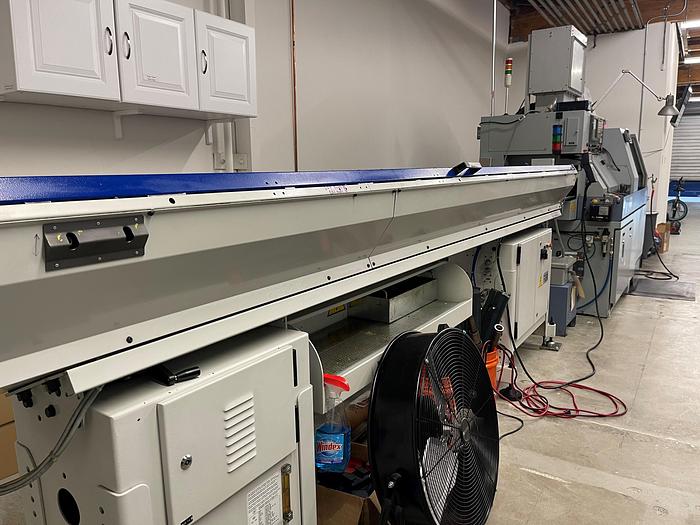

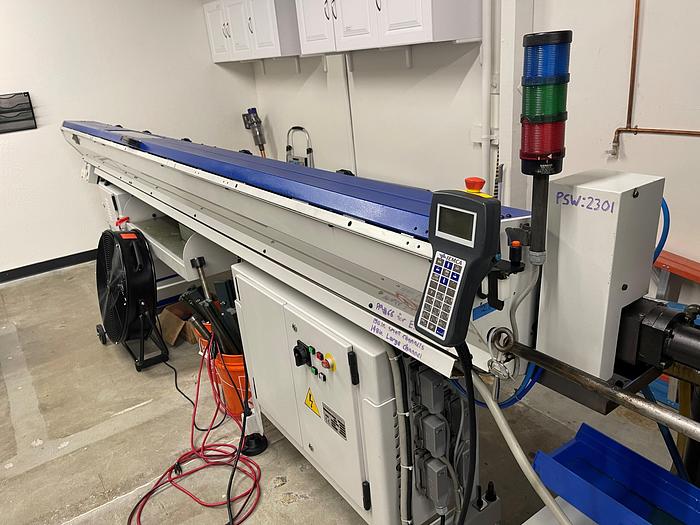

Iemca Boss 432 Magazine Barloader & Guide Channels
High Pressure Coolant System

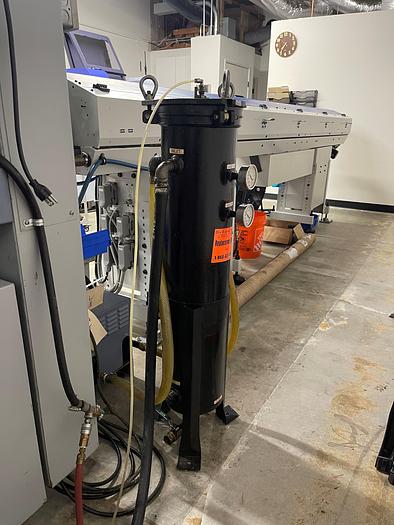

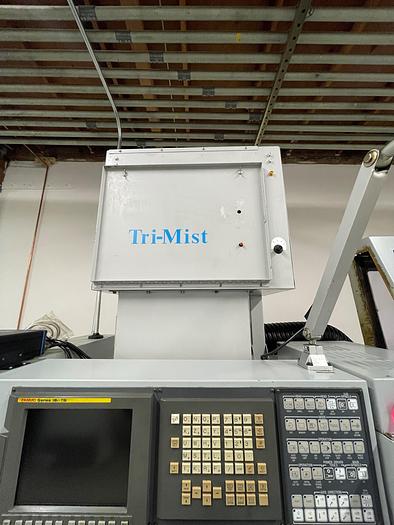

Tri-Mist Filtration
Nakanishi HI-Speed Live Tool Option
Parts Conveyor
All Available Manuals
Manufacture date 12/2004
Specifications
| Manufacturer | Star |
| Model | SR-32J |
| Year | 2004 |
| Condition | Used |
| Stock Number | 118934 |
| Machine Control | Fanuc 18i-TB |
| Number of Axes | 7 |
| Maximum Machining Diameter | 32mm (1.26") |
| Maximum Headstock Stroke | 310mm Standard (12.21") |
| Spindle speed | 7,000 rpm |
| Spindle Indexing | .01 Degrees |
| Spindle Motor | 10/7.38 hp |
| Number of Tool Positions | 4-Spindle Sleeve Holder 4 Front working 4 back working |
| Number of Gang Tool Post | 6 Turning / 4 Power Driven |
| Number os 4-Spindlel Sleeve Holders | 4 Front Working 4 Back Working |
| Maximum Drilling Capacity | 13 mm (.51") 8mm (.32") Power Driven Attachment |
| Maximum Tapping Capacity | M12x1.75 4-Spindle Sleeve Holder M6x1.0 Power Driven Attachment |
| Maximum Chucking Diameter | 32mm |
| Maximum Pick up part length | 125mm |
| Subspindle Speed | 7,000 rpm |
| Machine Dimensions LxWxH | 73"x30"x66" |
| Machine Weight | 3,086 lbs |
