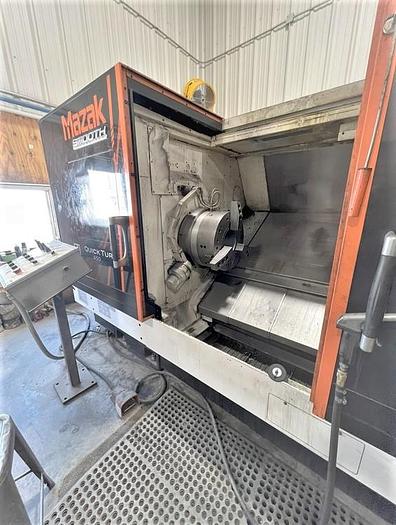

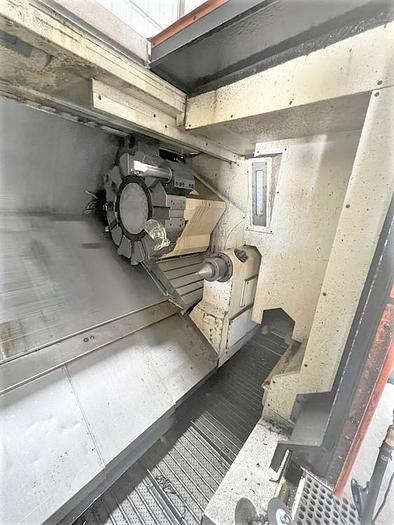

2019 Mazak Quickturn 450 Smooth/1000
No longer available
2019 Mazak Quickturn 450 Smooth/1000
$229,500 (USD)
Location:Texas
Description

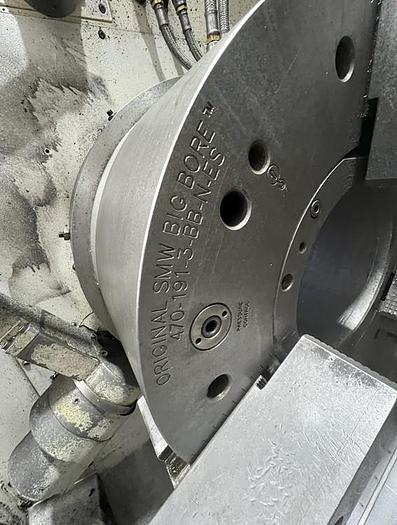

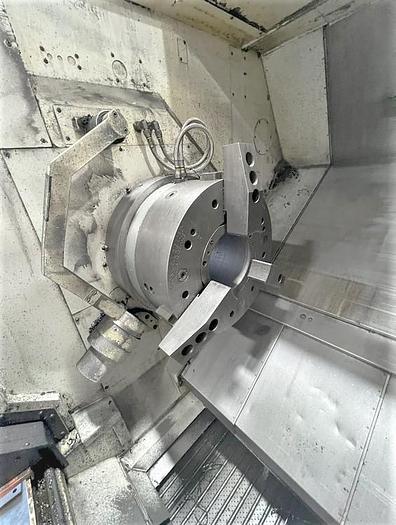

18.5" 3 Jaw SMW Model 470-191-3-BB-N-ES Extended Stroke Big Bore Air Chuck w/ 7.52" Hole - Front of Spindle
18.5" 3 Jaw SMW Model 470-191-3-BB-N-ES Extended Stroke Big Bore Air Chuck w/ 7.52" Hole - Rear of Spindle
Programmable Tailstock

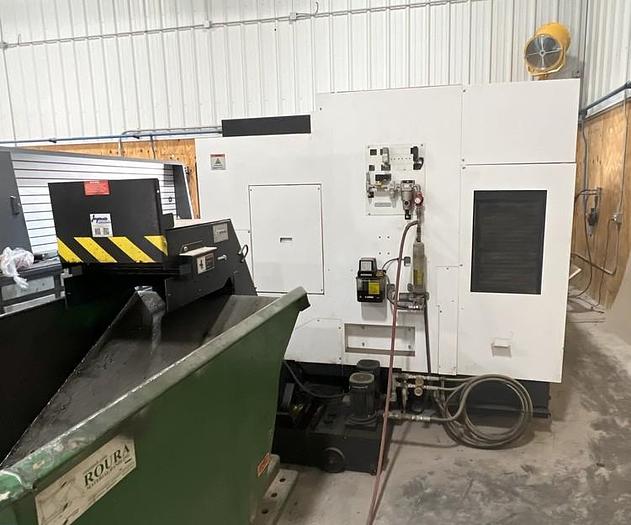

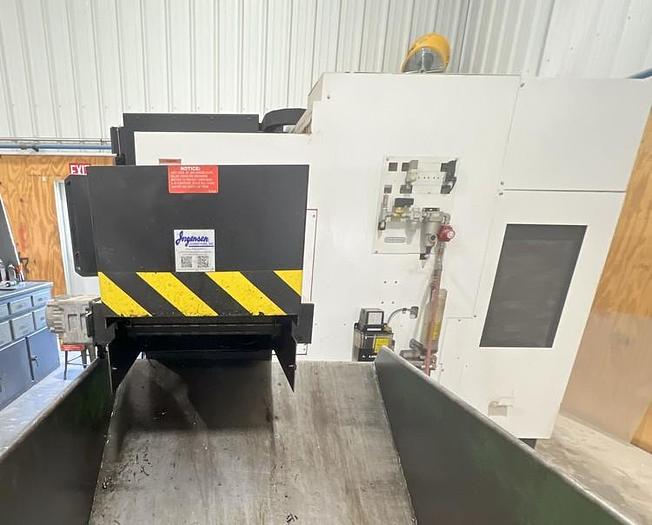

Chip Conveyor
EIA/ISO Programming 12.1" Color LCD USB Interface (2 Ports) LAN Port Interface
RS 232 Port Interface User Macro Multi Tap Transformer
Tool Path Storage
Coolant System with Tank & Pump
Integral Spindle Design Windows XP Operation System All Available Manuals All Available Tooling

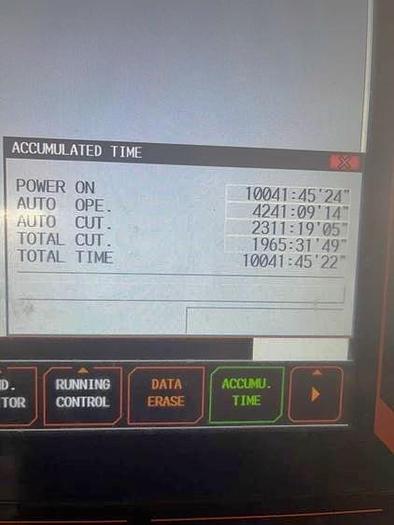

**Auto Operation Hours 4,241**
**Auto Cutting Hours**
**Total Cut Hours of 1,965**
Specifications
| Manufacturer | Mazak |
| Model | Quickturn 450 Smooth/1000 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 118931 |

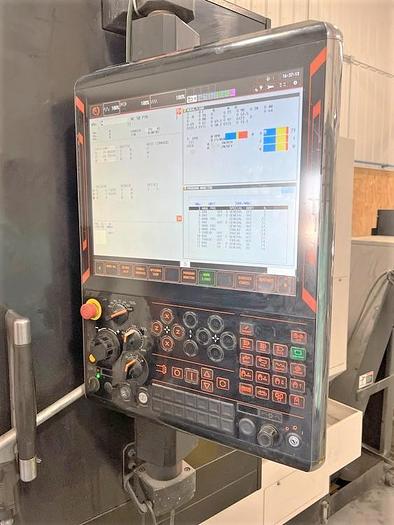

| Control | Mazak Smooth Control |
| Chuck Size | 18.5" 3 Jaw Air Chuck |
| Maximum Swing | 33.25" |
| Maximum Turning Diameter | 22.835" |
| Maximum Turning Length | 40.3" |
| Maximum Bar Capacity | 7.28" |
| X-Axis Travel | 12.13" |
| Z-Axis Travel | 42.13" |
| Spindle Nose / Spindle Bore | A2-15" / 7.28" |
| Spindle Speeds | 2,000 RPM |
| Spindle Motor | 60 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 1181 IPM |
| Tailstock Body Travel / Center | 40.375" / MT #5 |
| Machine Dimensions | 178"x99"x84" |
| Machine Weight | 21,283 lbs. |
