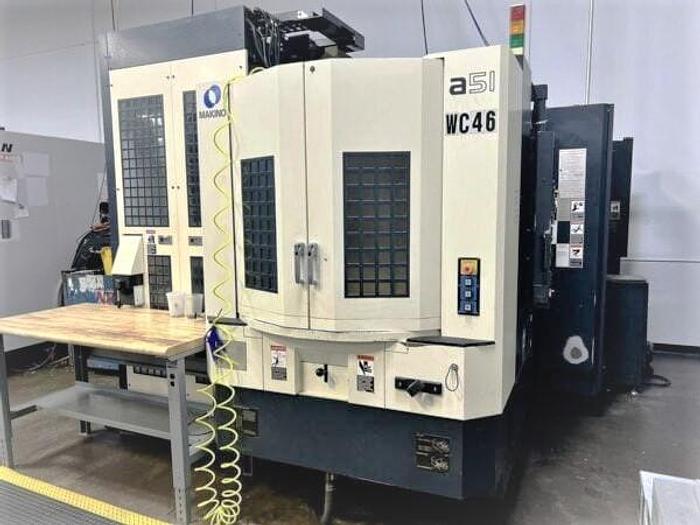

2004 Makino A51
No longer available
2004 Makino A51
Location:Minnesota
Description

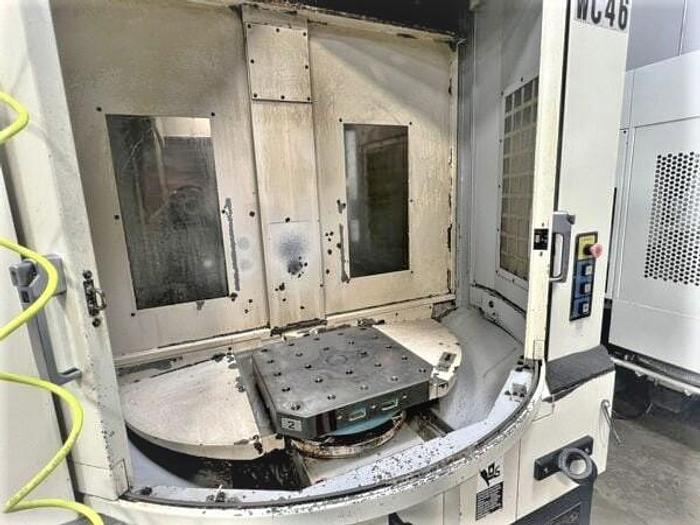

2 Pallet Changer System .001 Degree Full 4th Axis Rotary Table 128 Position Tool Magazine

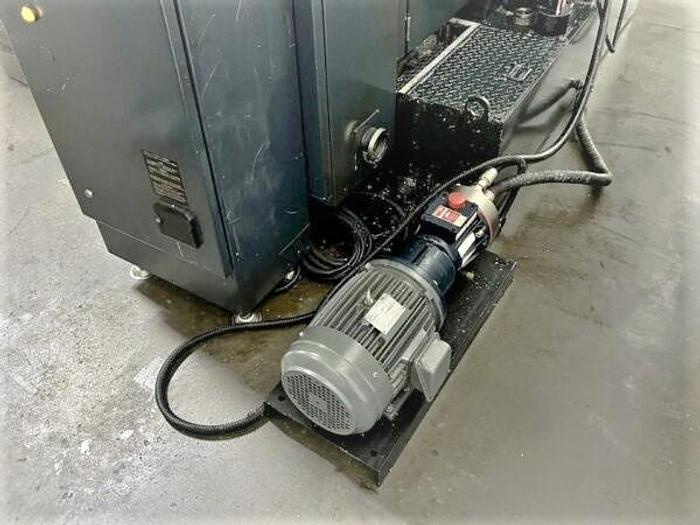

High Pressure Coolant Through the Spindle
Chip Conveyor
Part Probe Ready (needs spindle mounted tool with stylus) Flood Coolant System Coolant Tank with Pump Rigid Tapping Spindle Chiller Unit 3.5" Floppy Disk Interface RS 232 Port Interface
Machine 3 Color Status Condition Lights All Available Manuals
Specifications
| Manufacturer | Makino |
| Model | A51 |
| Year | 2004 |
| Condition | Used |
| Stock Number | 118826 |

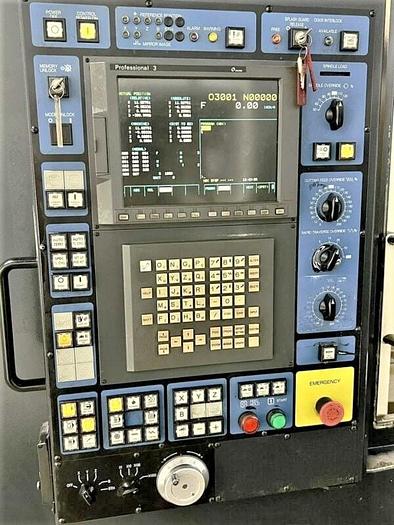

| Control | Makino Pro 3 Series Control |
| Pallet Size / Number of Pallets | 15.75" x 15.75" / 2 Pallet Changer |
| Maximum Weight on Table | 880 lbs. |
| Maximum Part Size D x H | 24.8" x 35.4" |
| Table Indexing | .001 Degree - Full 4th Axis |
| X-axis travel | 22.5" |
| Y-Axis Travel | 22.5" |
| Z-Axis Travel | 23.6" |
| Spindle Nose | CAT #40 |
| Spindle Speeds | 12,000 RPM |
| Spindle Motor | 25 HP |
| Number of Tool Positions | 128 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 5.51" / 11.81" / 17.6 lbs. |
| Tool Change Time Chip to Chip | 2.3 seconds |
| Tool Change Time Tool to Tool | .9 second |
| Rapid Traverse Rates | 1,969 IPM |
| Machine Dimensions LxWxH | 184" x 84" x 112.5" |
| Machine Weight | 18,900 lbs. |
