2012 Mazak Nexus QTN 450-II/2000
No longer available
2012 Mazak Nexus QTN 450-II/2000
$199,500 (USD)
Location:Alberta, Canada
Description

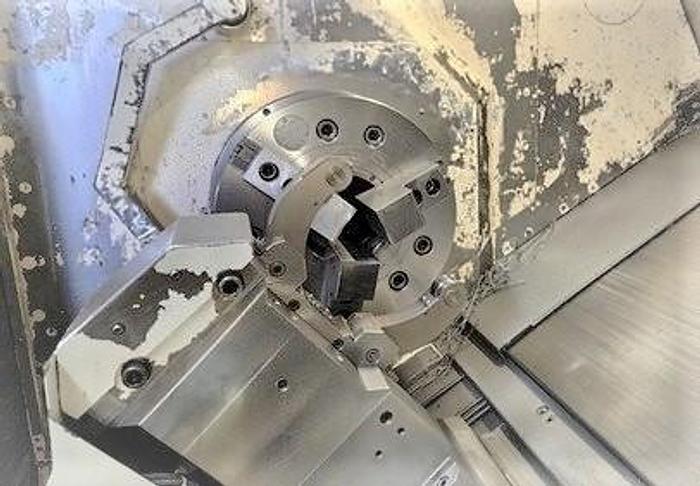

22" 3 Jaw Hydraulic Chuck
Side Exit Chip Conveyor Automatic Tool Eye Programmable Tailstock

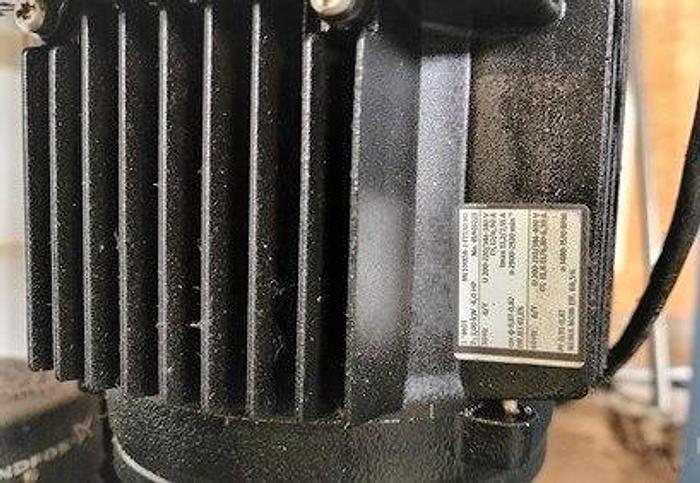

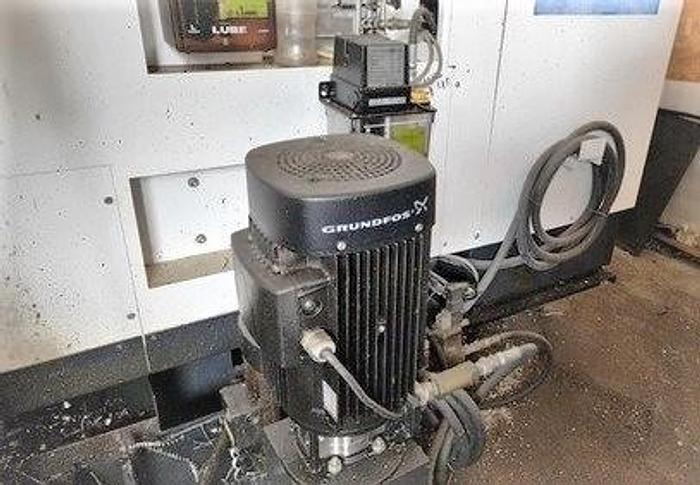

1000 PSI High Pressure Coolant System with Grundfos Pump
Programmable Hydraulic Steady Rest 12.1" Color LCD USB Interface (2 Ports) LAN Port Interface
RS 232 Port Interface User Macro Multi-Tap Transformer Tool Path Storage Windows XP Operation System All Available Manuals All Available Tooling
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 450-II/2000 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 118930 |

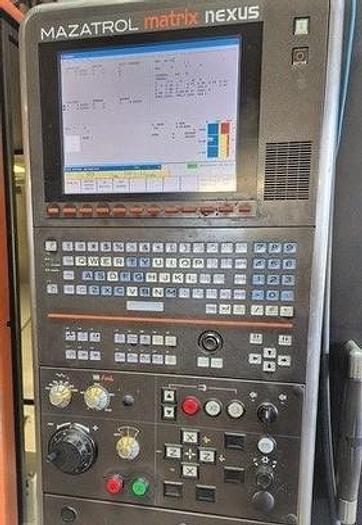

| Control | Mazatrol Matrix Nexus |
| Chuck Size | 22" 3 Jaw Hydraulic Chuck |
| Maximum Swing | 33.268" |
| Maximum Turning Diameter | 22.835" |
| Maximum Turning Length | 80.3" |
| Maximum Bar Capacity | 6.78" |
| X-Axis Travel | 12.13" |
| Z-Axis Travel | 82.13" |
| Spindle Nose / Spindle Bore | A2-15" / 7.28" |
| Spindle Speeds | 2,000 RPM - Geared |
| Spindle Motor | 50 HP |

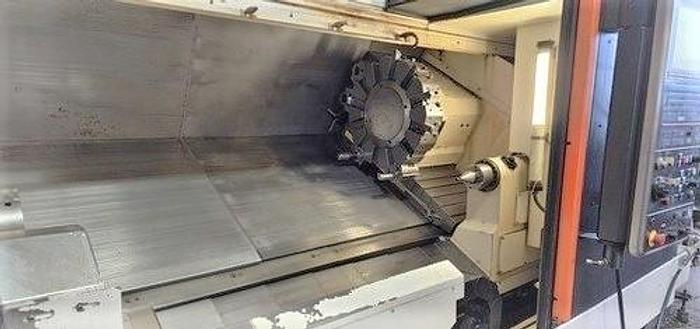

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 1181 IPM |
| Tailstock Body Travel / Center | 80.375" / MT #5 |
| Machine Dimensions | 196"x90"x80" |
| Machine Weight | 20,283 lbs. |
