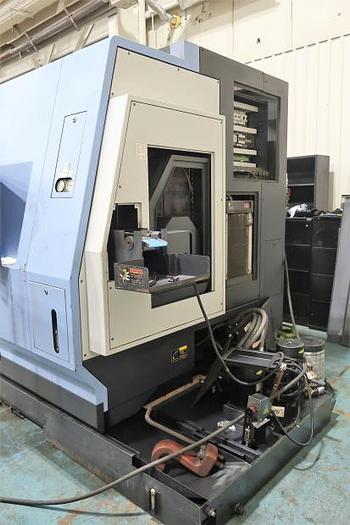

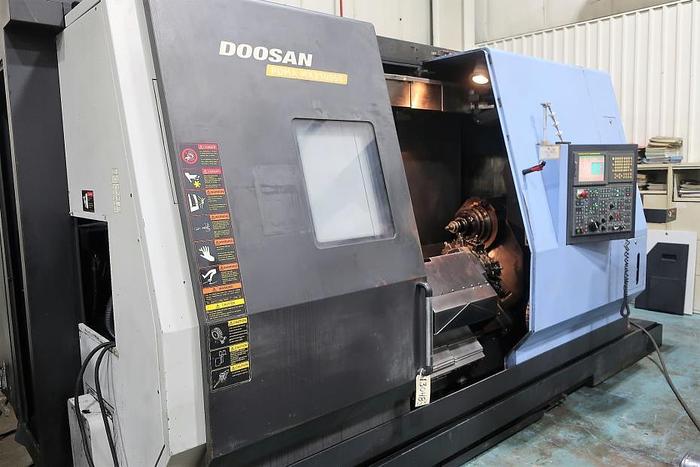

2008 Doosan Puma MX2500ST
2008 Doosan Puma MX2500ST
Contact us for price
Illinois
orCall (863) 439-6066
Description
9-Axis Capability

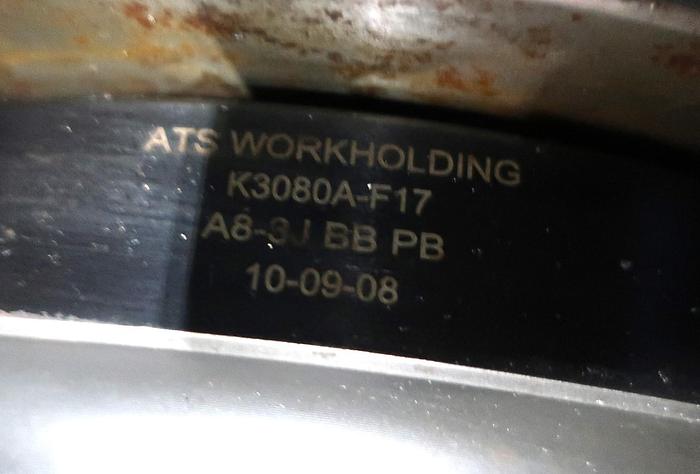

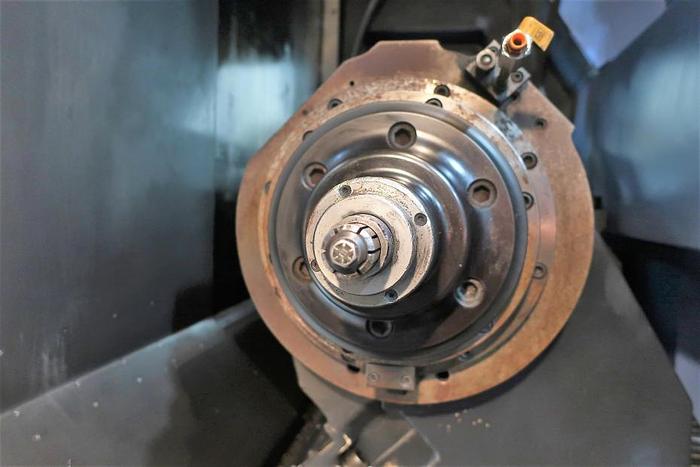

ATS Workholding 3J Collet Chuck on Subspindle

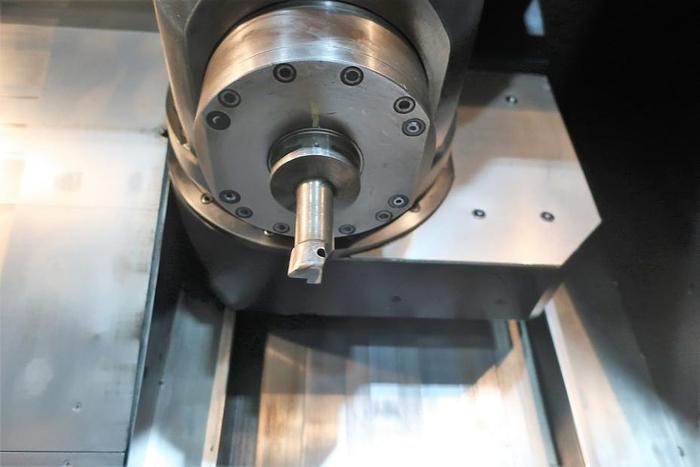

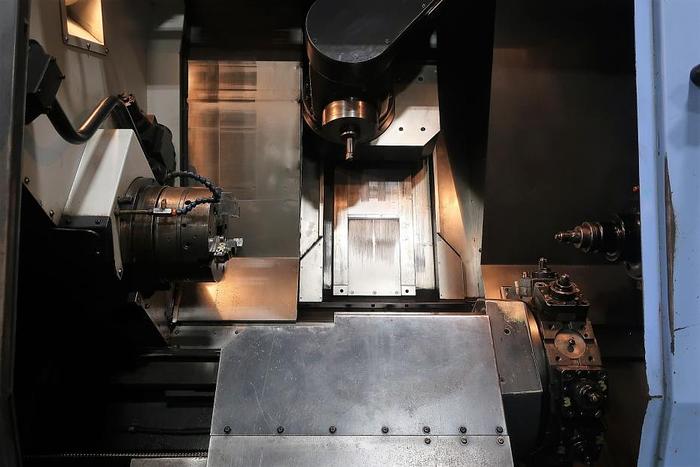

Pendulum Style B-Axis Head
Y-Axis Capability
Sub Spindle

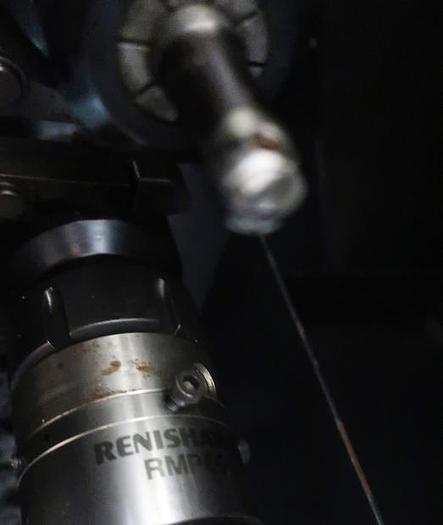

Renishaw Probe
Live Milling Capability

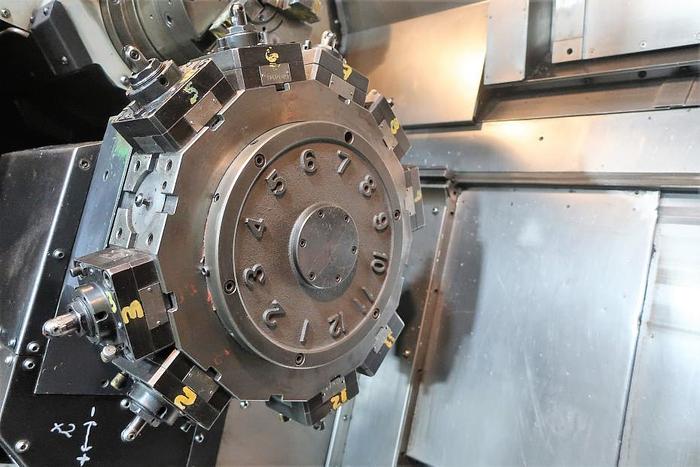

12 Station Lower Turret with All Locations Capable of Live
Automatic Tool Eye
Parts Exit Conveyor
Chip Conveyor
All Available Manuals

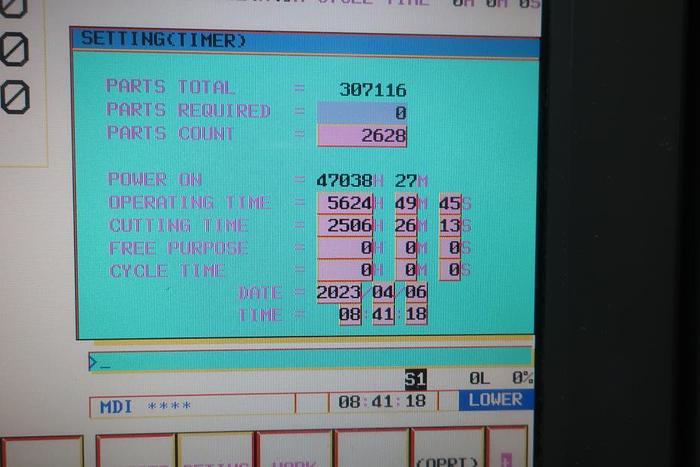

**Only 2,500 Run Time Hours**
Specifications
| Manufacturer | Doosan |
| Model | Puma MX2500ST |
| Year | 2008 |
| Condition | Used |
| Stock Number | 118930 |

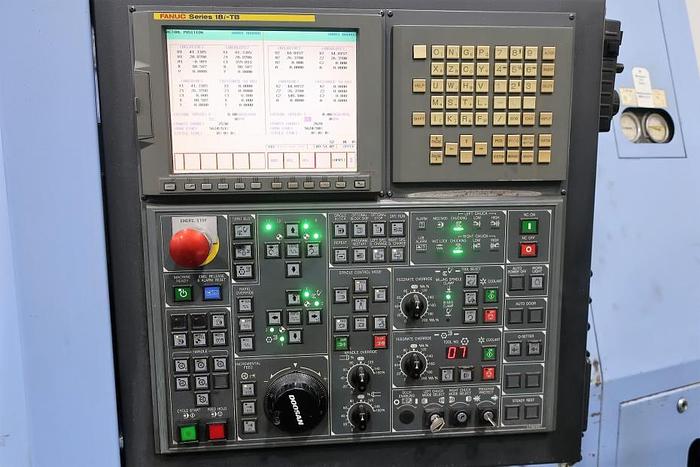

| Machine Control | Fanuc 18i-TB |

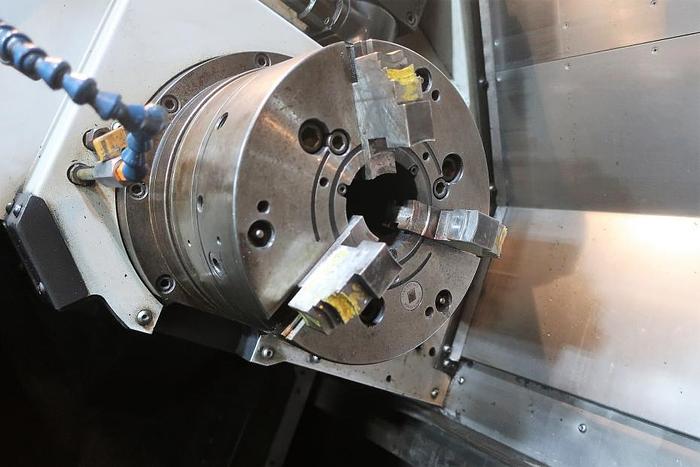

| Chuck Sizes Main / Subspindle | 10" / 3-J Collet Chuck |
| C-Axis Rotation | .001 Degrees Main & Subspindle |
| Maximum Swing | 29.5" |
| Maximum Swing over Bed | 29.5" |
| Maximum Turning Diameter | 21.7" |
| Maximum Turning Length | 40.2" |
| X-axis travel | 21.7" |
| Z-Axis Travel | 43.1" |
| Y-Axis Travel | 6.3" Head Travel |
| Spindle Nose / Bore / Bar Capacity | A2-8 / 2.99" / 2.5" |
| Milling Spindle Speed | 10,000 rpm |
| Main Spindle Speed / Sub Spindle Speed | 3,500 rpm / 3,500 rpm |

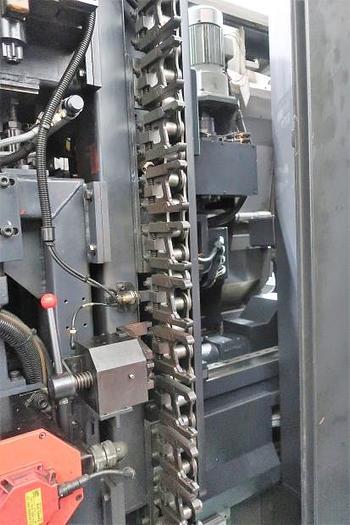

| Tool Magazine Capacity | 40 Position ATC |
| Lower Turret Tools Position | 12 |
| Lower Turret Live Tooling Speed | 5,000 RPM |
| Main Spindle Motor / Sub Spindle Motor | 35 hp / NA |
| Rapid Traverse Rates X, Y / Z | 1417 ipm, 1024 ipm / 1417 ipm |
| Machine Dimensions LxWxH | 178"x98"x102" |
| Machine Weight | 28,500 lbs |
