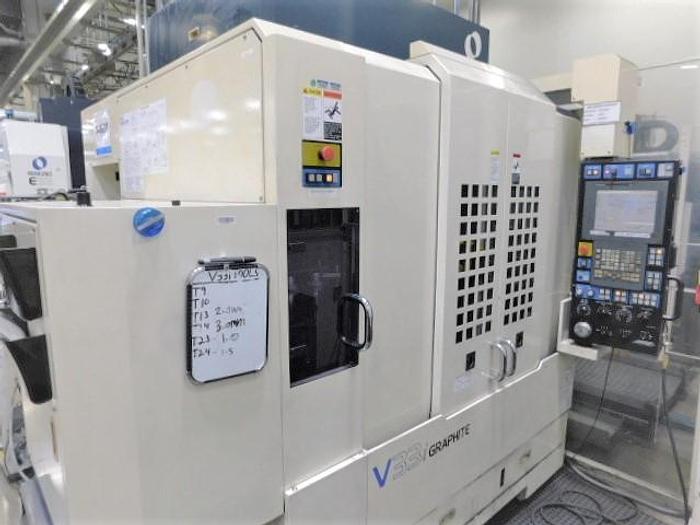

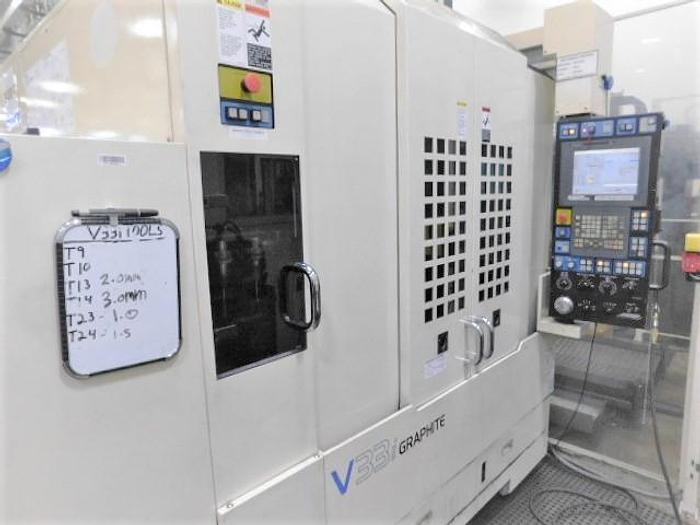

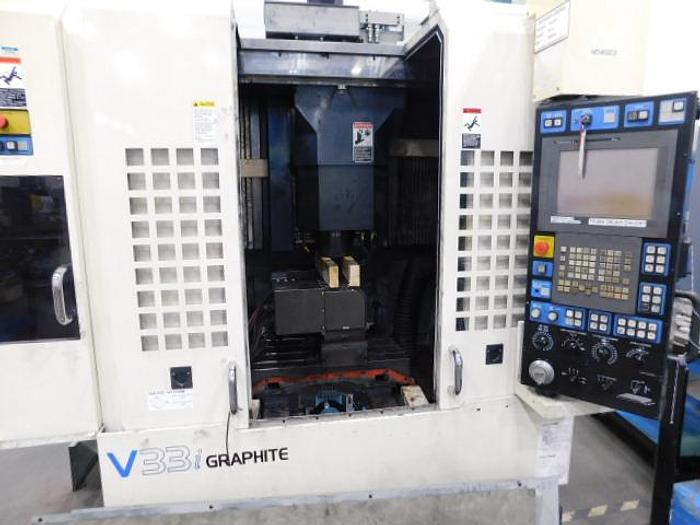

2008 Makino V33i Graphite 3+2 Type 5 Axis Mill
No longer available
2008 Makino V33i Graphite 3+2 Type 5 Axis Mill
$59,900 (USD)
Location:Illinois
Description
25 Station Side Mounted Tool Changer
30,000 RPM Spindle Option

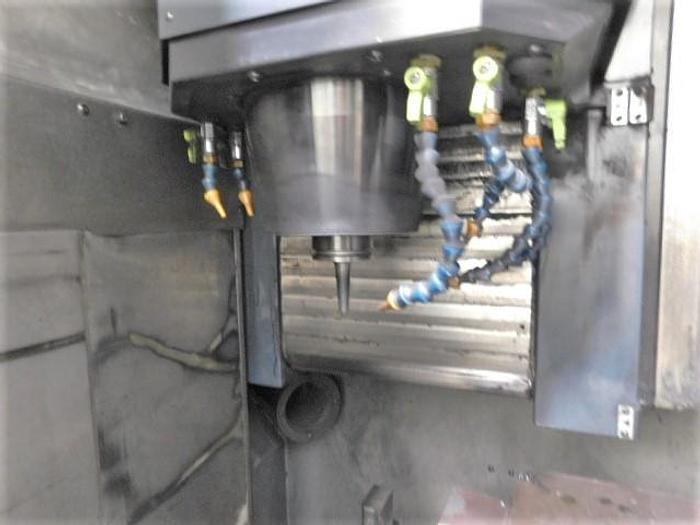

HSK-F63 Taper Spindle

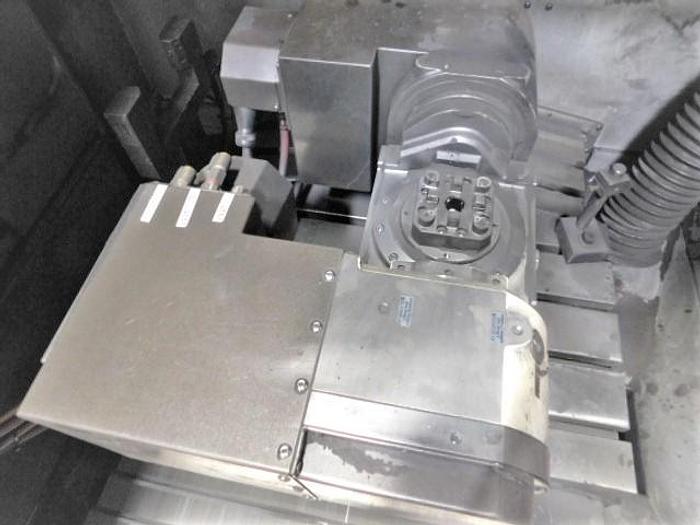

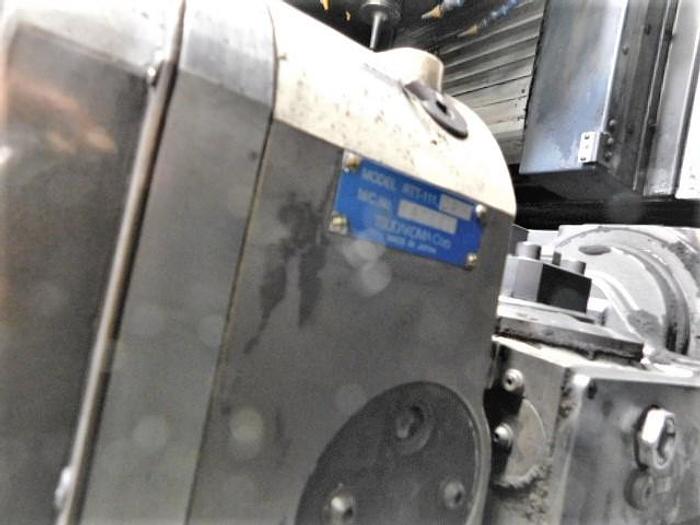

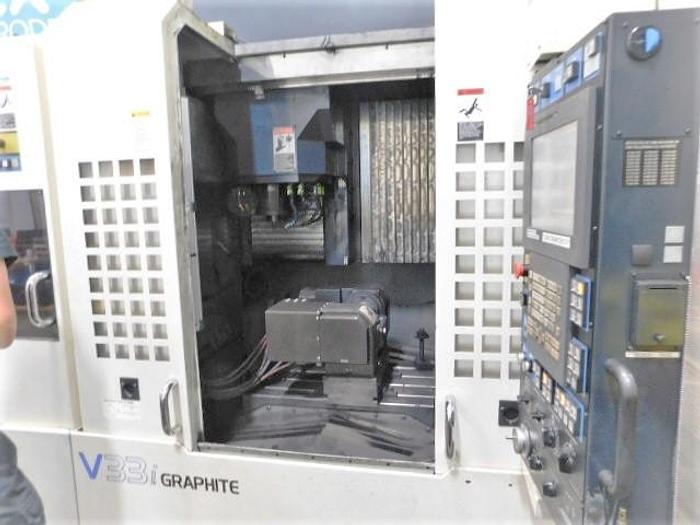

Tsudakoma RTT-111 Trunnion Style Table - Removable
4th Axis Drive & Wiring
5th Axis Drive & Wiring
Rigid Tapping
Scale Feedback - 0.05 Microns
Auto Air Blow Nozzle for Chips
Auto Air Blow thru Spindle
Coolant System
Auto Grease Lube
Thermal Guard

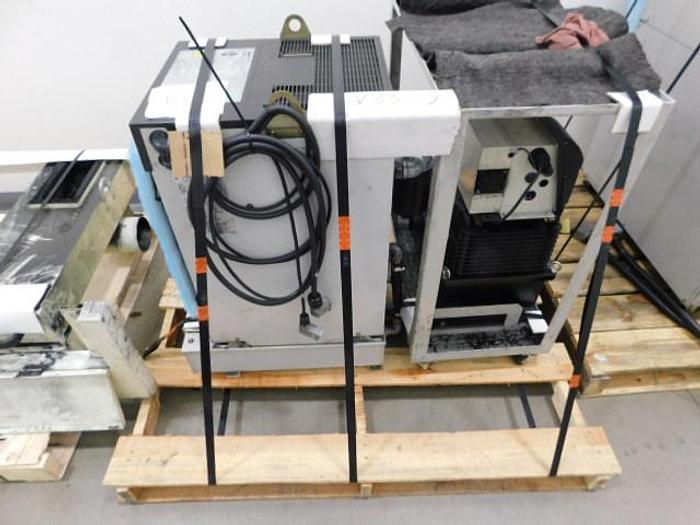

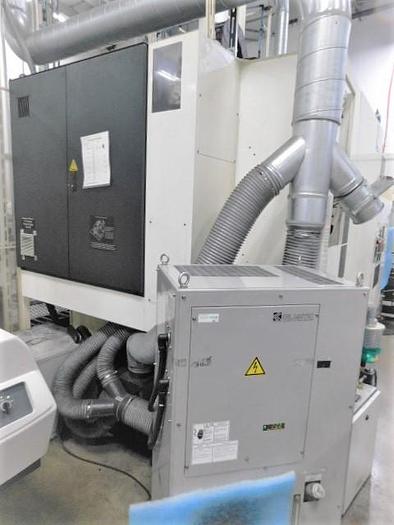

Spindle Chiller, Way Chiller, Ballscrew Chiller
Transformer
Helical Interpolation
Programmable Date Input

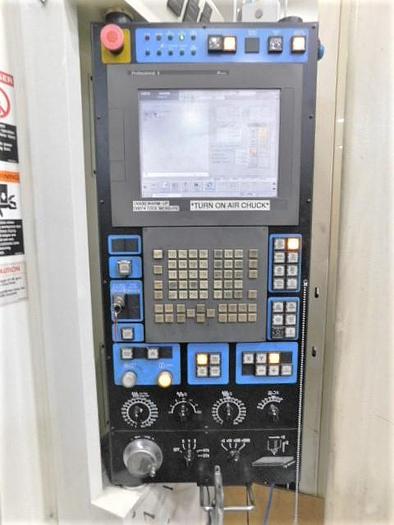

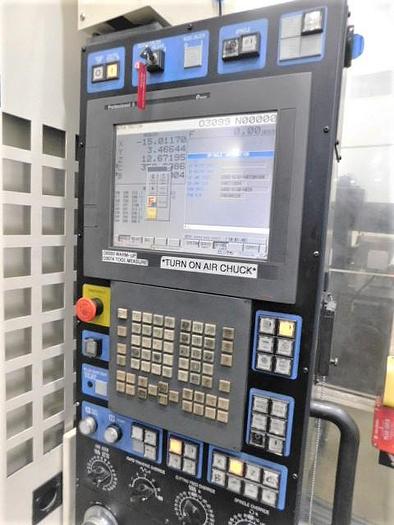

Super GI.4 Control
400 Block Look Ahead
Enhanced SGI.4 Capability
USB Port Interface
Flash Drive Interface
RS 232 Port Interface
Wired 460V / 3 PH Electrics
**Price New at $350,000 as equipped Today**
Specifications
| Manufacturer | Makino |
| Model | V33i Graphite 3+2 Type 5 Axis Mill |
| Year | 2008 |
| Condition | Used |
| Stock Number | 118929 |
| Control | Fanuc 30i Control |
| Table Size | 29.5" x 17.7" |
| Maximum Table Load | not available |
| X-Axis Travel | 25.6" |
| Y-Axis Travel | 17.7" |
| Z-Axis Travel | 13.7" |
| Spindle Speed | 30,000 RPM |
| Spindle Taper | HSK-F63 Taper |
| Spindle Motor | 22.8 HP |
| Tool Magazine Capacity | 25 Station Side Mounted ATC |
| Rapid Traverse Rates | 787 IPM |
| Distance Spindle Nose to Table Top | 5.9" - 16.9" |
| Maximum Tool Diameter / Length / Weight | 3.15" / 9.8" / 15.4 lbs |
| Machine Dimensions LxWxH | 91.7"x81.49"x94.4" |
| Machine Weight | 16,971 lbs. |
