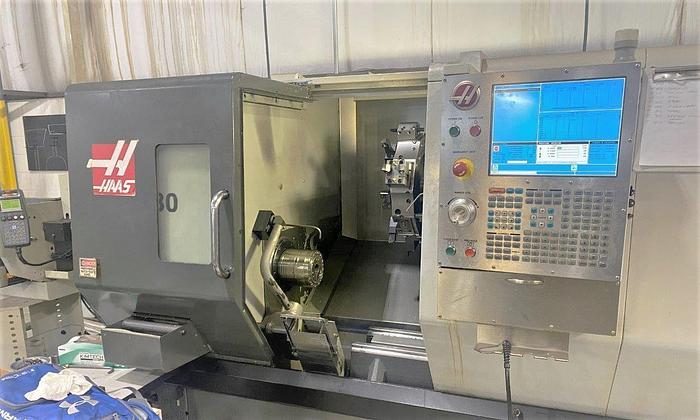

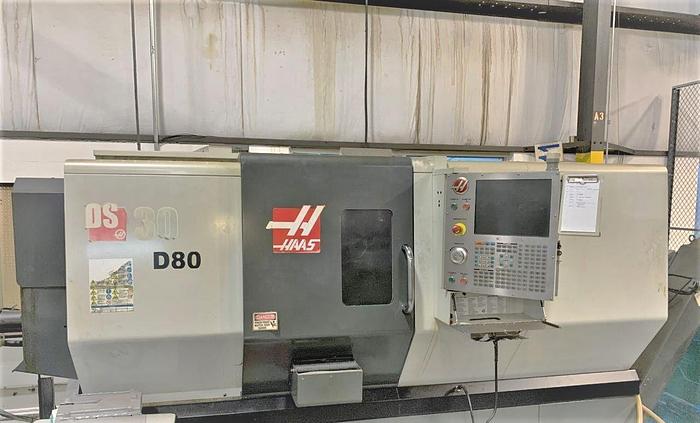

2013 Haas DS-30 Big Bore w/ Milling

Subspindle

Full C Axis Spindle Rotation

Live Milling / Drilling Capable

Big Bore Spindle Option with 3" Bar Capacity

Collet Chucks on both Main and Subspindle

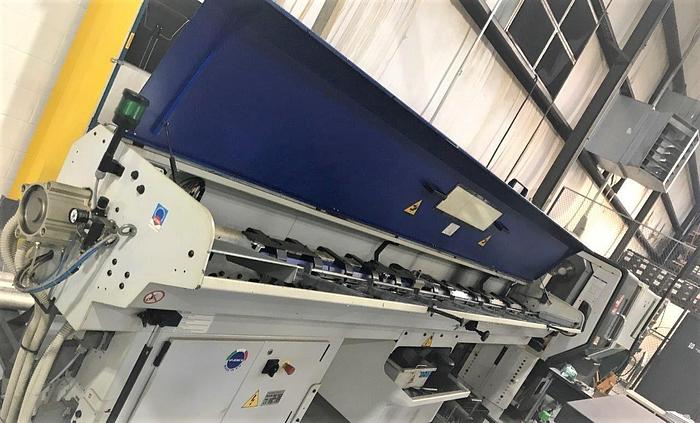

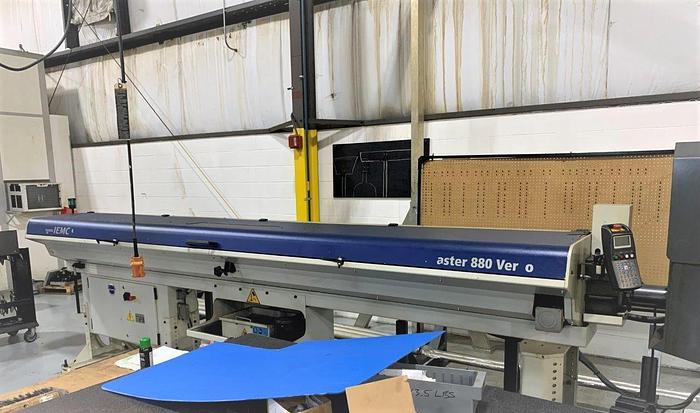

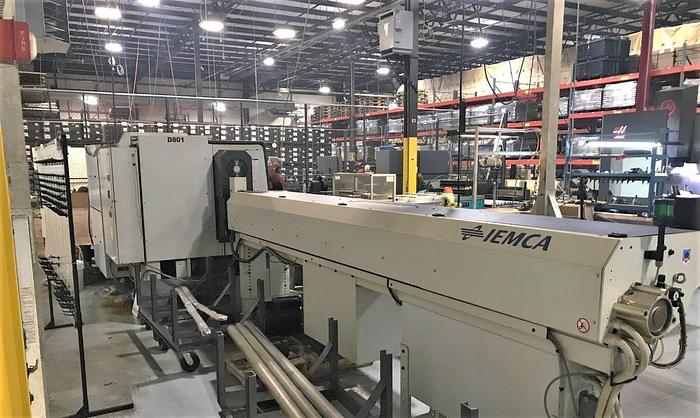

Iemca Master 880MP Barfeed System

12 Station Hybrid Turret (6 Bolt On/6 VDI)

Chip Conveyor

Automatic Parts Catcher

High Torque Live Tooling

Automatic Tool Presetter

USB Port Interface

RS 232 Port Interface

Rigid Tapping

Haas Intuitive Programming

Coolant System with Tank & Pump

All Available Manuals

The 2013 Haas DS-30 Big Bore with Milling is a robust CNC lathe designed for precision and versatility in industrial machining tasks. Equipped with Haas CNC Control, it features collet chucks on both main and subspindle, providing flexibility in handling various workpieces. It supports a maximum swing of 31.75 inches and a maximum cutting diameter of 16 inches, making it suitable for larger components. With a powerful 30 HP main spindle and a 20 HP subspindle, both capable of reaching speeds up to 4,000 RPM, this machine is built to handle demanding operations efficiently. The DS-30 offers substantial X and Z-axis travels of 12.5 inches and 23 inches respectively, enhancing its operational range. Additionally, the machine is equipped with a 12-station turret with a VDI/BOT configuration, increasing its versatility for complex machining processes. This CNC lathe supports quick movements with rapid traverse rates of 472 IPM on the X-axis and 1200 IPM on the Z-axis. With a substantial bar capacity of 3.03 inches and rotary tool speed of 4,800 RPM driven by a 5 HP motor, it ensures productivity and precision. The total weight of 14,600 lbs underscores its stable and durable construction, making it a valuable asset for any machining environment.
