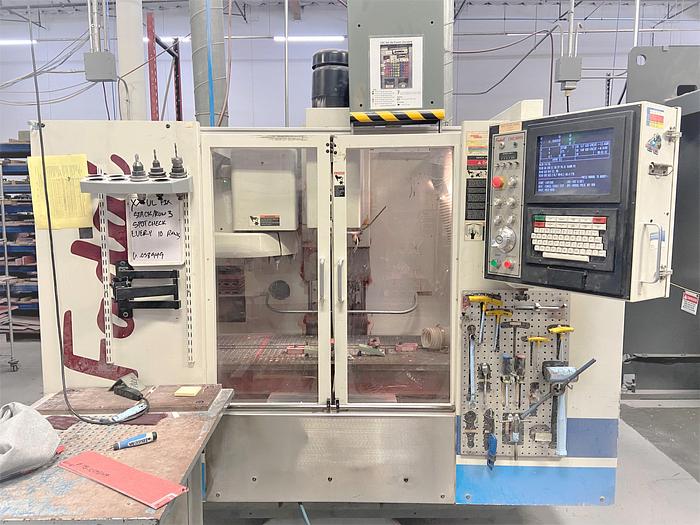

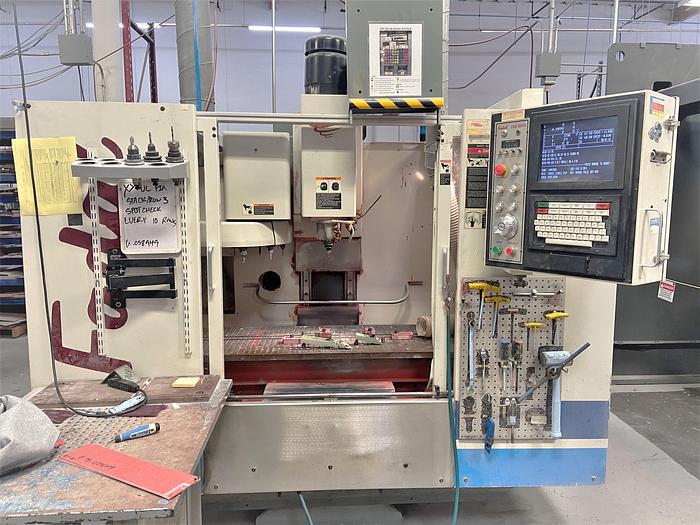

1999 Fadal VMC3016L
No longer available
1999 Fadal VMC3016L
$10,900 (USD)
Location:California
Description
21 Station Tool Changer
Rigid Tapping
Linear Guides RS 232 Port Interface

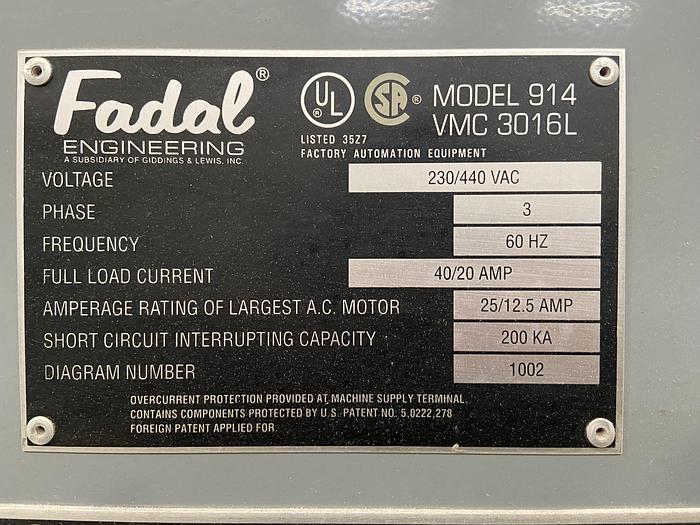

Wired 230V/440V Electrics
**This machine does not use coolant and does not have a coolant tank/pump**
Specifications
| Manufacturer | Fadal |
| Model | VMC3016L |
| Year | 1999 |
| Condition | Used |
| Stock Number | 118921 |

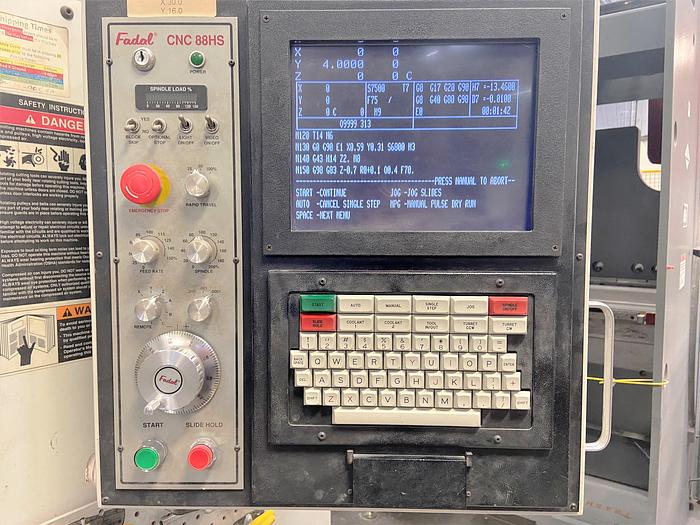

| Control | Fadal CNC88HS Control |
| Table Size | 38" x 16" |
| Maximum Table Load | 2,000 lbs. |
| X-Axis Travel | 30" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 20" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 10 - 7,500 RPM |
| Spindle Motor | 15 HP |
| Tool Magazine Capacity | 21 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 4.5" / 15" / 15 lbs |
| Rapid Traverse Rates (X, Y, Z) | 500 IPM |
| Machine Dimensions LxWxH | 90" x 77" x 104" |
| Machine Weight | 6,200 lbs. |
