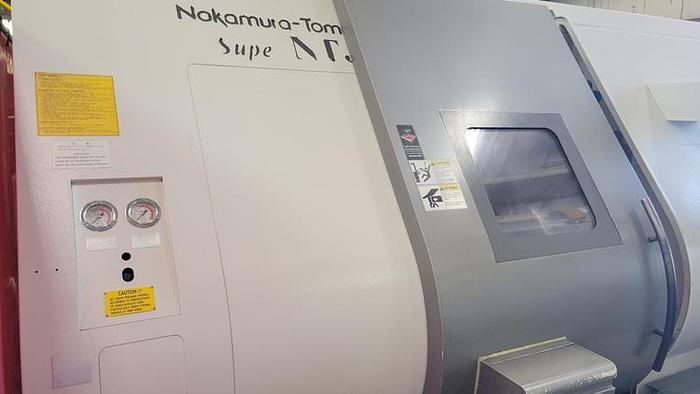

2007 Nakamura Tome Super NTJ 9 Axis CNC Mill/Turn Lathe
No longer available
2007 Nakamura Tome Super NTJ 9 Axis CNC Mill/Turn Lathe
$59,950 (USD)
Location:Washington, DC
Description
9 Axis Capability
Dual Spindle Design
Full C Axis Spindle Rotation (both)
Live Milling/Drilling Capability (both turrets)

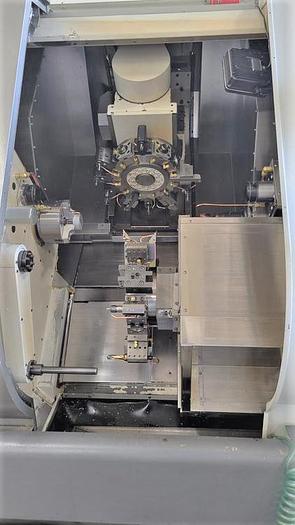

Dual Turret Design

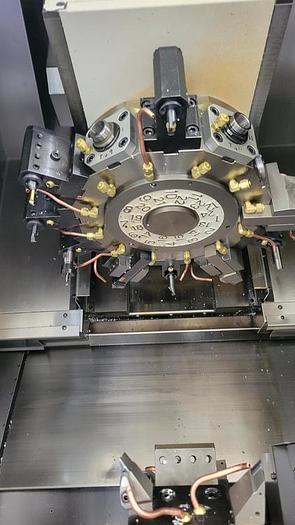

24 Station Upper Turret (12 Live)
24 Station Lower Turret (12 Live)
Pendulum Style B Axis Upper Turret
Y Axis Capability on Upper Turret
Chip Conveyor
Barfeed Interface ONLY

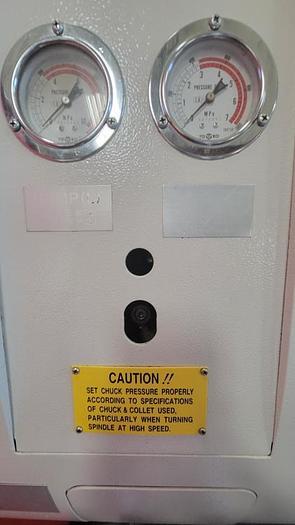

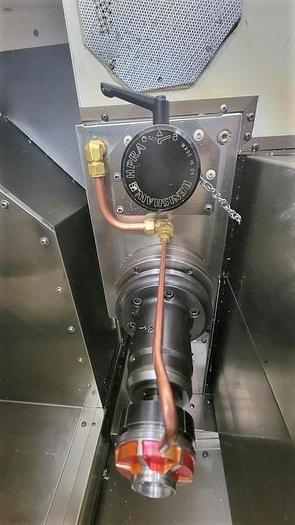

Hydraulic Chuck on Mainspindle

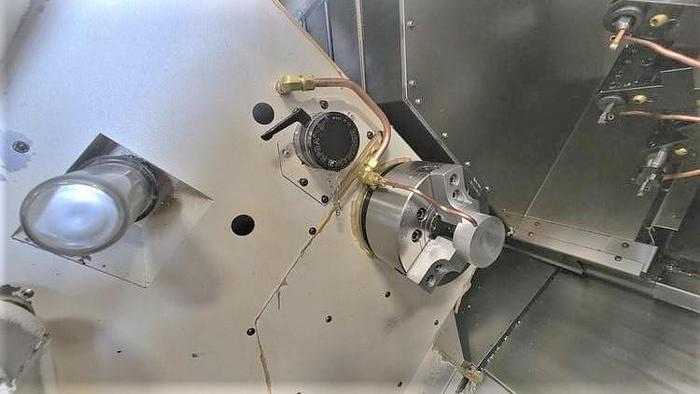

Collet Chuck on Subspindle

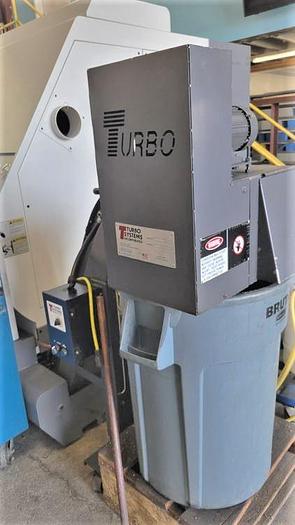

High Pressure Coolant System

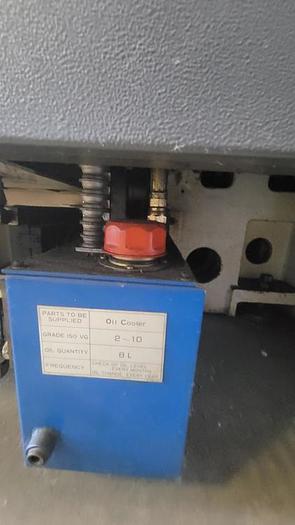

Spindle Chiller Unit

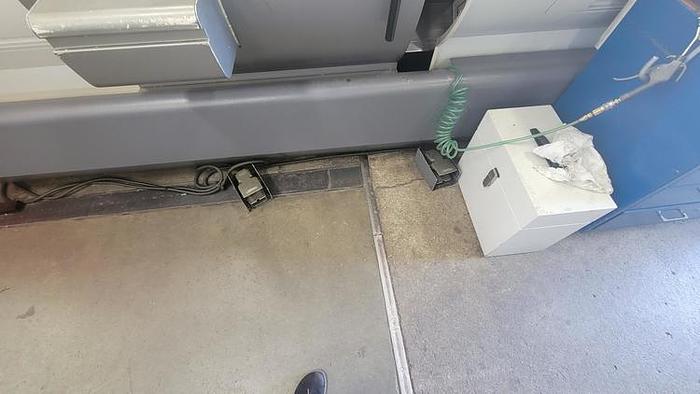

Dual Foot Switch Pedals
Card Interface
RS 232 Port Interface
**Chucks are not included, but can be available by negotiation**

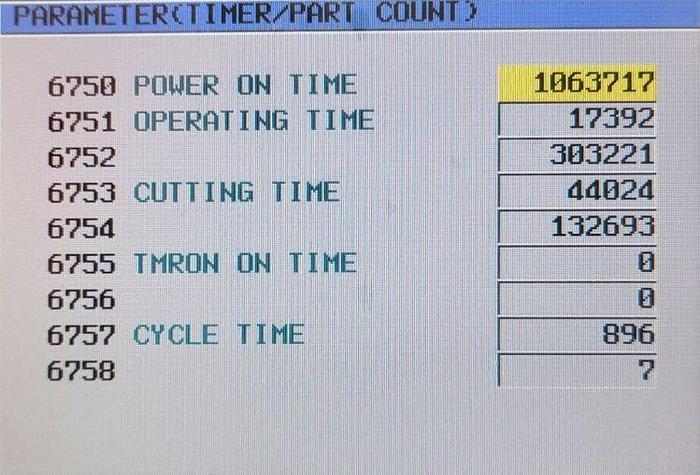

**Total Operation Hours ONLY 5,343**
**Total Cutting Hours ONLY 2,945**
**This machine is with its 2nd owner and he has finished his job that he had purchased it for**
Specifications
| Manufacturer | Nakamura Tome |
| Model | Super NTJ |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118916 |
| Machine Control | Fanuc 18i-T |
| Chuck size (2) | Hydraulic on main / Collet on subspindle |
| Maximum Swing Over Cross Slide | 7.48" |
| Maximum Turning Diameter | 7.48" |
| Maximum Turning Length | 24.41" |
| Maximum Bar Capacity Left / Right | 2.5" / 2.0" |
| Distance Between Spindles | 8.27" - 38.22" |
| X-Axis Travel X1 / X2 | 13.58" / 6.59" |
| Y-Axis Travel - Upper Turret only | +/- 1.77" (3.54") |
| Z-Axis Travel Z1 / Z2 | 48.82" / 26.97" |
| B-Axis Tilt Movement | -91 Degrees to +91 Degrees |
| C-Axis Spindle Rotation - Both | 0.001 Degrees |
| W axis travel (subspindle) | Not Available |
| Spindle Nose / Spindle Bore | A2-6" / 3.15" |
| Subspindle Nose / Subspindle Bore | A2-5" / 2.48" |
| Main & Subspindle Speeds | 4,500 RPM / 5,000 RPM |
| Spindle Motor Horsepower Left / Right | 20 HP / 15 HP |
| Upper Turret Milling Speed / HP | 6,000 RPM / 7.4 HP |
| Lower Turret Milling Speed / HP | 6,000 RPM / 7.4 HP |
| Number of Turret Positions - Upper Turret | 24 Stations (12 Live) |
| Number of Turret Positions - Lower Turret | 24 Stations (12 Live) |
| Rapid Traverse Rates X / Z | 630 IPM / 1575 IPM |
| Machine Dimensions | 156" x 94" x 89" |
| Machine Weight | 27,500 lbs. |
