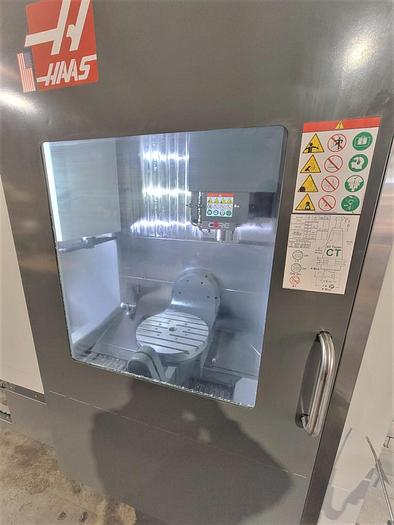

2018 Haas UMC-750SS
2018 Haas UMC-750SS
Location:California
Description

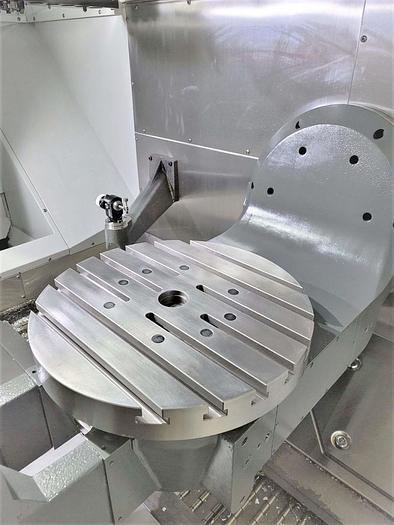

Trunnion Style 5th Axis Table
600 PSI Coolant Through the Spindle
Programmable Coolant Nozzle with a Custom Coolant System
Haas Wireless Probing Package
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Intuitive Programming System
Belt Chip Conveyor with Air Knife
40 Station Tool Changer
Custom Tool Changer with Air and Coolant Gun Saddles (extra 7 gallon air storage)
High Speed Machining
Rigid Tapping
Large Remote Jog Handle
Haas Cabinet Cooler
Through the Tool Air Blast
32 GB Programming Storage
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
All Available Manuals

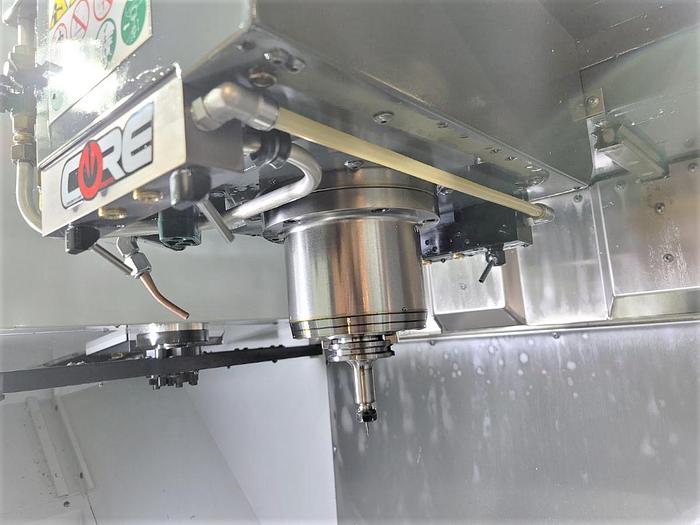

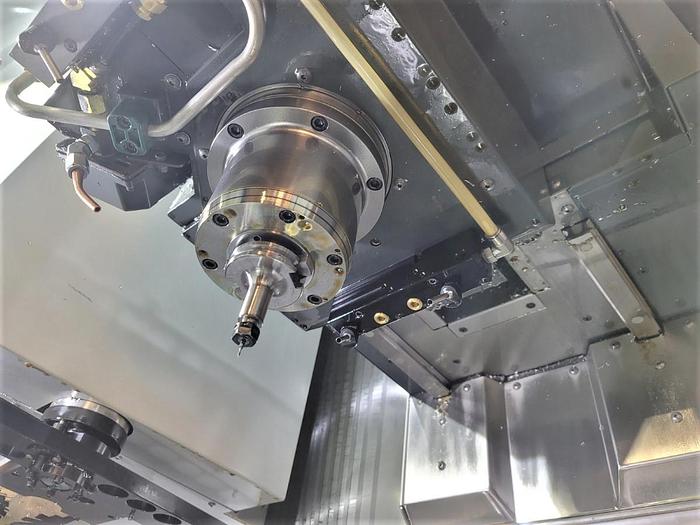

**Machine had new spindle installed in 2023 and has under 30 hours on it. Both B & C axis' brakes were rebuilt and new trunnion seals.
Specifications
| Manufacturer | Haas |
| Model | UMC-750SS |
| Year | 2018 |
| Condition | Used |
| Stock Number | 118911 |
| Table size | 19.7" x 24.8" |
| Table load capacity | 660 lbs |
| X axis travel | 30" |
| Y axis travel | 20" |
| Z axis travel | 20" |
| B axis rotate of trunnion | -35 Degrees to 110 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT #40 |
| Spindle speed | 15,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Tool magazine | 40 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 1200 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 157" x 94" x 101" |
| Machine weight | 19,100 lbs |
