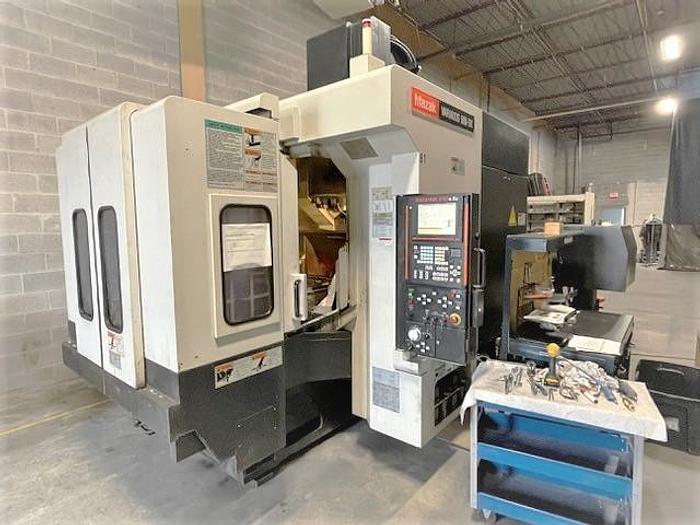

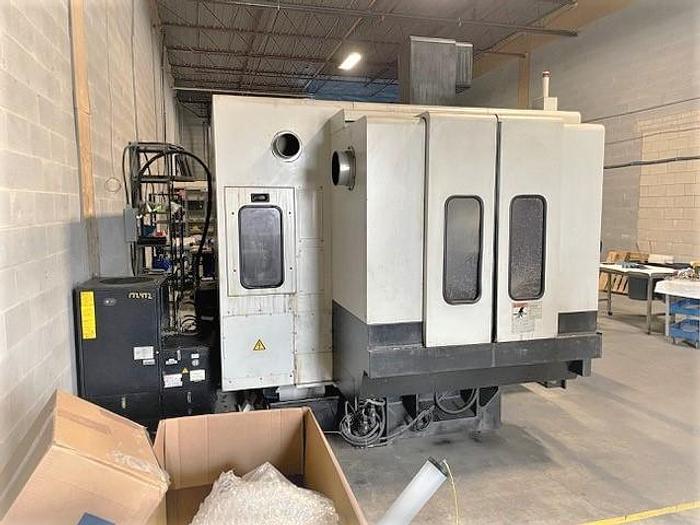

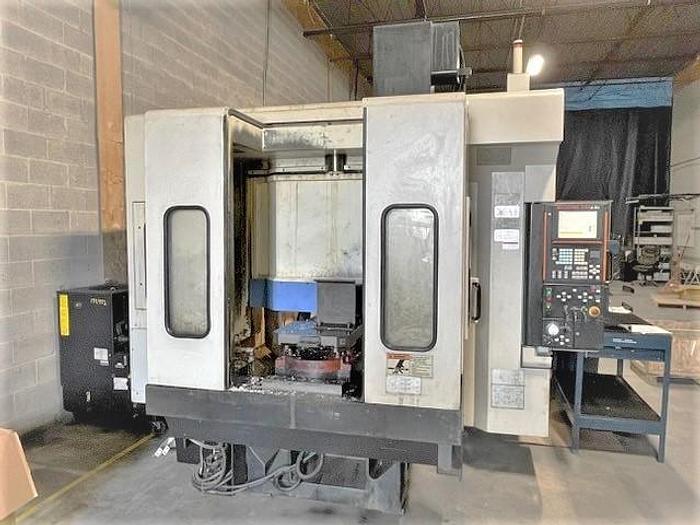

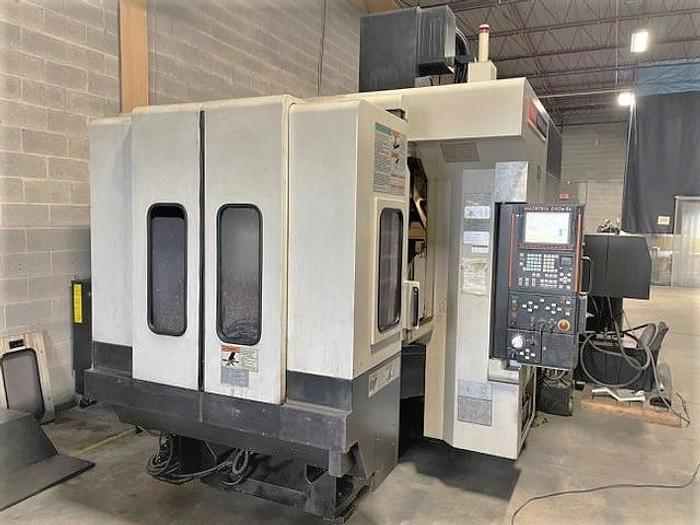

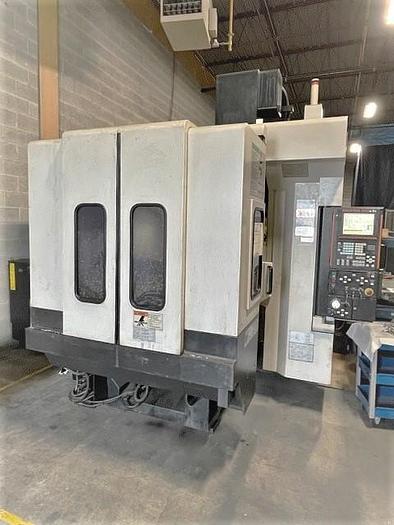

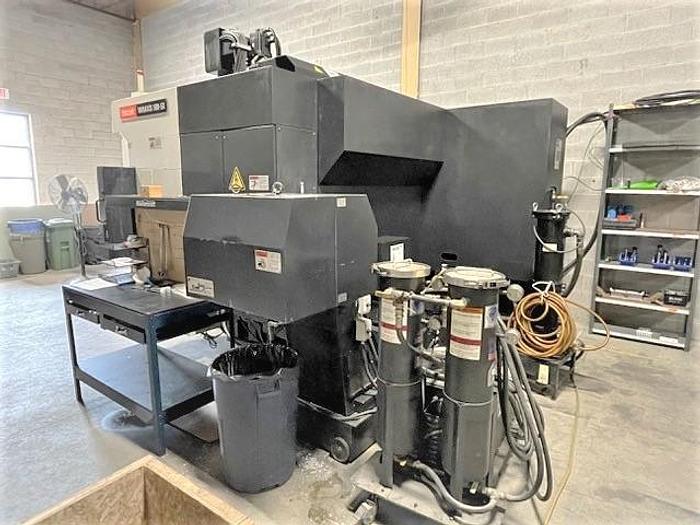

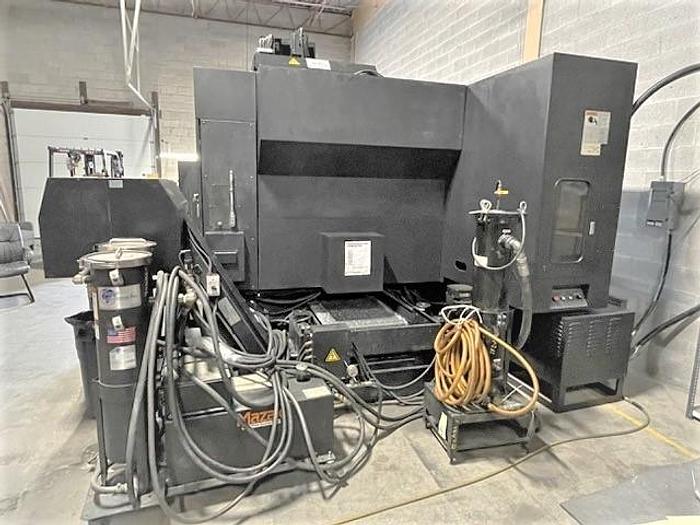

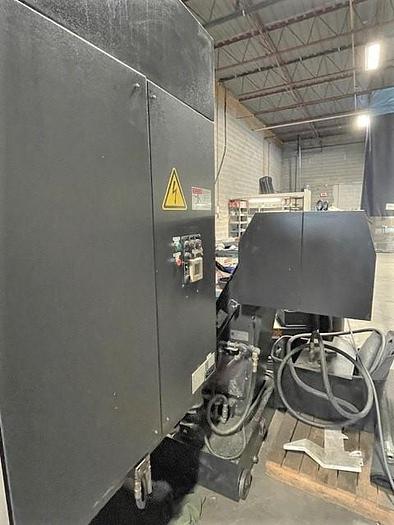

2004 Mazak Variaxis 500-5X with 2 Pallet Changer
2004 Mazak Variaxis 500-5X with 2 Pallet Changer
Location:Ontario, Canada
Description
Full 5 Axis with 0.001 Degree Positioning

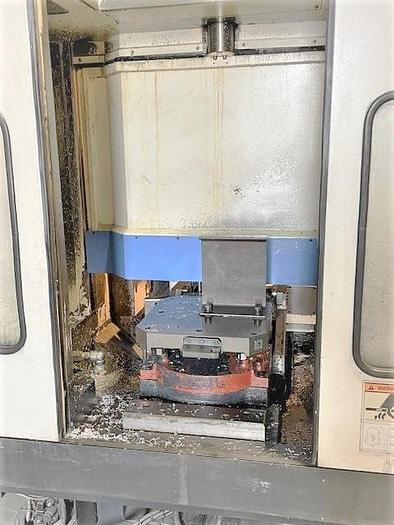

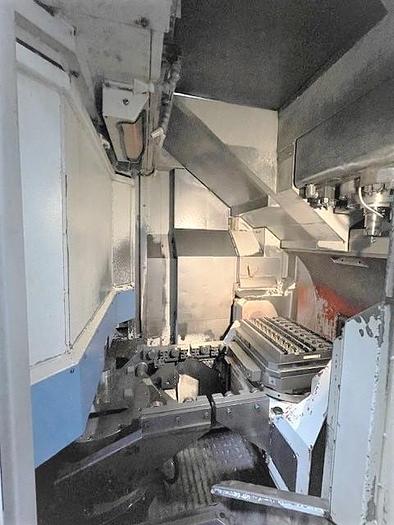

2 Pallet Changer

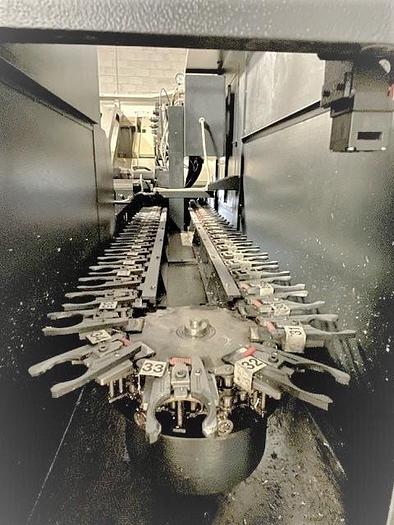

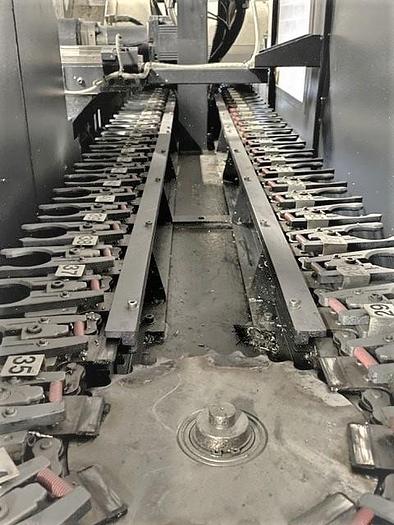

60 Station Tool Changer
Renishaw Part Touch Off Probing
Automatic Tool Length Measurement - Tool Probing
Chip Conveyor
High Pressure Coolant thru the Spindle
Rigid Tapping
Mazatrol Planetary Tapping
High Speed Machining

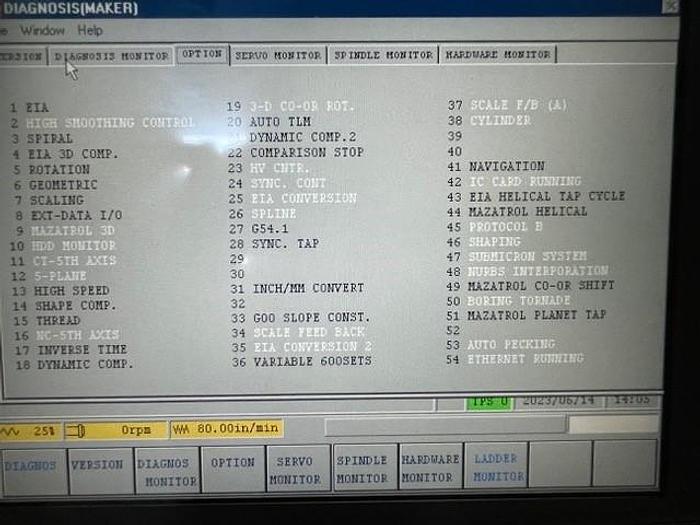

EIA/ISO Input Function
EIA 3D Compensation
EIA Helical Tap Cycle
G00 Slope Constant
Spiral Interpolation
Coordinate Rotation & Scaling
Geometric
External Data Input/Output
Shape Compensation
Threading
Inverse Time
Dynamic Compensation
Dynamic Compensation 2
Comparison Stop
G54.1
Inch/Metric Conversion
Variable 600 Sets
Navigation
Mazatrol Helical
Mazatrol Coordinate Shift

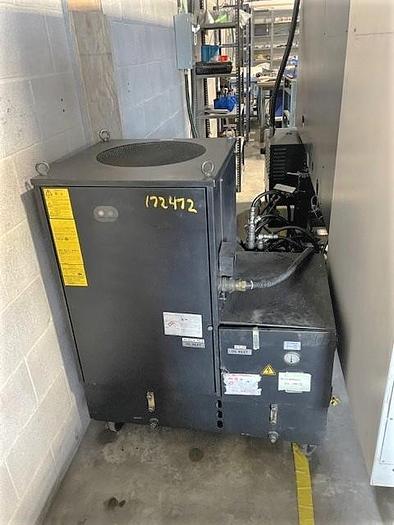

Chiller Unit
Multi Tap Transformer 230/460V Electrics
USB & LAN Port Interfaces
**Machine was manufactured new in December of 2004**

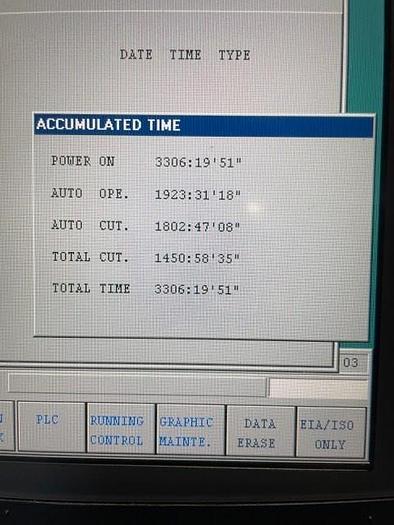

**Power On Hours 3,306**
**Total Cut Hours 1,450**
Specifications
| Manufacturer | Mazak |
| Model | Variaxis 500-5X with 2 Pallet Changer |
| Year | 2004 |
| Condition | Used |
| Stock Number | 118903 |

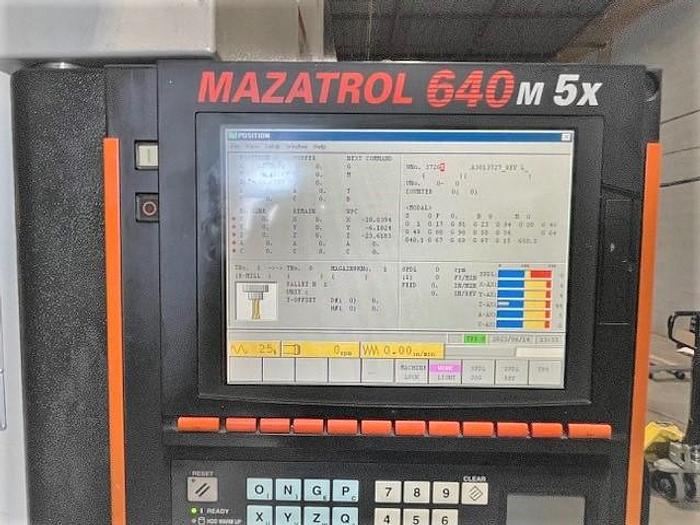

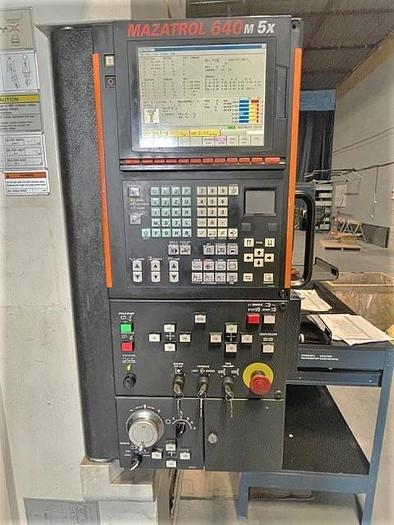

| Machine Control | Mazatrol Fusion 640M 5X Control |
| Table Size | 19.75" x 15.75" |
| Maximum Table Load | 661 lbs |
| Maximum Workpiece Size | 19"x15"x15" |
| X-axis travel | 20.08" |
| Y-Axis Travel | 20.08" |
| Z-Axis Travel | 18.11" |
| A-Axis Travel | -110 Deg. to + 30 Deg. Table Tilt |
| C-Axis Rotation | 360,000 Degrees |
| Distance Spindle Nose to Table Top | 7.48" to 25.59" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 12,000 RPM |
| Spindle Motor | 30 HP |
| Tool Magazine Capacity | 60 Station Tool Changer |
| Rapid Traverse Rates | 1,969 IPM |
| Machine Dimensions LxWxH | 110"x115"x109" |
| Machine Weight | 25,740 lbs |
