1995 Daewoo Puma 6S
No longer available
1995 Daewoo Puma 6S
$7,950 (USD)
Location:New Jersey
Description

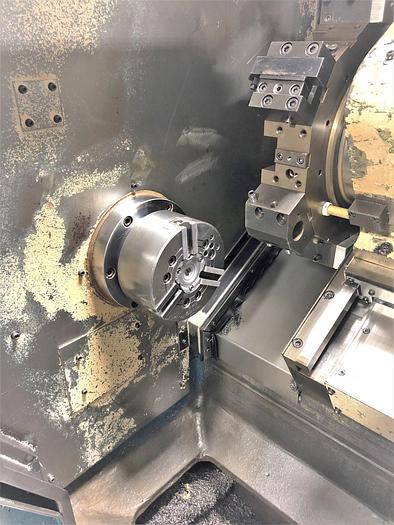

6" Kitagawa B-206 3 Jaw Hydraulic Chuck
Tailstock
Boxed Ways
RS 232 Port Interface
Wired 220V 3 Phase Power
All Available Manuals
Specifications
| Manufacturer | Daewoo |
| Model | Puma 6S |
| Year | 1995 |
| Condition | Used |
| Stock Number | 118902 |

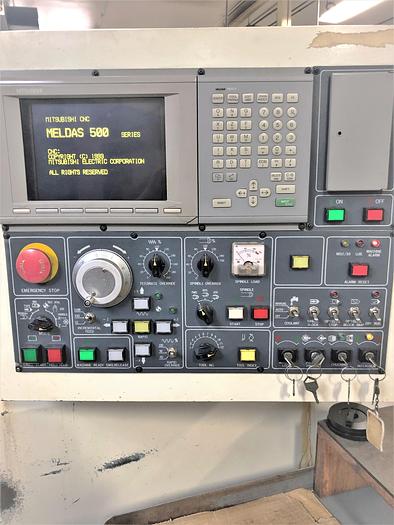

| Machine Control | Mitsubishi Meldas 500 Series Control |
| Chuck Size | 6" 3-Jaw Hydraulic |
| Maximum Swing over Bed | 19.7" |
| Maximum Cutting Diameter | 9.1" |
| Maximum Turning Length | 14.6" |
| Maximum Bar Capacity | 1.5" |
| X-Axis Travel | 7.9" |
| Z-Axis Travel | 15" |
| Spindle Nose / Bore / Bar Capacity | A2-5" / 1.8" / 1.5" |
| Spindle Speeds | 60 - 6,000 RPM |
| Spindle Motor | 20 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X/Z | 787 IPM / 945 IPM |
| Tailstock Taper / Quill Stroke | MT #3 / 3.9" |
| Machine Dimensions LxWxH | 91" x 59" x 64" |
| Machine Weight | 8,140 lbs. |
