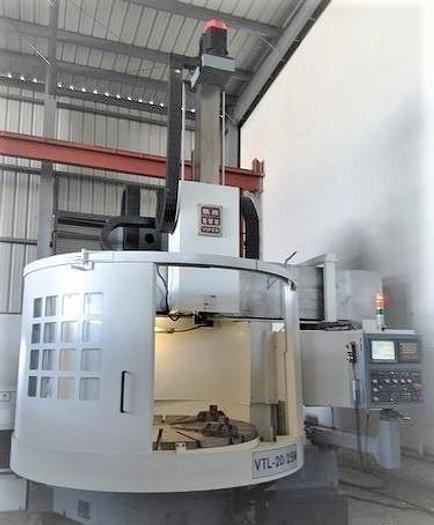

2011 Mighty Viper VTL-20/25M
No longer available
2011 Mighty Viper VTL-20/25M
Location:Arizona
Description
C Axis Table Rotation
Live Milling/Drilling Capability

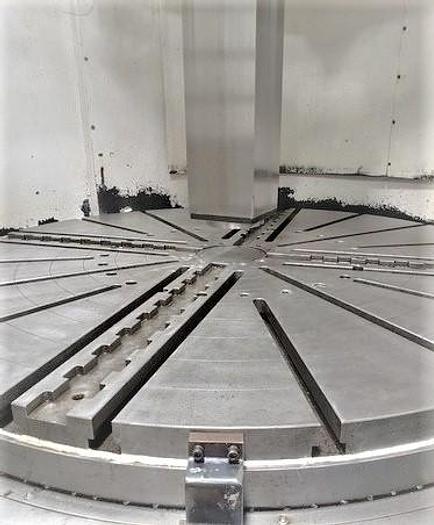

78.74" Diameter T-Slotted Table with 4 Face Plate Jaws
18 Station Tool Changer (9 Turning / 9 Milling)
Side Discharge Chip Conveyor
Coolant System with Tank & Pump
Remote Jog Handle
3 Color Machine Status Condition Lights
Card Interface
RS 232 Port Interface
Miscellaneous Static Tool Holders
All Available Manuals
Specifications
Manufacturer | Mighty |
Model | Viper VTL-20/25M |
Year | 2011 |
Condition | Used |
Stock Number | 118896 |

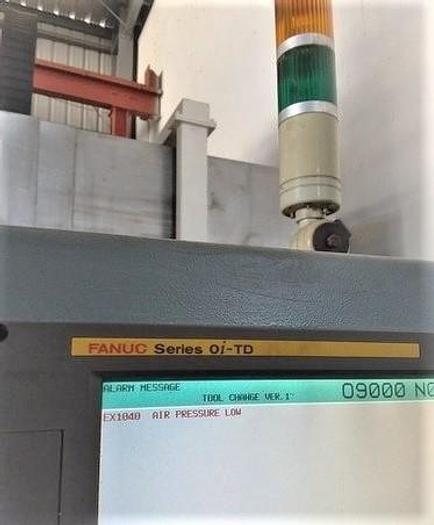

Control | Fanuc 0i-TD |
Table Diameter | 78.74" |
Maximum Table Load | 44,000 lbs. |
Maximum Turning Diameter | 96" |
Maximum Turning Height | 59" |
Cross Rail Stroke | 31.49" |
RAM Size | 9.06" x 9.06" |
X-Axis Travel | 70.27" |
Z-Axis Travel | 47.24" |
C Axis Table Rotation | .001 Degree |
Table Speed | 1 - 200 RPM - 2 Ranges |
Table Motor | 60 HP |
Live Tool Taper | #50 Taper Big Plus |
Live Tool Speeds | 1,200 RPM |
Live Tool Motor | 20 HP |
Number of Tool Positions | 18 Station Tool Changer |
Maximum Tool Diameter / Length | 11" / 19.7" |
Rapid Traverse Rates X / Z | 472 IPM / 393 IPM |
Cutting Feedrates | 0.04 - 141 IPM |
Machine Dimensions LxWxH | 209" x 168" x 225" |
Machine Weight | 69,000 lbs. |
