2015 Mighty Viper VTL-20/25M CNC VTL with milling capability
No longer available
2015 Mighty Viper VTL-20/25M CNC VTL with milling capability
$425,000 (USD)
Location:California
Description
C Axis Table Rotation
Live Milling/Drilling Capability
78.74" Diameter T-Slotted Table with 4 Face Plate Jaws
18 Station Tool Changer (9 Turning / 9 Milling)
Side Discharge Chip Conveyor
Prepped for High Pressure Through Spindle Coolant
Coolant System with Tank & Pump
Remote Jog Handle
3 Color Machine Status Condition Lights
Card Interface
RS 232 Port Interface

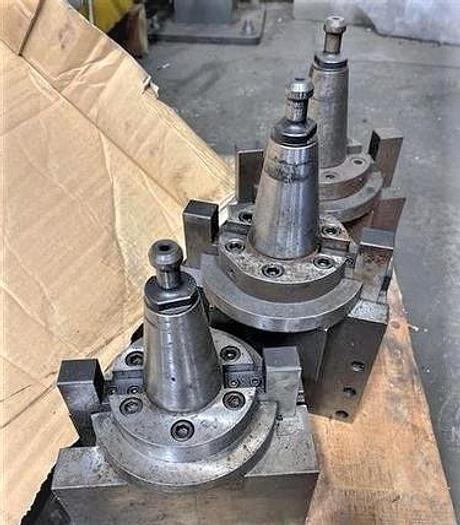

Miscellaneous Static Tool Holders
All Available Manuals
208V / 3 Phase Electrics

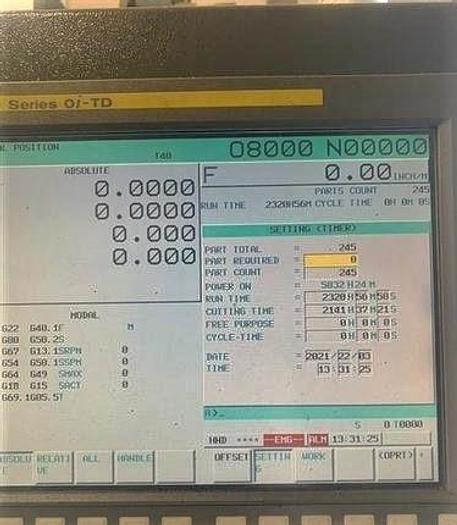

**ONLY 2,320 Run Time Hours**
**ONLY 2,141 Cutting Hours**
Specifications
| Manufacturer | Mighty |
| Model | Viper VTL-20/25M |
| Year | 2015 |
| Condition | Used |
| Stock Number | 118895 |

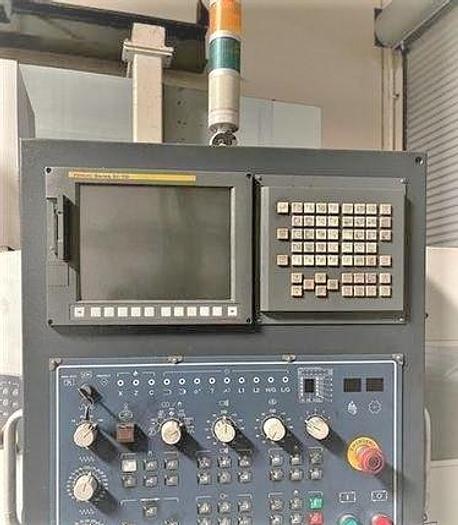

| Control | Fanuc 0i-TD |
| Table Diameter | 78.74" |
| Maximum Table Load | 44,000 lbs. |
| Maximum Turning Diameter | 96" |
| Maximum Turning Height | 59" |
| Cross Rail Stroke | 31.49" |
| RAM Size | 9.06" x 9.06" |
| X-Axis Travel | 70.27" |
| Z-Axis Travel | 47.24" |
| C Axis Table Rotation | .001 Degree |
| Table Speed | 1 - 200 RPM - 2 Ranges |
| Table Motor | 60 HP |
| Live Tool Taper | #50 Taper Big Plus |
| Live Tool Speeds | 1,200 RPM |
| Live Tool Motor | 20 HP |
| Number of Tool Positions | 18 Station Tool Changer |
| Maximum Tool Diameter / Length | 11" / 19.7" |
| Rapid Traverse Rates X / Z | 472 IPM / 393 IPM |
| Cutting Feedrates | 0.04 - 141 IPM |
| Machine Dimensions LxWxH | 209" x 168" x 225" |
| Machine Weight | 69,000 lbs. |
