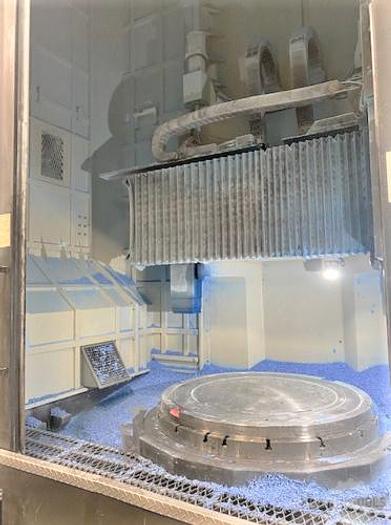

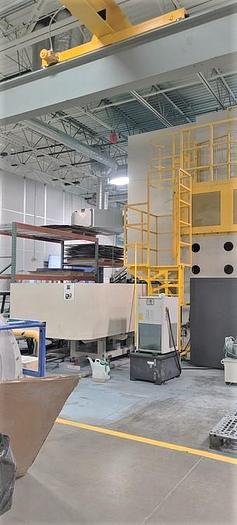

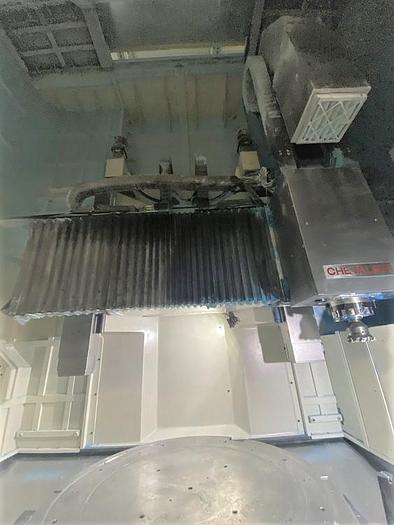

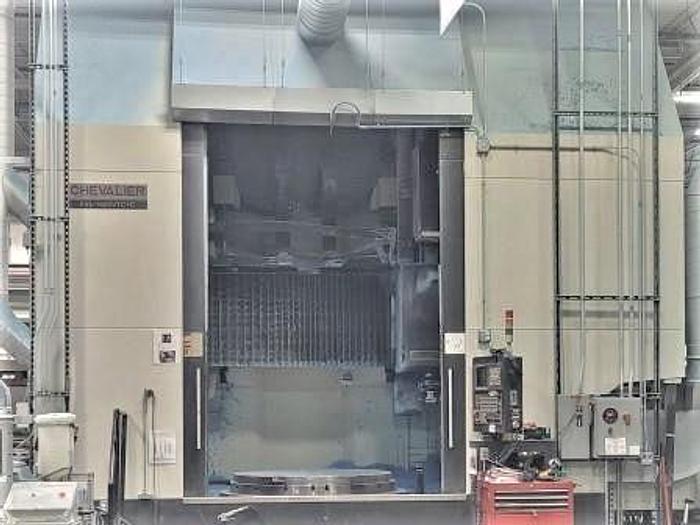

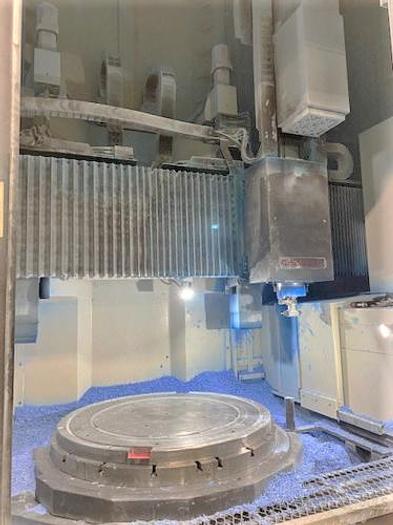

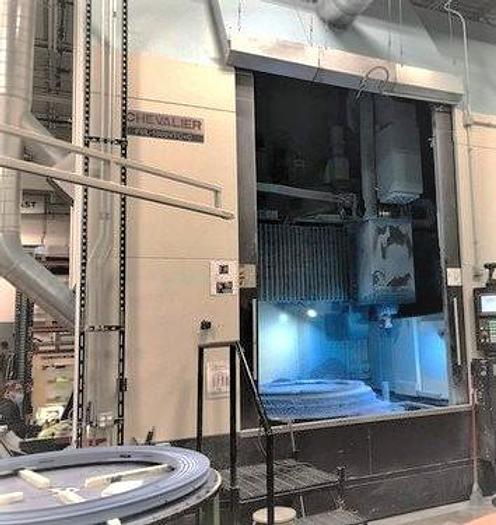

2015 Chevalier FVL-1600VTC+C CNC VTL with Milling
2015 Chevalier FVL-1600VTC+C CNC VTL with Milling
$229,500 (USD)
Wisconsin
Description
C Axis Table Rotation
Live Milling/Drilling Capability

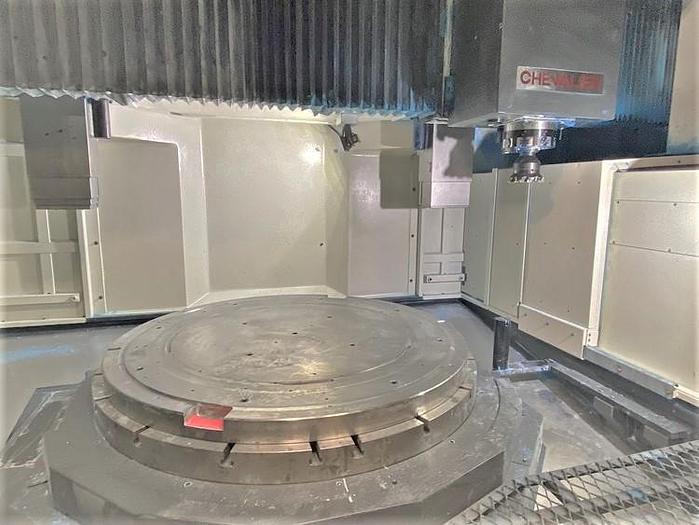

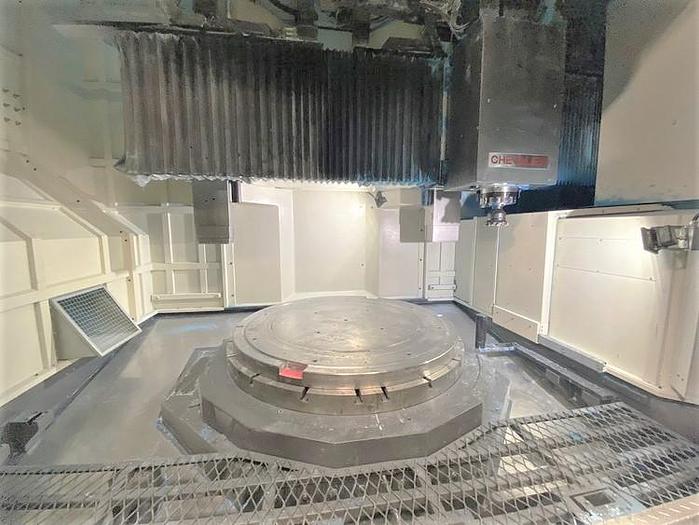

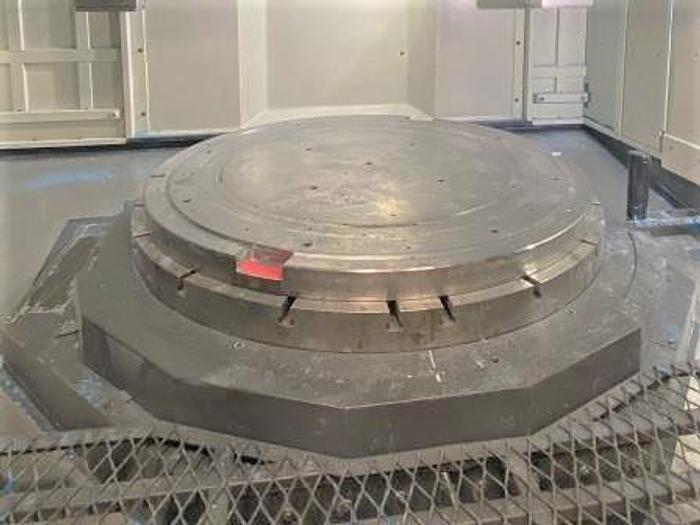

63" 4 Jaw Table Diameter
48 Station Tool Changer
Renishaw Wireless Part Probe and Tool Setter Probe System
Rotary Scale System with Position Accuracy fo 15 Arc Seconds

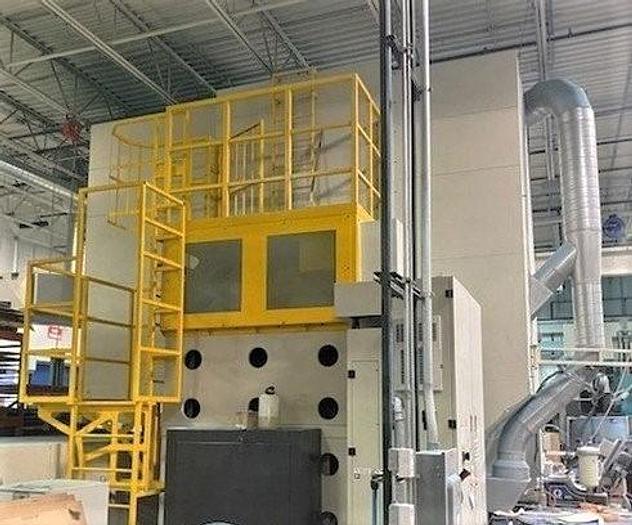

Full Enclosure Roof Cover
Helical/Circular Threading Fanuc Option
Enhanced Way Cover/Proximity Switch and Ballscrew Protection

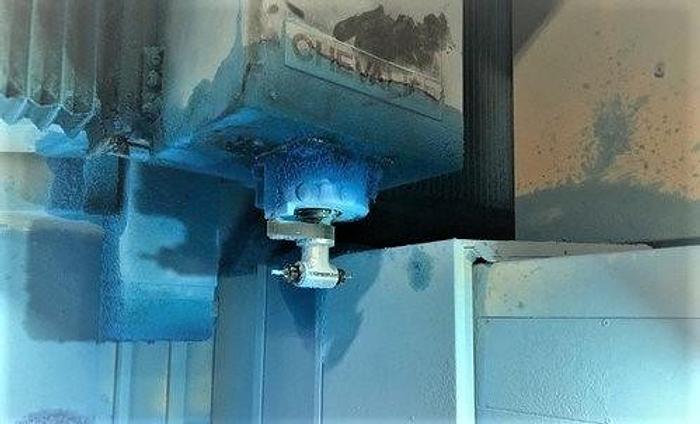

Alberti Right Angle Head Tool with 8,000 RPM Capability
Side Discharge Chip Conveyor
Plumbed for Coolant
Prepped for Through Spindle Coolant
Auto Doors
Auto Power Off
128 Tool Offsets
(6) Sets of Work Coordinate
Rear Flush System

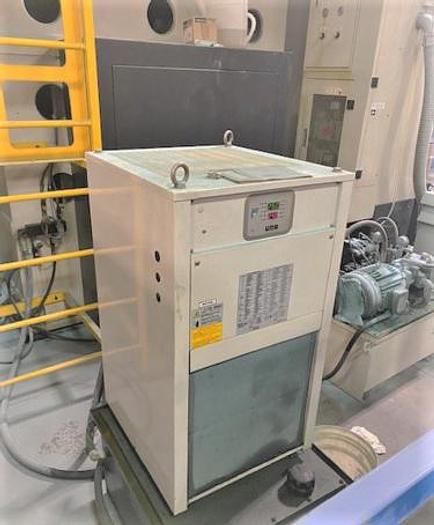

Spindle Chiller
Remote Jog Handle
Work Lights

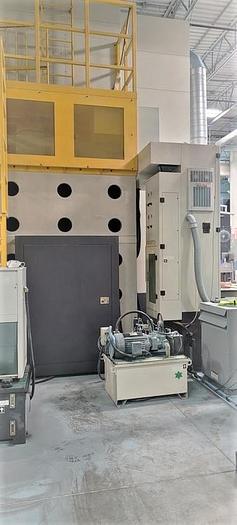

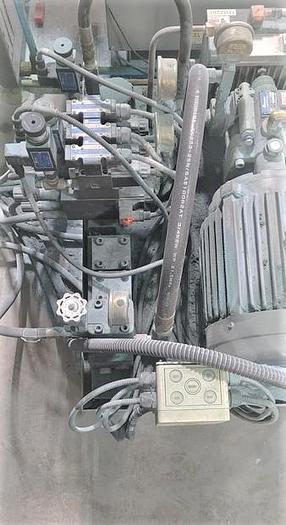

Hydraulic System

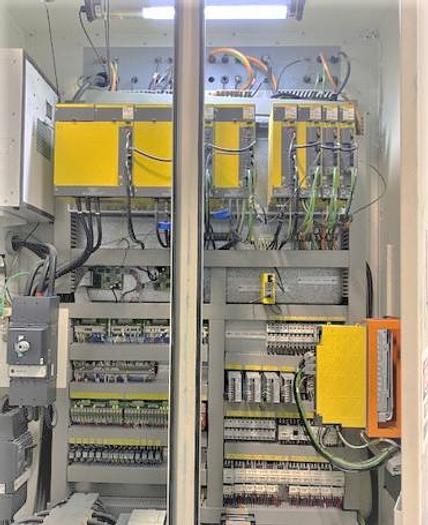

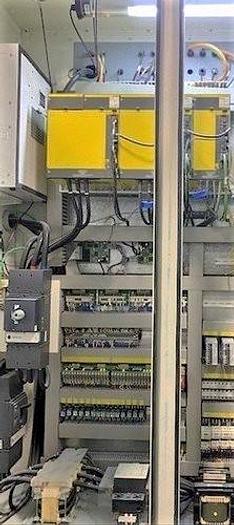

Air Conditioned Electrical Cabinets
RS 232 Port Interface
All Available Static Tool Holders
All Available Manuals
**Machine was being used to cut plastic**
Specifications
| Manufacturer | Chevalier |
| Model | FVL-1600VTC+C CNC VTL with Milling |
| Year | 2015 |
| Condition | Used |
| Stock Number | 118893 |

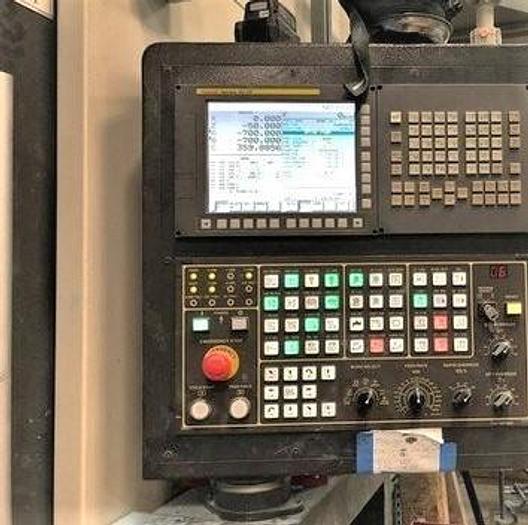

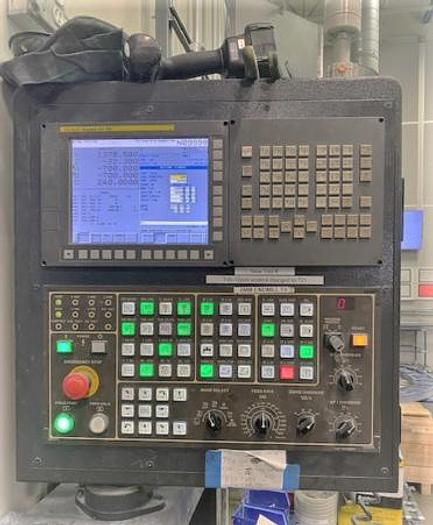

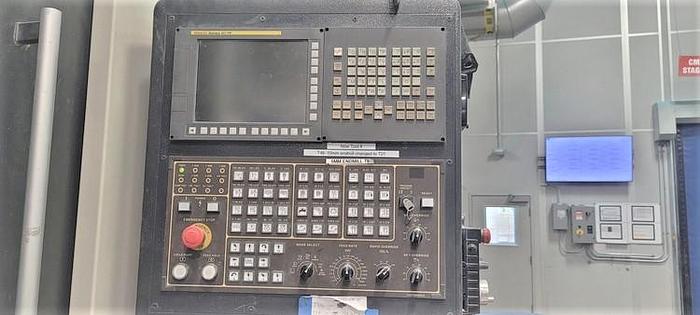

| Control | Fanuc 0i-TF |

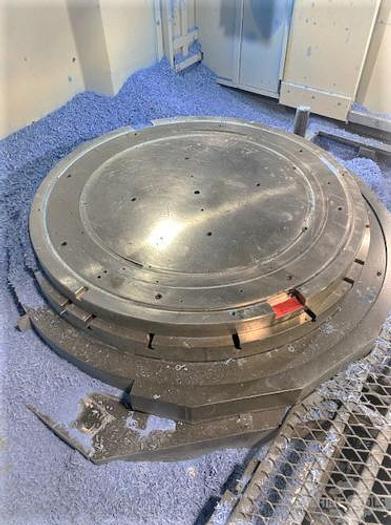

| Table Diameter | 63" 4 Jaw Chuck |
| Maximum Table Load | 22,000 lbs. |
| Maximum Turning Diameter | 78.7" |
| Maximum Turning Height | 53" |
| Maximum Distance Between Spindle Nose and Table | 60.2" |
| X-Axis Travel | -33.1" to +45.7" (78.8") |
| Z-Axis Travel | 35.4" |
| C Axis Table Rotation | .001 Degree |
| Table Speed | 250 RPM |
| Table Motor | 60 HP |
| Live Tool Taper | CAT #50 Taper |
| Live Tool Speeds | 25 - 2,500 RPM |
| Live Tool Motor | 20 HP |
| Number of Tool Positions | 48 Station Tool Changer |
| Maximum Tool Diameter / Length | 11" / 19.7" |
| Rapid Traverse Rates | 393 IPM |
| Machine Dimensions LxWxH | 284" x 248" x 226.4" |
| Machine Weight | Not Available |
