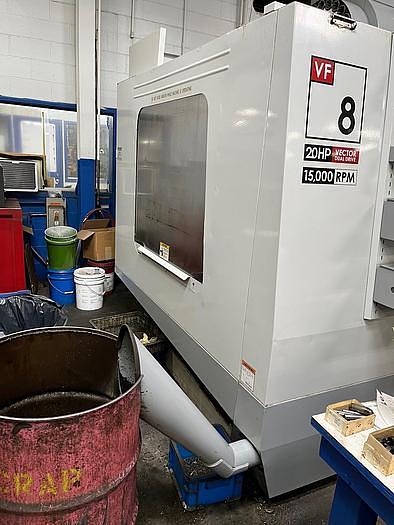

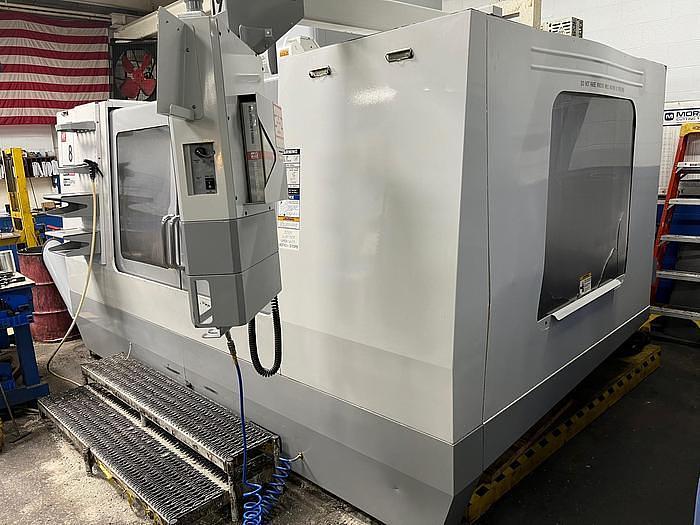

2005 Haas VF8/40
![Used 2005 Haas VF8/40](https://i.machineryhost.com/a5771bce93e200c36f7cd9dfd0e5deaa/422cb26873a0af4247c7c861672e1892/large-used-2005-haas-vf-8-40.jpg)
No longer available
2005 Haas VF8/40
Location:Ohio
Description

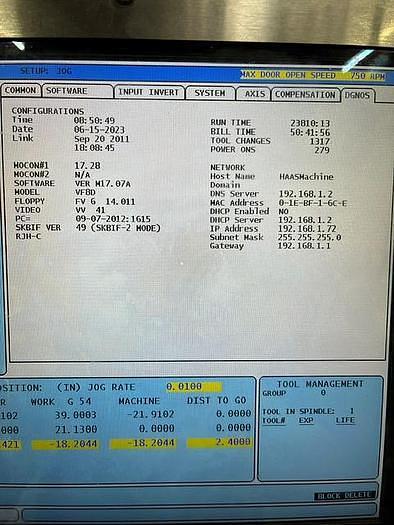

Control & Software Upgraded
24 Station Side Mounted Tool Changer
Rigid Tapping
Chip Auger Conveyor
Remote Jog Handle
Programmable Coolant Nozzle
16MB Memory
Ethernet
Auto Air Gun
2 Speed Gearbox
Memory Key Lock Switch
All Available Manuals
Spindle has been replaced in the last two years along with X & Y axis balscrews and thrust bearings
Specifications
Manufacturer | Haas |
Model | VF8/40 |
Year | 2005 |
Condition | Used |
Stock Number | 118891 |

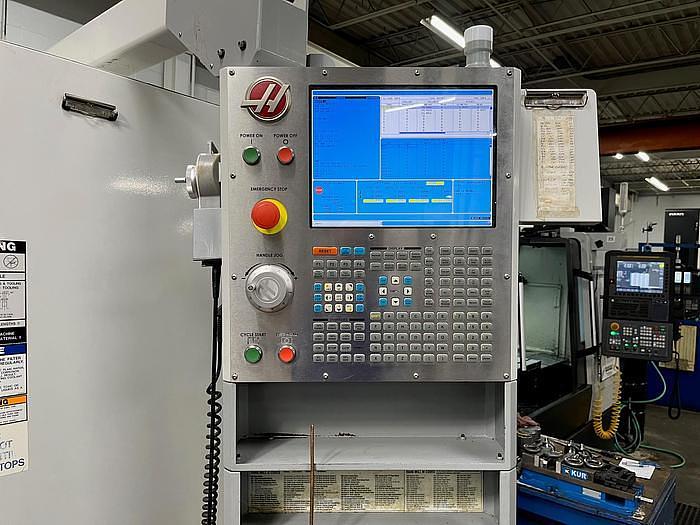

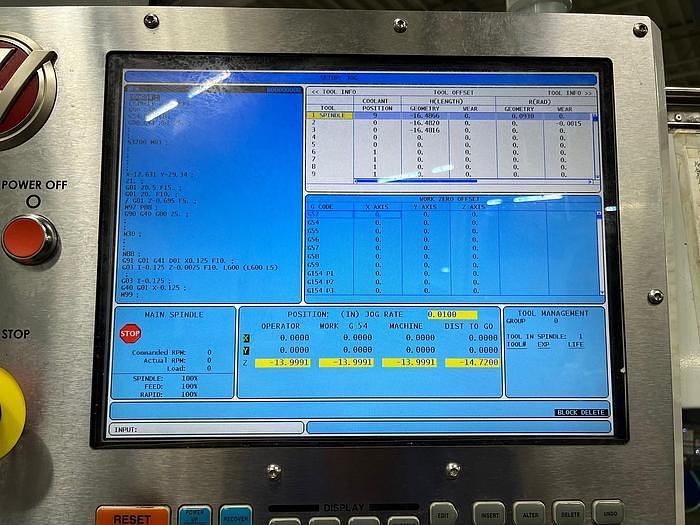

Machine Control | Haas 32 BIT |

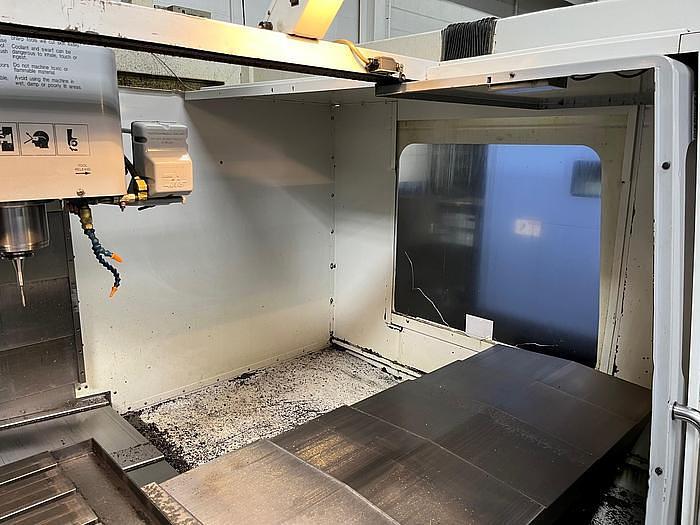

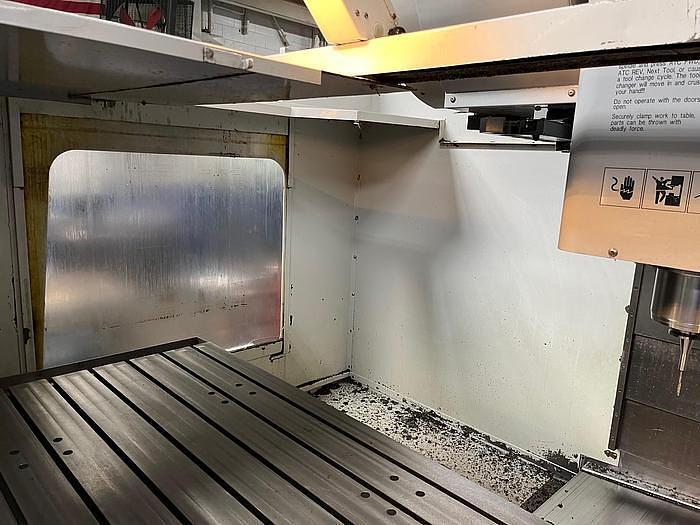

Table size | 64"x36" |
Maximum Table Load | 4,000 lbs |
X-Axis Travel | 64" |
Y-Axis Travel | 40" |
Z-Axis Travel | 30" |
Spindle Taper | CAT 40 |
Spindle Motor | 20 HP |
Spindle Speeds | 15,000 RPM |
Distance Spindle Nose to Table Top | 5" - 35" |
Tool Magazine Capacity | 24 Position Side Mount |
Maximum Tool Diameter / Weight | 5.3" / 25 lbs. |
Rapid Traverse Rates X / Y, Z | 540 IPM / 600 IPM |
Machine Dimensions LxWxH | 156"x139"x129" |
Machine Weight | 24,000 lbs. |
