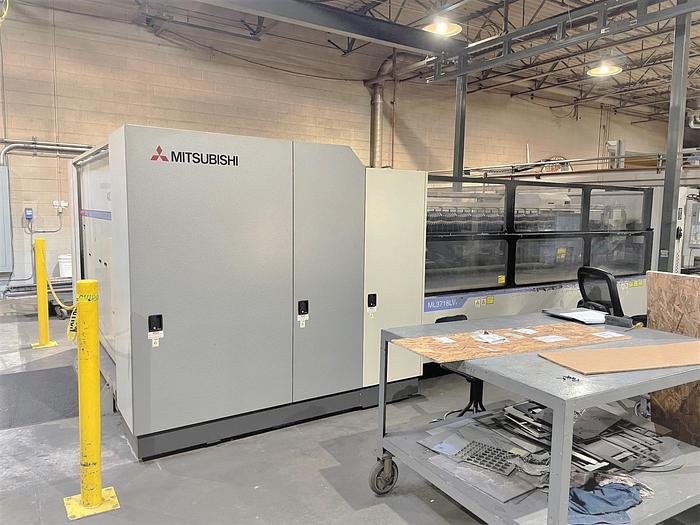

2003 Mitsubishi 3718LVP 4000 Watt CO2 CNC Laser

No longer available

2003 Mitsubishi 3718LVP 4000 Watt CO2 CNC Laser

$79,500 (USD)

New Jersey

Description

CO2 Laser Power Outputs up to 4000 Watts

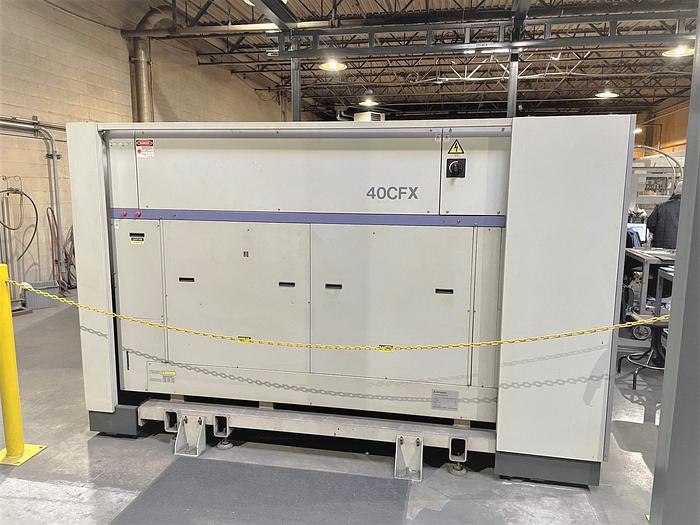

Mitsubishi Model ML40CFX CO2 Laser Resonator

Rotary Axis for Tube Cutting

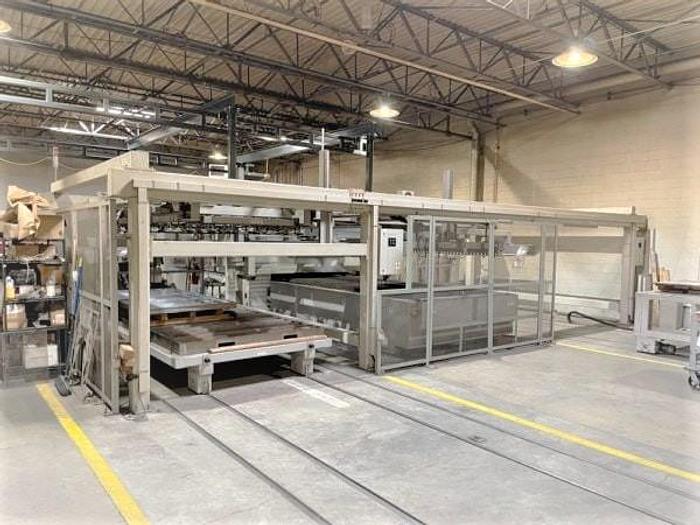

MSC Load/Unload Automation System

Single Cart Load/Unload

Cart Fork Unload

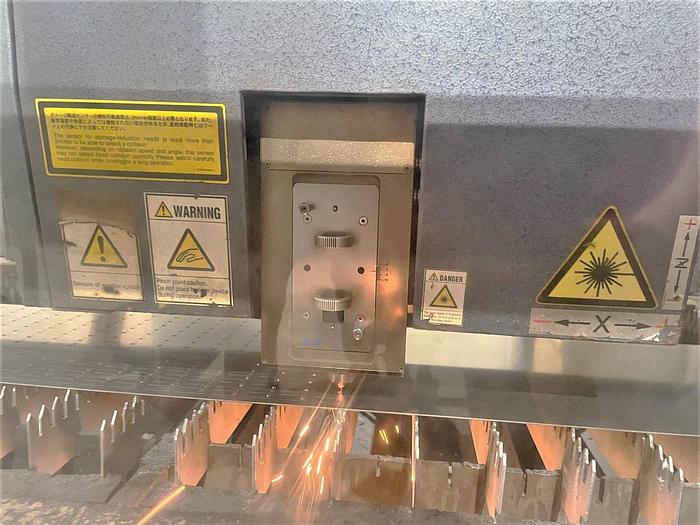

Non Contact Cutting Head

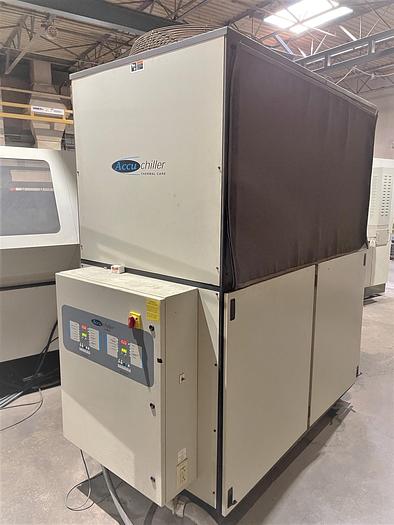

AccuChiller Chiller Unit

Dust Collector

Remote Handheld Jog Handle

RS 232 Port Interface

New Cross Beams for Slats, Both Tables

Presitec Cutting Head 3" - 7.5" Lens Holders

Lens Changing Tools

Extra X Axis Right Side Bellows Covers (new in box)

Extra Power Bank (new in crate)

Extra Nozzles 1.0mm, 1.2mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm

Laser Beam Alignment Tools

Extra PR Mirror Mounted in Holder

Extra Sensor Cable for Head

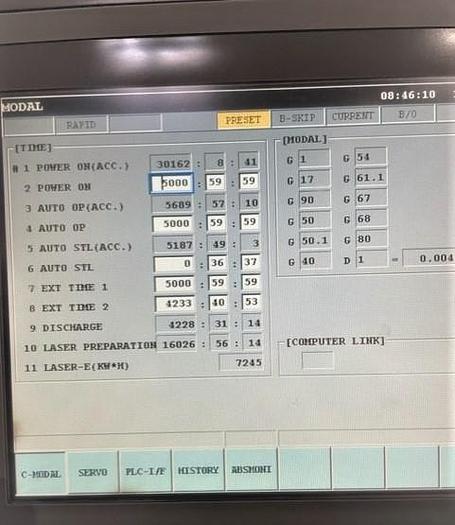

**Control Power On Hours 30,162**

**Laser Preparation Cutting Hours 16,026**


**Seller needs machine to be moved out by early October to make space for new machine!!

Take advantage of an excellent opportunity and HUGE recent price drop!!!


Specifications

ManufacturerMitsubishi
Model3718LVP 4000 Watt CO2 CNC Laser
Year2003
ConditionUsed
Stock Number118886

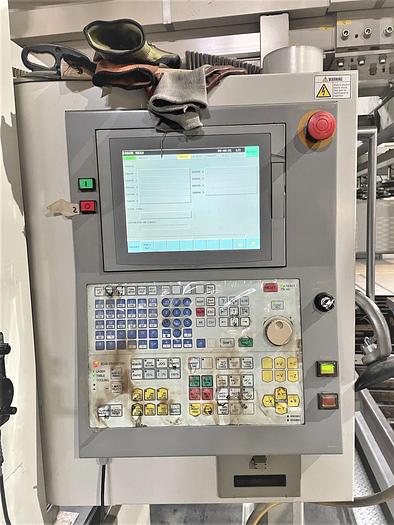

Machine ControlMitsubishi LC208 P2 Control
Materials CutStainless, Mild Steel
Table Size72" x 144"
Number of Shuttle Tables2 Table Shuttle System
Pallet Change Time43 seconds
X-Axis Travel144.05"
Y-Axis Travel72.02"
Z-Axis Travel3.53"
Mild Steel Cutting.030" - 1.0"
Stainless Steel Cutting.030" - .5"
Rapid Traverse Rates4,730 IPM
Maximum Feedrate1,180 IPM
Machine DimensionsNot Available
Machine WeightNot Available
