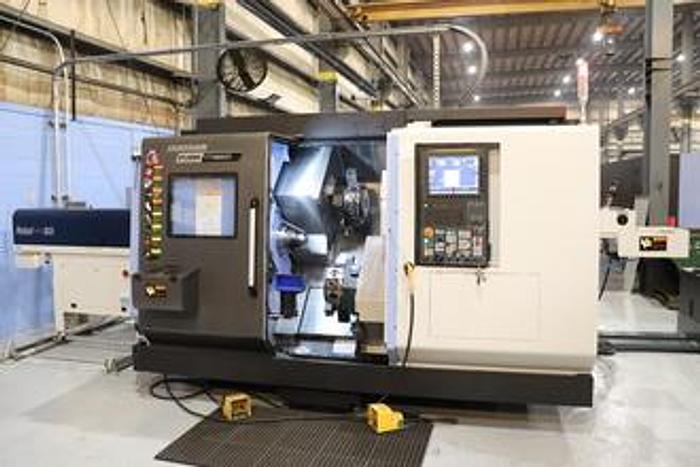

2020 Doosan Puma TT1800SY Twin Spindle/Twin Turret 8 Axis Turn/Mill Lathe

2020 Doosan Puma TT1800SY Twin Spindle/Twin Turret 8 Axis Turn/Mill Lathe

$275,000 (USD)


orCall (863) 439-6066


Full C Axis Spindle Rotation - Both Spindles

Live Milling/Drilling Capability - Both Turrets Y Axis Capability on Upper Turret

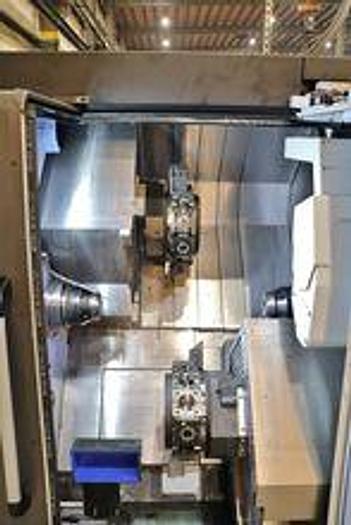

Twin Turret Design with Upper and Lower Turrets

Dual Spindle Design

Set Up for Unloading of Parts Through Subspindle Headstock (see unloader detail below for separate sale)

Edge Technologies Rebel 80SE Servo Short Load Barfeeder

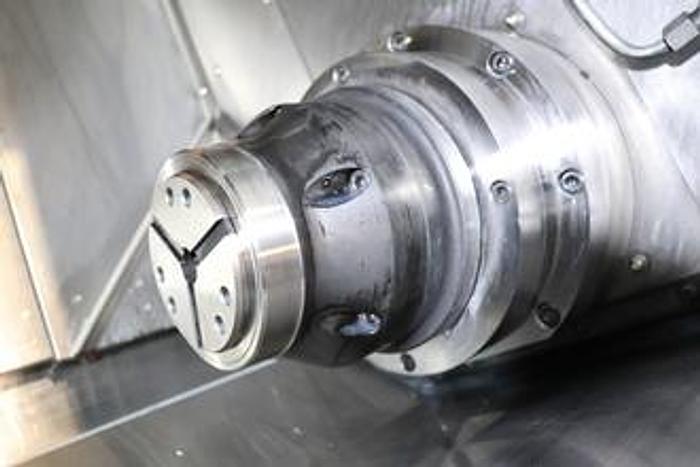

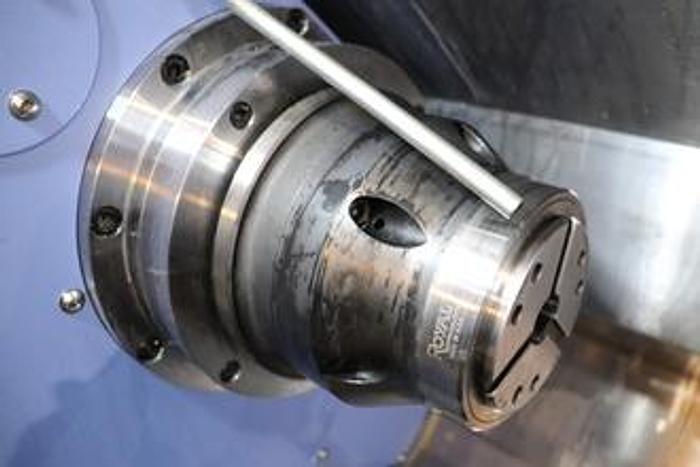

Royal QG65 Compact Collet Chucks on Both Left & Right Spindles

Tool Presetter

Parts Catcher

Parts Exit Conveyor

Chip Conveyor

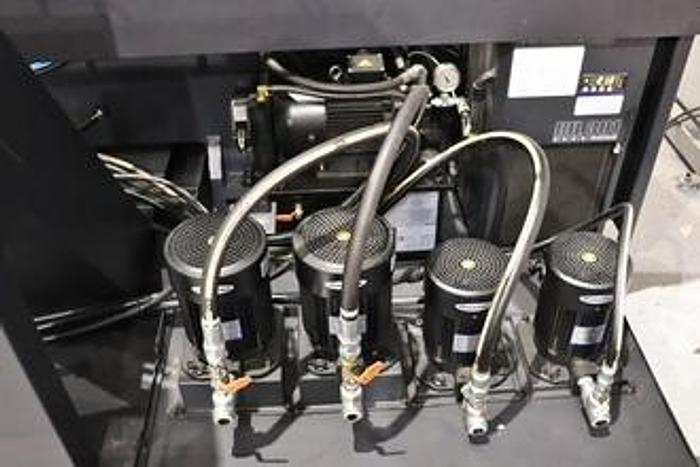

145 PSI Coolant Pumps for both Upper & Lower Turrets

Auto Door

Way Lube Oil Skimmer

Conversation Programming with EZ Guide i

Ethernet Interface

PCMCIA Card Interface RS 232 Port Interface

3 Color Machine Status Condition Lights

Boxed Ways

Coolant Tank with Pump All Available Manuals

(6) Live Tool Holders - (4) Axial and (2) Radial each

Miscellaneous Static Tool Holders

**Edge Technologies Rebel 80 Unloader is NOT incl. in sale, but may be purchased at add'l cost (was a $53,000 option new)**

Edge Unloader Package includes:

Right Spindle Liner - Extended Type - 2.380" Diameter

- X-Axis Axial Shift

- (1) Pusher Length for Part Variance w/ Rubber ID Gripper

- Extended V-Tray to Reach Back of Right Spindle

- Coolant Pan in V-Tray Area for Excessive Coolant

- Air Blow to Reduce Coolant and Chips in Finished Part

- Ladder Modification and Secondary Barfeed Interface & E-Stop Circuit

**Machine was installed new in January of 2021 at a cost of $353,000, and has rarely been used**

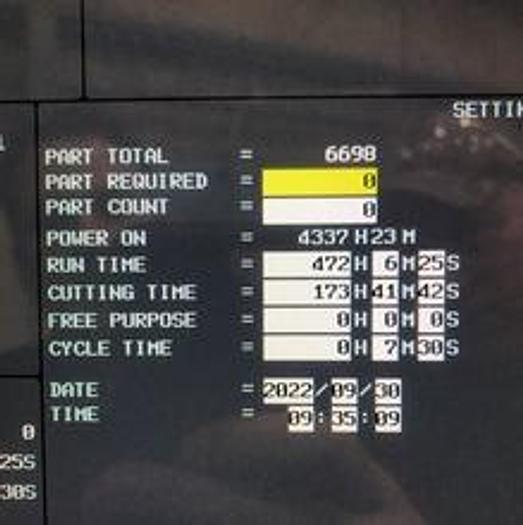

**Run Time Hours 472**

**Cutting Hours 173**


ModelPuma TT1800SY
Stock Number118879
ControlFanuc 0iTP with EZ Guide i Conversational Programming
Chuck SizeRoyal QG Collet Chucks on both Spindles
Maximum Swing over Bed9.05"
Maximum Cutting Diameter9.05"
Maximum Machining Length9.1"
Distance Between Spindles38.582"
Maximum Bar Capacity2.625"
X1-Axis Travel / X2-Axis Travel6.5" / 7.5"
Y-Axis Travel3.93"
Z1-Axis Travel / Z2-Axis Travel31.5" / 28.3"
C Axis Spindle Rotation0.001 Degrees - both Spindles
A-Axis Travel - Subspindle30.3"
Spindle Nose / Spindle BoreA2-6" / 3.0" - both Spindles
Main & Subspindle Speeds5,000 RPM
Spindle Motor - Both Spindles30 HP
Rotary Tool Speed / Rotary Motor5,000 RPM / 7.5 HP

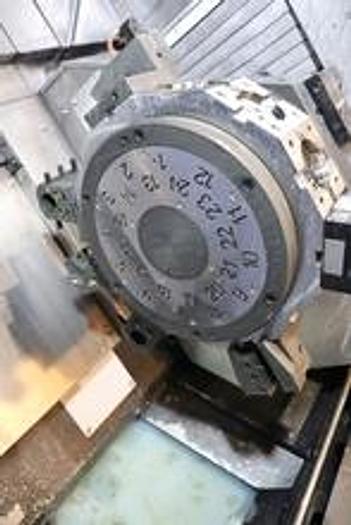

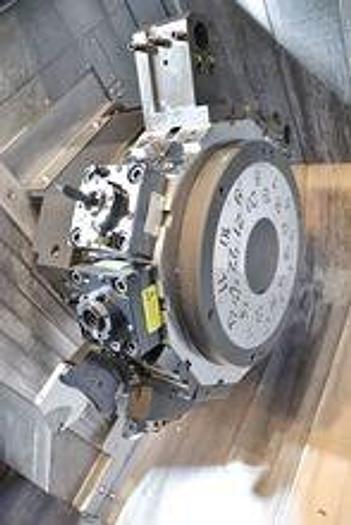

Number of Turret Positions12 Station Turret - Each
Rapid Traverse Rates X / Y / Z787 IPM / 295 IPM / 984 IPM
Machine Dimensions154" x 82" x 98"
Machine Weight17,196 lbs.
