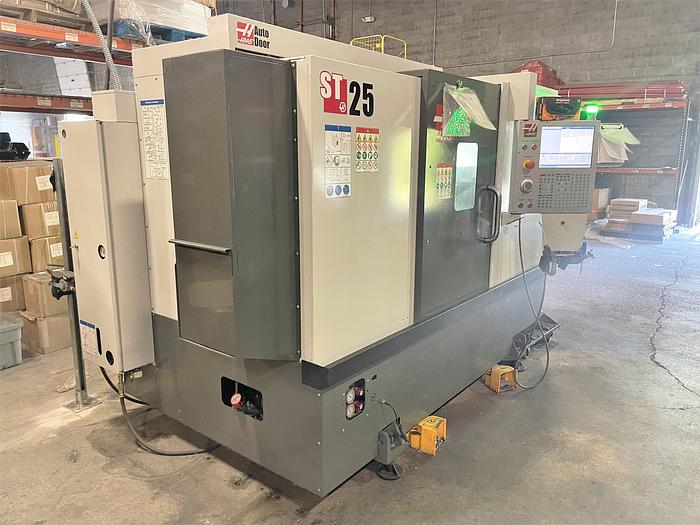

2020 Haas ST-25
No longer available
2020 Haas ST-25
$64,950 (USD)
Location:New York, NY
Description

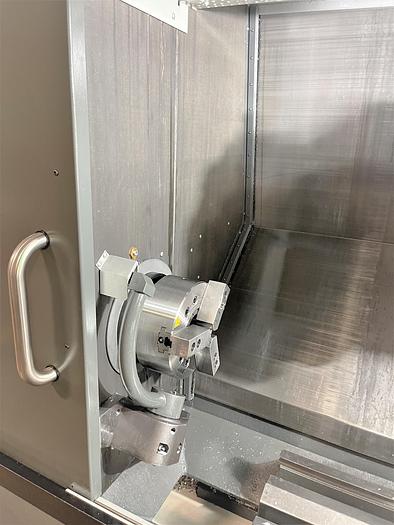

10" 3 Jaw Hydraulic Chuck
Tool Presetter
Programmable Tailstock
Haas Visual Part Programming System
Auto Door
User Definable Macros
Spindle Load Monitor
Rigid Tapping
Early Power Failure Detection Module
Haas Drop
Safe Run
Haas Connect - Remote Monitoring
Media Display M Code M130
1 GB Programming Memory
Wifi for Haas Control
15" LCD Color Monitor
Memory Lock Keyswitch
Ethernet
USB Port Interface
RS 232 Port Interface
All Available Tool Blocks
All Available Manuals
*Very Little Use, ONLY 5,043 POWER ON Hours**
**ONLY 380 Cycle Start Hours**
**ONLY 282 Feed Cutting Hours**
**Price new as equipped at $84,180**
Specifications
| Manufacturer | Haas |
| Model | ST-25 |
| Year | 2020 |
| Condition | Used |
| Stock Number | 118875 |
| Machine Control | Haas CNC Control |
| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing | 31.75" |
| Maximum Machining Diameter | 15" |
| Maximum Machining Length | 21" |
| X-Axis Travel | 9.3" |
| Z-Axis Travel | 21" |
| Spindle Nose / Bore / Bar Capacity | A2-6 / 3.5" / 3.0" |
| Spindle Motor | 40 HP |
| Spindle Torque | 300 ft./lbs. |
| Spindle Speeds | 3,400 RPM |
| Number of Turret Positions | 12 Bolt on Style |
| Rapid Traverse Rates | 945 IPM |
| Tailstock Taper | MT #4 |
| Machine Dimensions LxWxH | 140" x 90" x 89" |
| Machine Weight | 12,300 lbs. |
