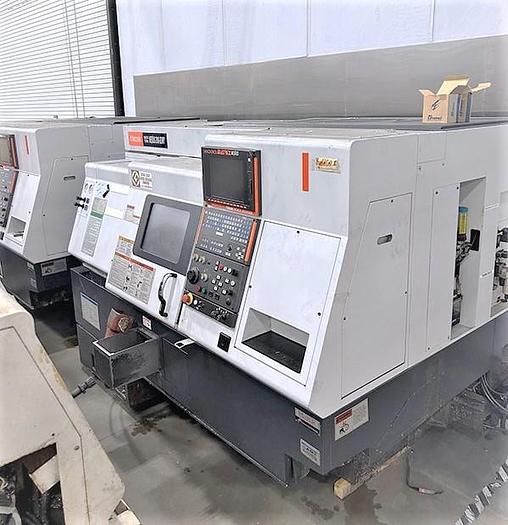

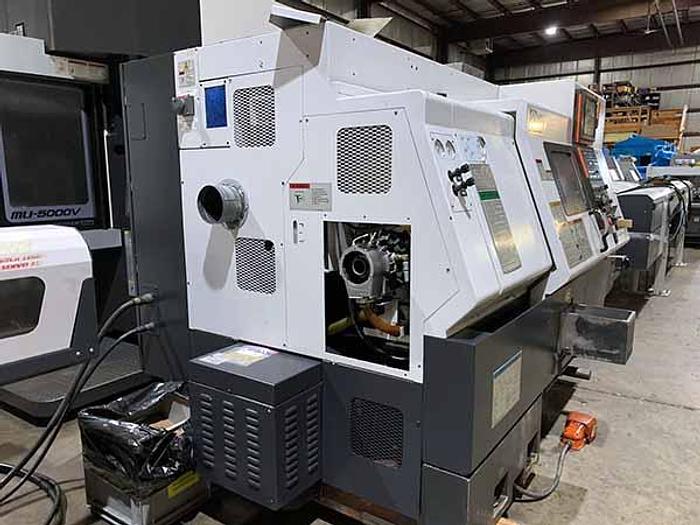

2007 Mazak Nexus QTN 200-II MY
2007 Mazak Nexus QTN 200-II MY
$57,950 (USD)
Location:Illinois
Description
Y Axis Capability (Off Center)
Full C Axis Spindle Rotation
Live Milling / Drilling Capability

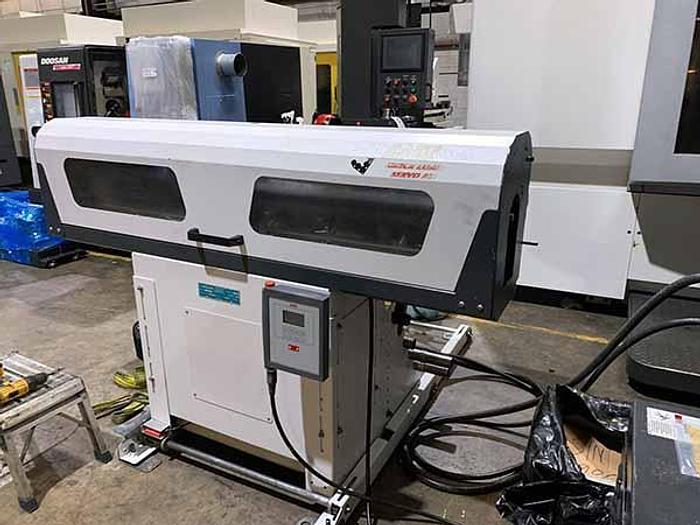

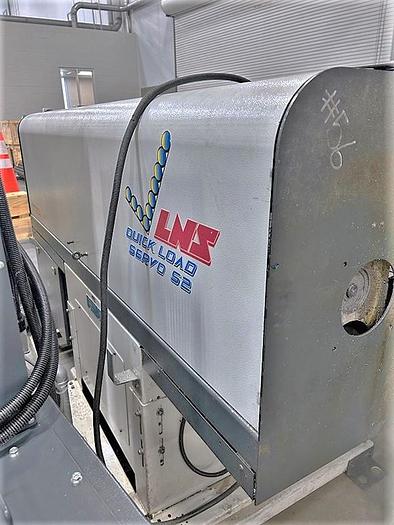

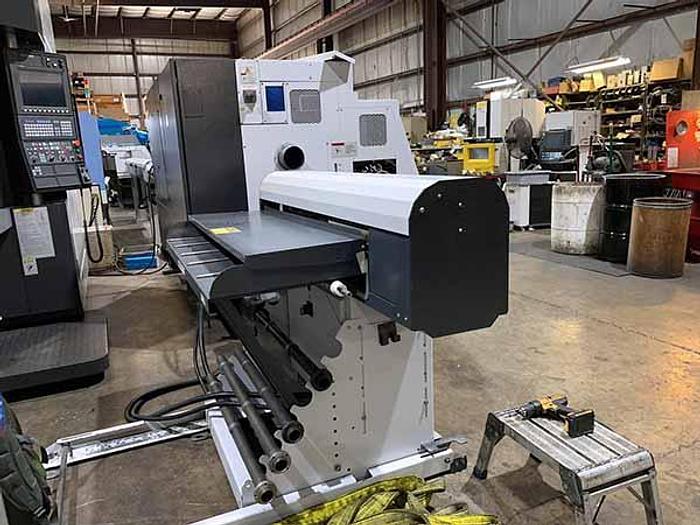

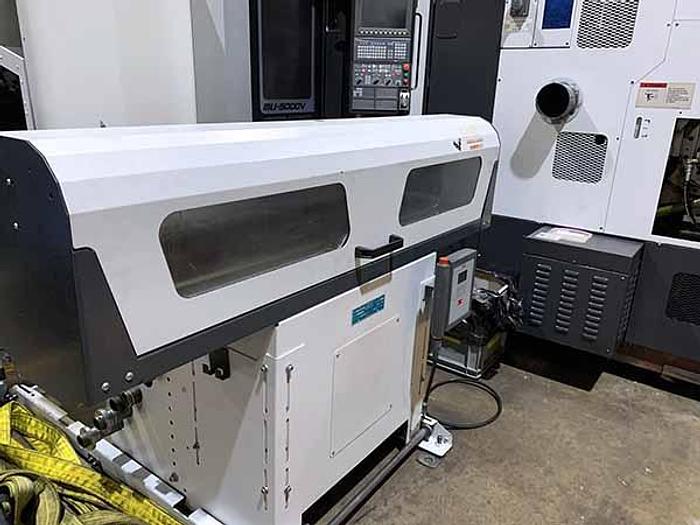

LNS Quickload Servo S2 Barfeeder
8" 3 Jaw Hydraulic Chuck
Automatic Tool Eye

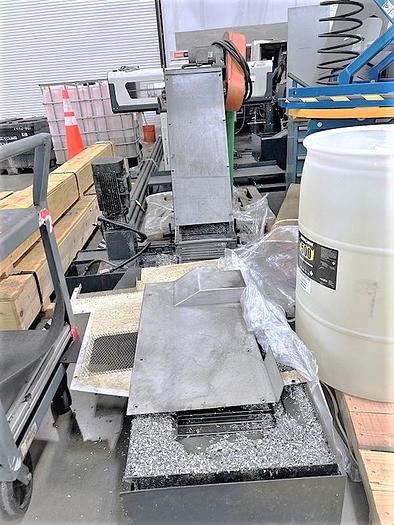

Chip Conveyor

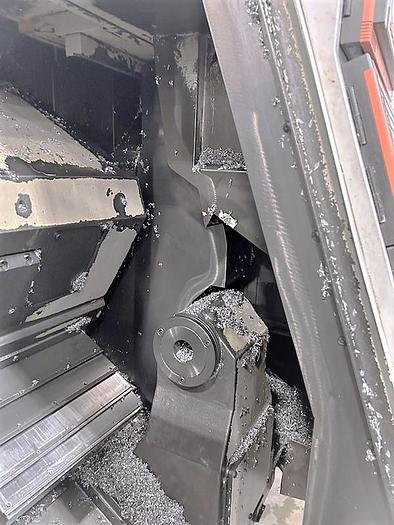

Parts Catcher

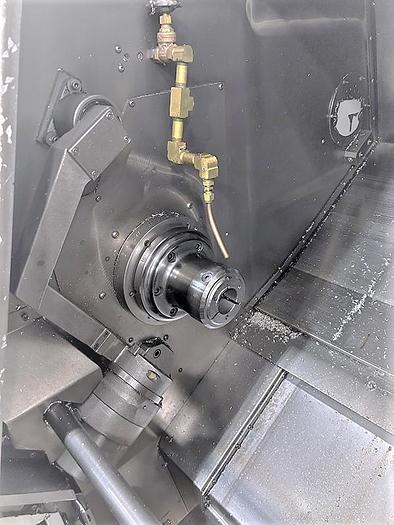

Programmable Tailstock
Automatic Chuck Jaws Open/Close
Chuck Status Feedback
Dual Foot Pedal for Chuck
Front Door Interlock
Coolant System with Tank & Pump
Workspace Illumination
Mazak Tornado EIA/ISO
EIA/ISO Input Function
Custom Variables 600
Optional Stop
Tapping Function
Direct Data Input Function Drawing
Polar Coordinate Entry G122
Intelligent Heat Shield
Intelligent Danger Sign
Virtual Machining
Mill Spindle Synchronous Tapping
USB Port Interface - 2 Slots
LAN Interface
3.5" Floppy Disk Drive Interface
RS 232 Port Interface
Chuck Air Blast - Second Spindle
Multi Tap Transformer
All Available Manuals

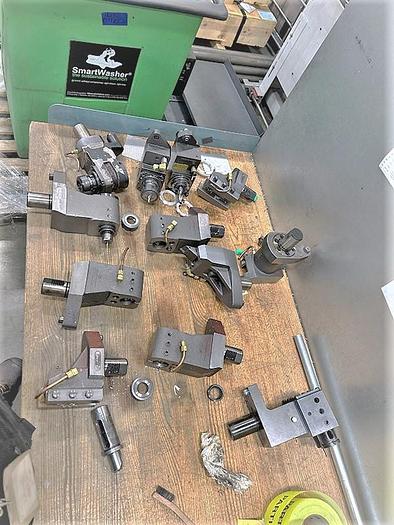

Miscellaneous Static and Live Tool Holders

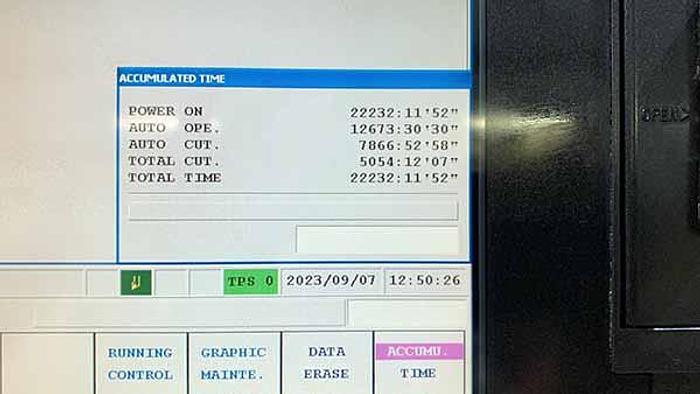

**Power On Hours 22,232**
**Auto Operation Hours 12,673**
**Auto Cut Hours 7,866**
**Total Cut Hours 5,054**
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 200-II MY |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118869 |

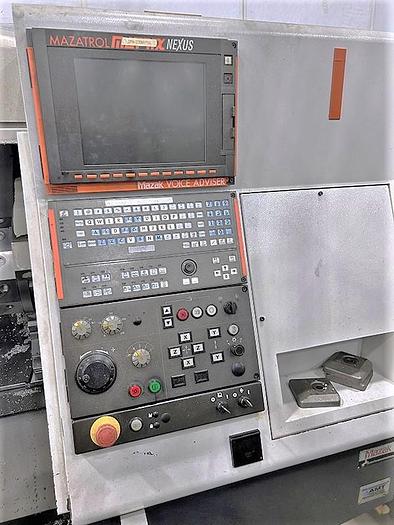

| Control | Mazatrol Matrix Nexus |
| Chuck Sizes | 8" 3 Jaw Hydraulic |
| Maximum Swing/Over Carriage | 26.5" / 14" |
| Maximum Cutting Diameter | 14.75" |
| Maximum Cutting Length | 21.28" |
| Distance Between Centers | 27.231" |
| X-Axis Travel | 9.055" |
| Y-Axis Travel | 4" (+/- 2.0") |
| Z-Axis Travel | 22.75" |
| C Axis Spindle Rotation | 0.001 Degree |

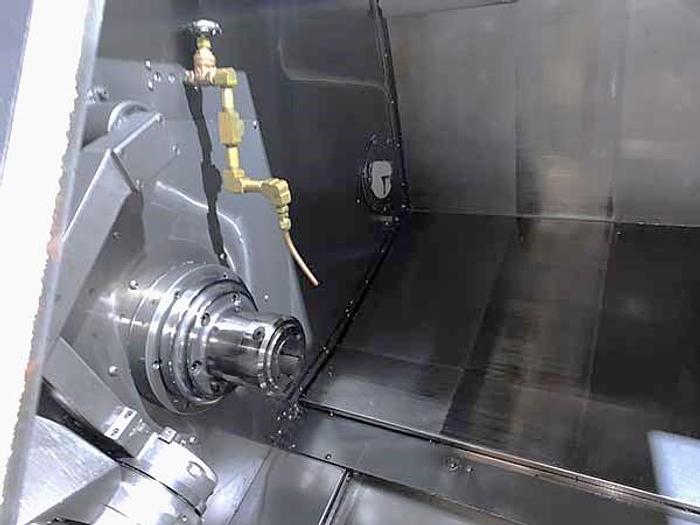

| Spindle Nose / Spindle Bore / Bar Capacity | A2-6" / 2.99" / 2.5" |
| Spindle Speed | 35 - 5,000 RPM |
| Spindle Motor | 35 HP |
| Rotary Tool Speed / Rotary Motor | 4,500 RPM / 7.5 HP |

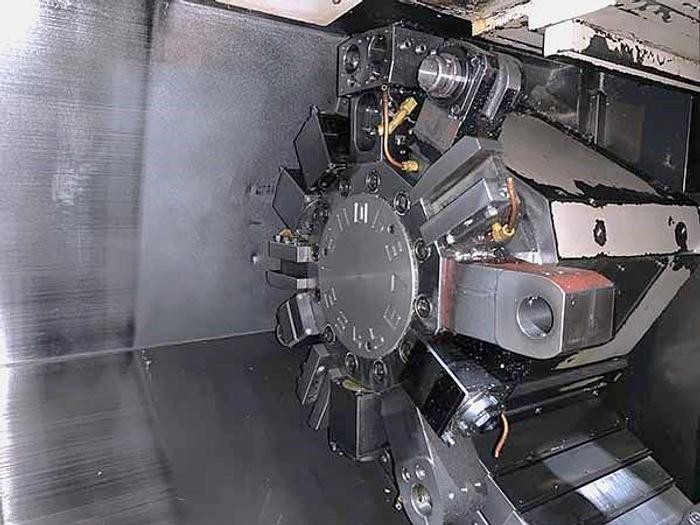

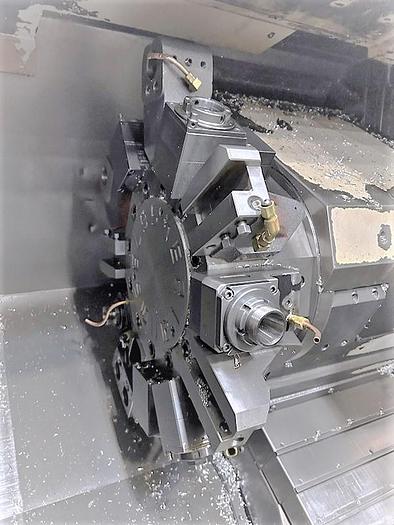

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X/Z | 1181 IPM / 1299 IPM |
| Tailstock Body Travel / Tailstock Taper | 21.75" / MT #5 |
| Machine Dimensions | 116" x 74" x 73" |
| Machine Weight | 11,243 lbs. |
