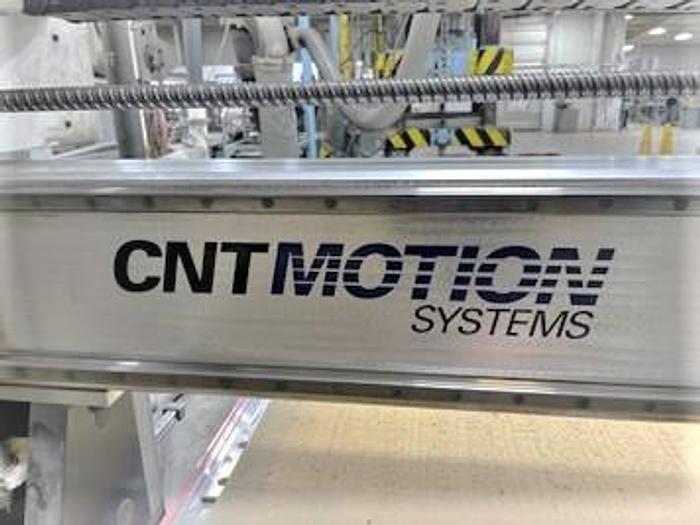

2014 CNT Motion Systems Model CNT-1000 CNC Gantry Router

2014 CNT Motion Systems Model CNT-1000 CNC Gantry Router

$39,950 (USD)

Location:Oklahoma

orCall (863) 439-6066

Description

(4) Two Station Tool Bars with 8 ISO 30 Tool Holders for "on the fly" Changes

(4) Additional Fixed Tool Bar Mounted Positions at Rear of Table, Expandable to 14 Additional Positions

Windows 2007 Pro Based CNC Control Software

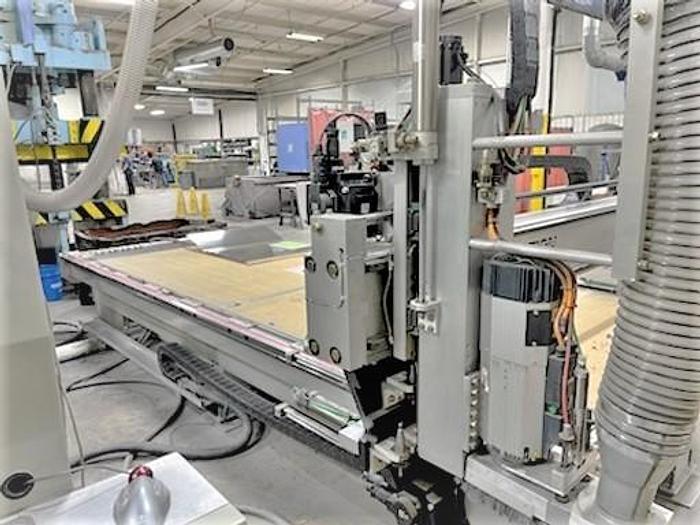

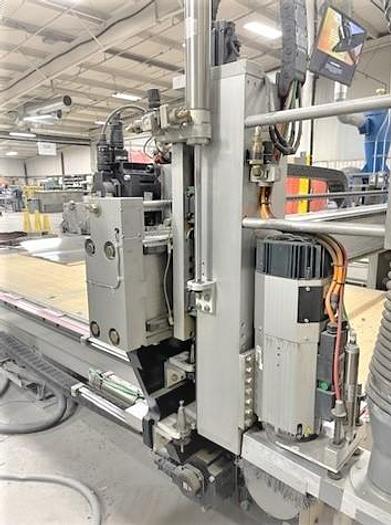

Four Pole 10 HP Spindle Motor for better low end torque

Remote Jog Handle

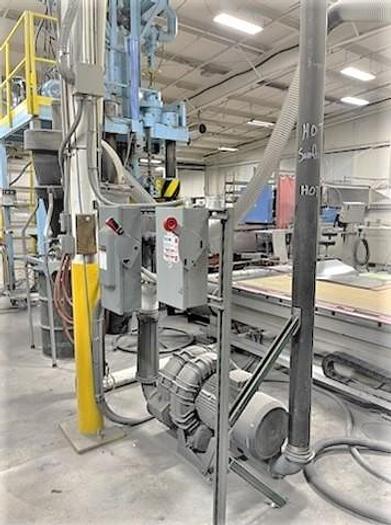

25 HP FPZ Regenerative Vacuum Blower and Switch Gear

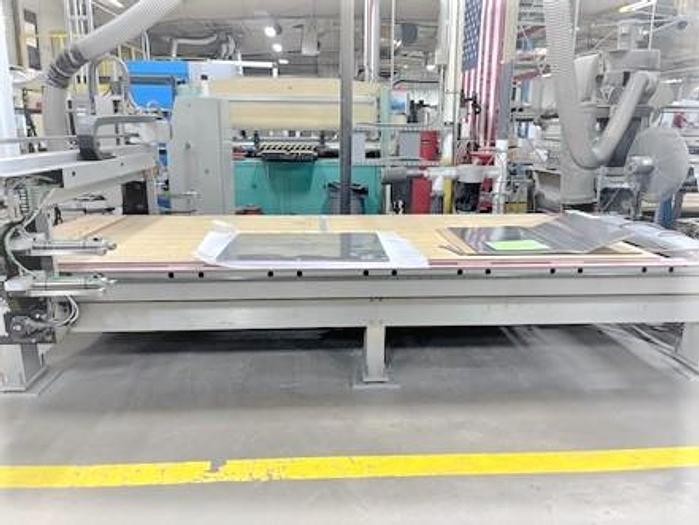

60" x 144" x 1/2" Aluminum Vacuum Grid, 13.2" Hg, 380 CFM

(4) Air Actuated Pop Up Pin Material Stops

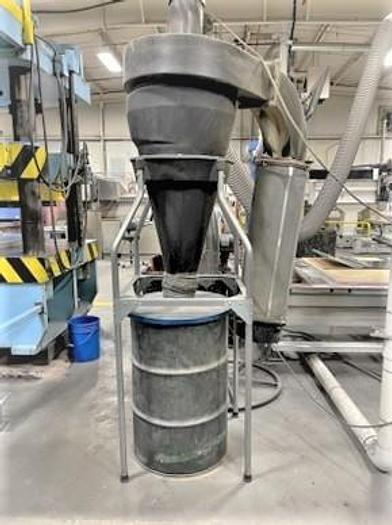

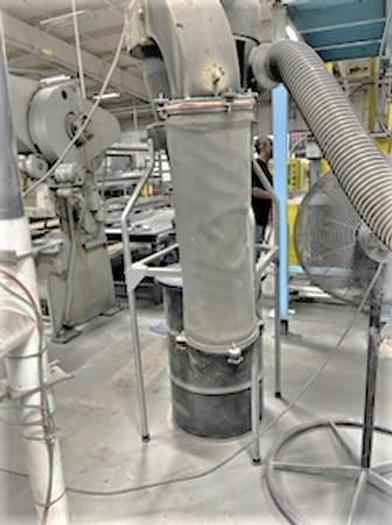

Dust/Chip Collection System with Advanced Dust Collection Hood

Ballscrew Driven in X & Z Axis

AC Brushless Closed Loop Servo

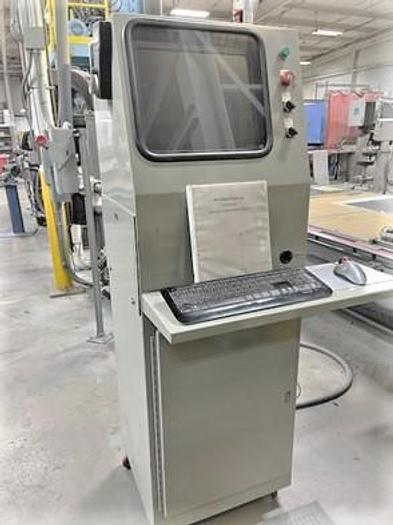

NEMA 12 Computer Control Cabinet

X & Z Axis Hiwin Ballscrew Driven

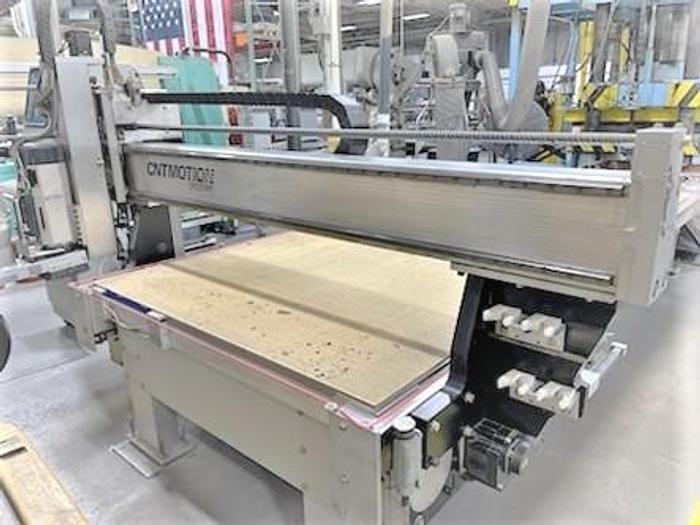

Y Axis Helical Rack and Pinion Drive

Perimeter Cable E-Stop

Computer Control Spindle On/Off/Speed Changes

Automatic Tool Length Measure Switch

Pressurized and Lubricated 25mm Bearing System

17" Flat Screen Monitor

RS 232 Port Interface

230V Electrics / 3 PH

Mitsubishi Servos and Drive


**Price new as equipped today are nearly $98,000**

**Installed new in March of 2015 in Aircraft Shop**

Specifications

ManufacturerCNT Motion Systems
ModelModel CNT-1000 CNC Gantry Router
Year2014
ConditionUsed
Stock Number118859
ControlCNT Motion Control
Table Size172" x 62"
X-Axis Travel144"
Y-Axis Travel60"
Z-Axis Travel11"

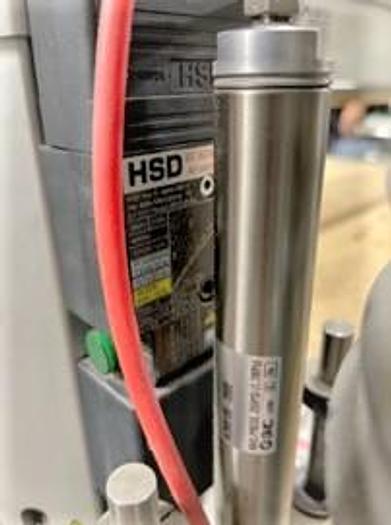

Spindle TaperISO 30 with HSD Retention Knob
Spindle Speed24,000 RPM
Spindle Motor10 HP
Tool Magazine Capacity12 Total Tool Positions
Rapid Traverse Rates X, Y / Z2200 IPM/ 500 IPM
Machine Dimensions LxWxH172" x 108"
Machine Weight5,000 lbs.
