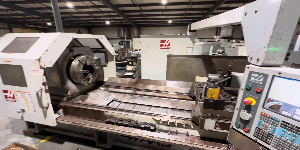

2007 Haas TL-4 Big Bore Lathe w/ 10.8" Spindle Bore, also with Dual 25" 4 Jaw Chucks, Tailstock, Chip Conveyor, Tool Post
No longer available
2007 Haas TL-4 Big Bore Lathe w/ 10.8" Spindle Bore, also with Dual 25" 4 Jaw Chucks, Tailstock, Chip Conveyor, Tool Post
$98,500 (USD)
Location:Missouri
Description
25" 4 Jaw Manual Front & Rear Chucks
Chip Conveyor
Tool Post
Tailstock
10.8" Spindle Bore
15" LCD Color Monitor
Remote Jog Handle
Intuitive Programming System
Spindle Orientation
Rigid Tapping
Coolant System with Tank & Pump
Work Light
USB Port Interface
RS 232 Port Interface
Haas Manual
Considerable Tooling
Specifications
| Manufacturer | Haas |
| Model | TL-4 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118856 |
| Machine Control | Haas CNC Control |
| Chuck Size | 25" 4 Jaw Front & Rear Chucks |
| Maximum Swing | 35" |
| Maximum Swing Over Cross Slide | 16" |
| Maximum Cutting Diameter | 35" |
| Distance Between Centers | 91" |
| X-Axis Travel | 18" |
| Z-Axis Travel | 80" |
| Spindle Speeds | 0-500 RPM |
| Spindle Nose / Spindle Bore | A1-20" / 10.81" |
| Spindle Motor | 55 HP |
| Number of Tool Positions | 4 Position Tool Post |
| Tailstock Bore Taper | #5 MT |
| Machine Dimensions LxWxH | 240"x102"x87" |
| Machine Weight | 29,380 lbs |
