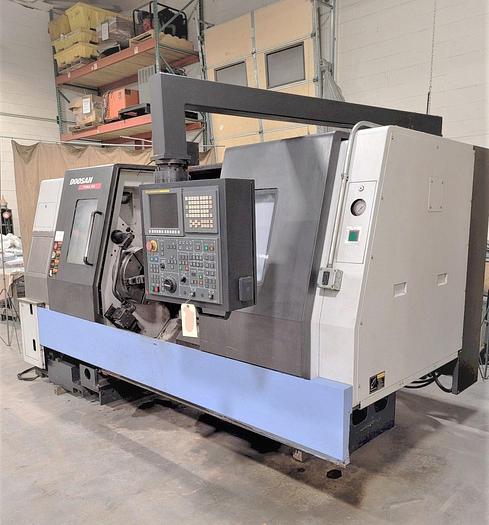

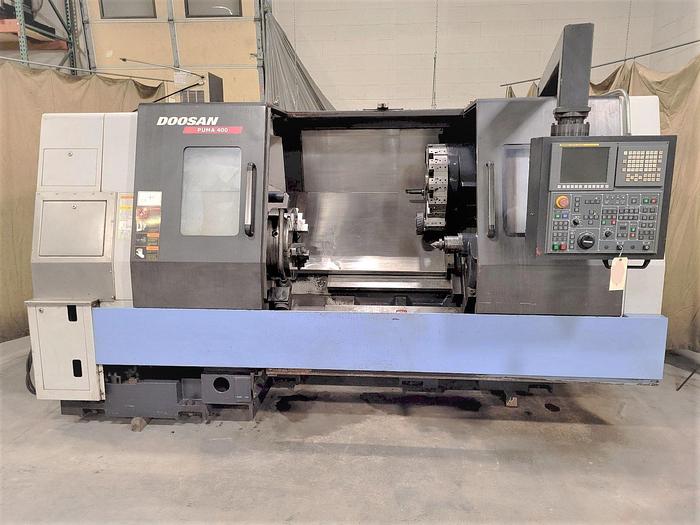

2013 Doosan Puma 400C
No longer available
2013 Doosan Puma 400C
Location:Illinois
Description

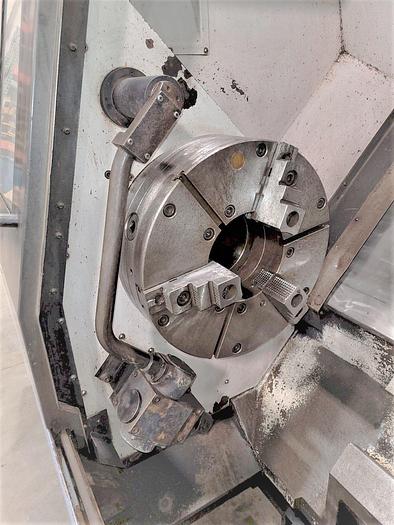

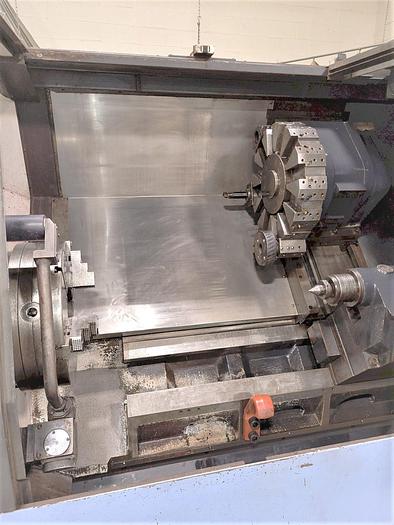

Chip Conveyor 20" 3 Jaw Front Mounted Manual Chuck with 8" Hole Through
20" 3 Jaw Rear Mounted Air Chuck with 7.5" Hole Through Programmable Tailstock Tool Presetter
Manual Pulse Generator

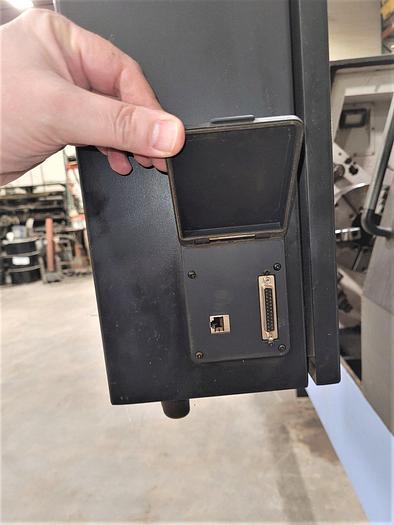

USB Port Interface
Flash Drive Interface RS 232 Port Interface Coolant System with Tank & Pump
LCD Monitor Display

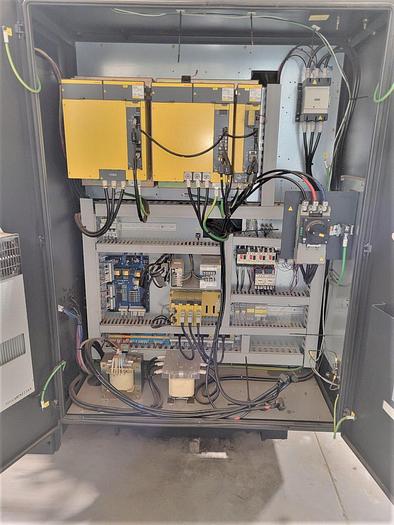

Wired 200/220V Electrics
Boxed Ways on a Slant Bed Design All Available Tooling All Available Manuals
**Machine is new in February of 2013**
Specifications
| Manufacturer | Doosan |
| Model | Puma 400C |
| Year | 2013 |
| Condition | Used |
| Stock Number | 118855 |

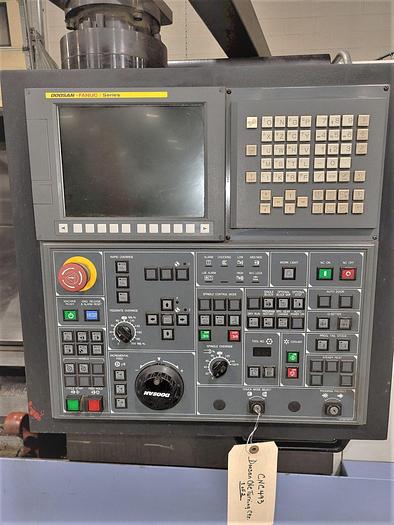

| Control | Fanuc i Series Control |
| Chuck Size | 20" Front / 20" Rear |
| Maximum Swing | 30.3" |
| Maximum Cutting Diameter | 21.7" |
| Maximum Cutting Length | 40.3" |
| X-Axis Travel | 14.3" |
| Z-Axis Travel | 43.5" |
| Spindle Nose / Bore / Bar Capacity | A1-15" 7.1" / 7.1" |
| Spindle Speeds | 1,500 RPM |
| Number of Speeds | 2 Speed Gearbox |
| Spindle Motor | 50 HP |

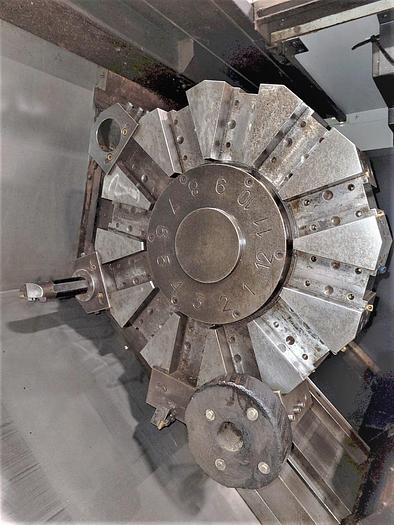

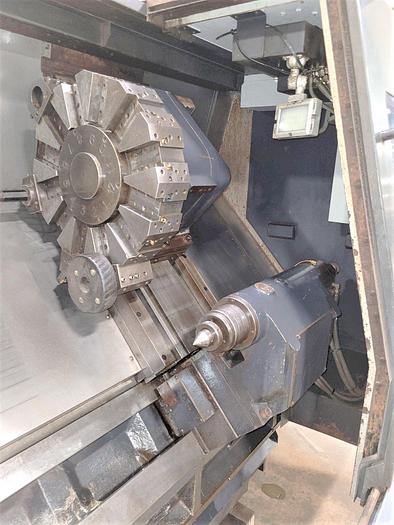

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X / Z | 630 IPM / 790 IPM |
| Tailstock Quill Diameter / Center | 407" / MT #5 |
| Tailstock Quill Travel | 4.7" |
| Machine Dimensions LxWxH | 201" x 94" x 92" |
| Machine Weight | 18,100 lbs. |
