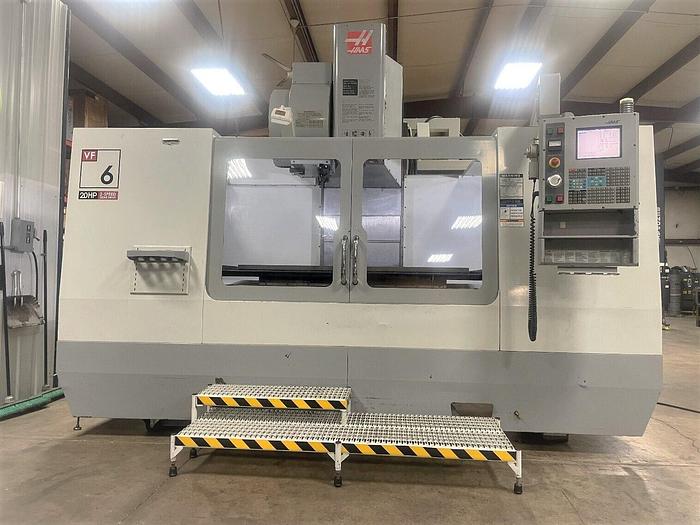

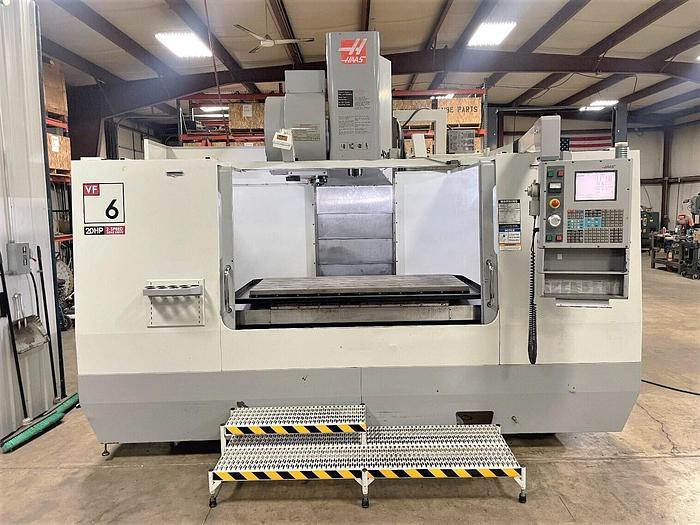

2004 Haas VF-6/40
No longer available
2004 Haas VF-6/40
$59,950 (USD)
Location:Illinois
Description
Programmable Coolant Nozzle
Coordinate Rotation & Scaling
User Definable Macros
24 Station Side Mounted Tool Changer
Chip Auger Style Conveyor
Rigid Tapping
Remote Jog Handle
High Intensity Lighting
2 Speed Geared Head
Coolant System with Tank & Pump
USB Port Interface
RS 232 Port Interface
**Motion Hours 18,931**
**Spindle Hours 17,649**
Specifications
| Manufacturer | Haas |
| Model | VF-6/40 |
| Year | 2004 |
| Condition | Used |
| Stock Number | 118849 |

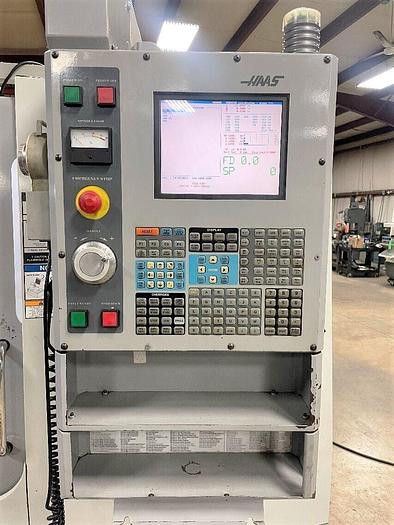

| Machine Control | Haas CNC Control |
| Table size | 64" x 28" |
| Maximum Table Load | 4,000 lbs |
| X-Axis Travel | 64" |
| Y-Axis Travel | 32" |
| Z-Axis Travel | 30" |
| Spindle Taper | CAT 40 |
| Spindle Motor | 20 HP |
| Spindle Speeds | 7,500 RPM |
| Spindle Torque | 450 ft lbs |
| Distance Spindle Nose to Table Top | 5" - 35" |
| Tool Magazine Capacity | 24 Station ATC |
| Rapid Traverse Rates X, Y / Z | 540 IPM / 600 IPM |
| Machine Dimensions LxWxH | 156"x123"x129" |
| Machine Weight | 21,000 lbs |
