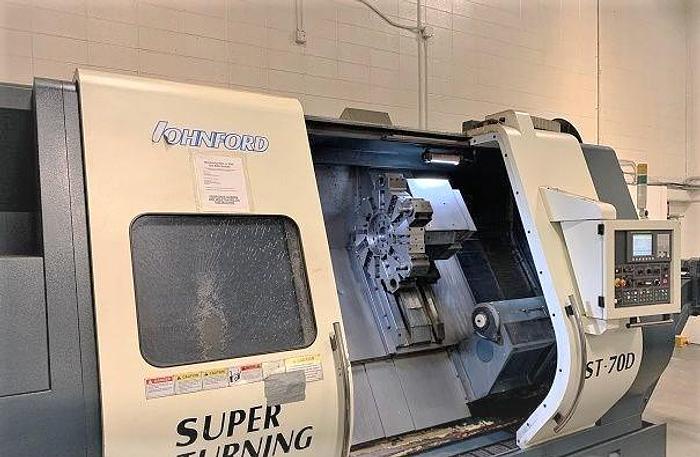

2011 Johnford ST70D
No longer available
2011 Johnford ST70D
Location:Alberta, Canada
Description
18" Schunk 3 Jaw Air Chuck

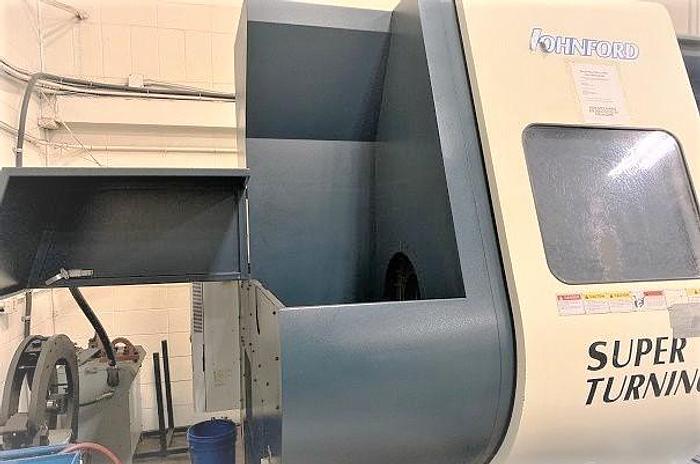

Chip Conveyor

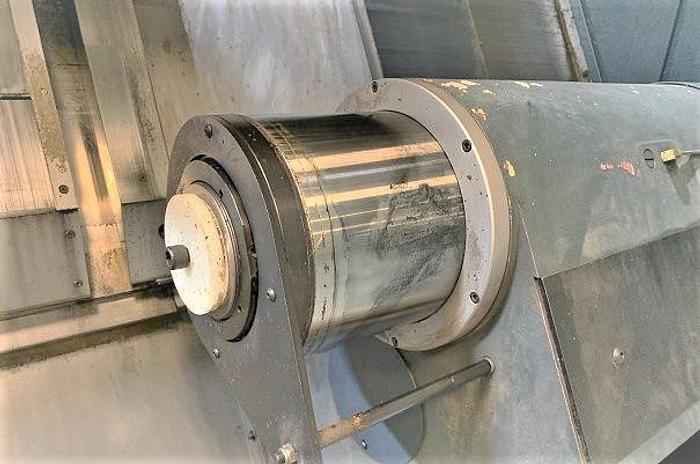

Tailstock
Tool Presetter
Complete Coolant System with Tank & Pump
RS 232 Port Interface
3 Color Machine Status Condition Lights
Heavy Boxed Ways and Slant Bed
All Available Tooling
All Available Manuals
Specifications
| Manufacturer | Johnford |
| Model | ST70D |
| Year | 2011 |
| Condition | Used |
| Stock Number | 118839 |
| Machine Control | Fanuc 0i-TD |
| Chuck size | 18" 3 Jaw Air Chuck |
| Maximum Swing over Bed | 31.1" |
| Distance Between Centers | 50" |
| Maximum Bar Capacity | 6.5" |

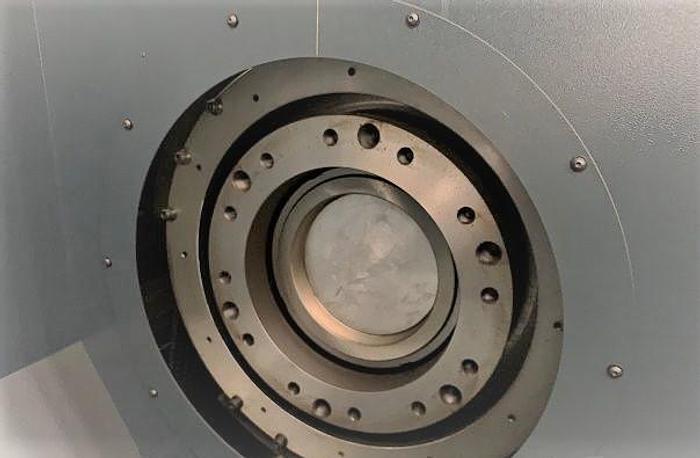

| Spindle Nose / Spindle Bore | A2-15" / 7.25" |
| Spindle Speed | 4 - 1,000 RPM |
| Spindle Motor | 50 HP |
| Number of Turret Positions | 12 Station Turret |
| Machine Dimensions | not available |
| Machine Weight | 29,150 lbs. |
