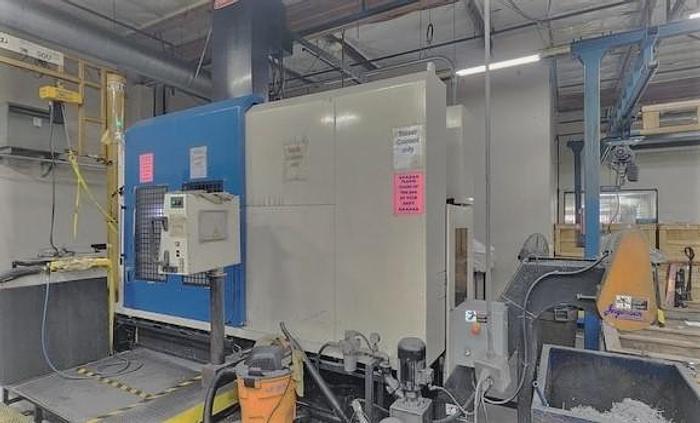

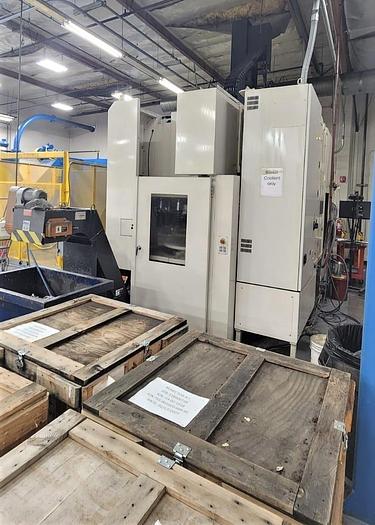

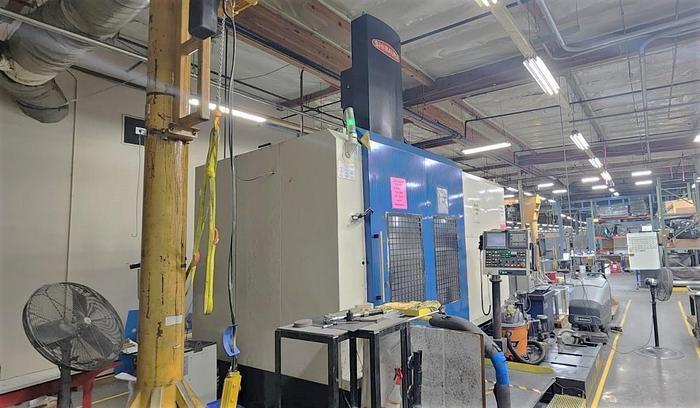

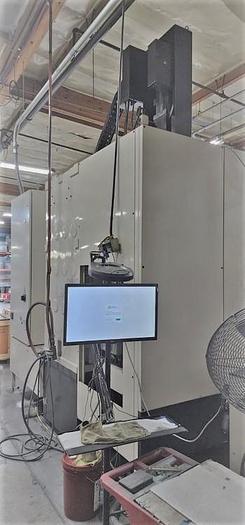

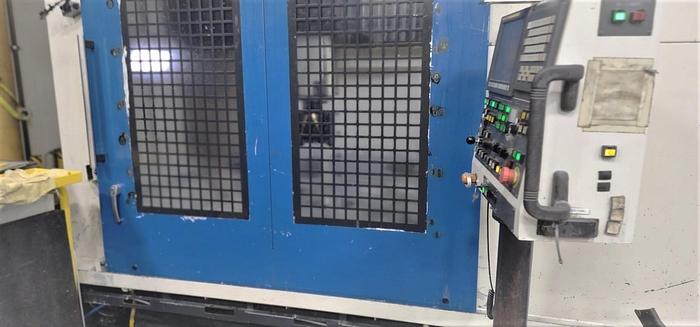

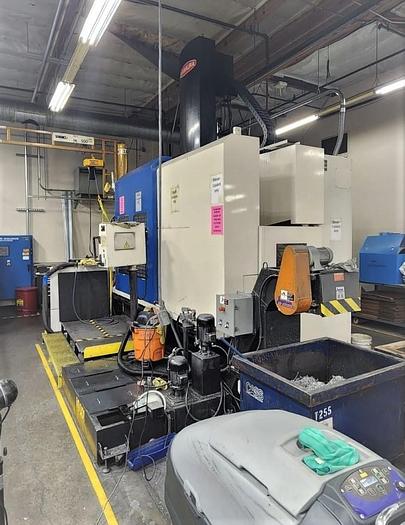

2015 Toshiba TUE-100S w/ Milling
No longer available
2015 Toshiba TUE-100S w/ Milling
$349,500 (USD)
Location:California
Description
C Axis Table Rotation
Live Milling/Drilling Capability

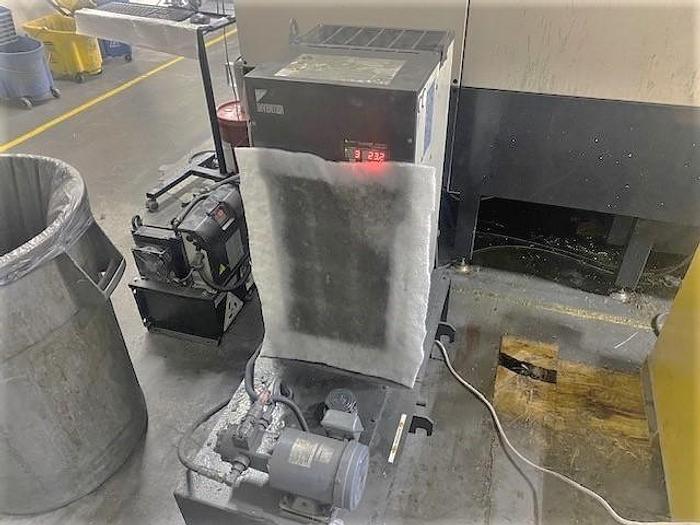

40" Hydraulic Chuck Chip Conveyor 18 Position Tool Changer Spindle Chiller
Coolant Through Spindle
X Axis Linear Scale Feedback
Table Lubricant Oil Cooling Unit Card Interface RS 232 Port Interface Coolant System with Pan & Pump All Available Manuals
Specifications
| Manufacturer | Toshiba |
| Model | TUE-100S w/ Milling |
| Year | 2015 |
| Condition | Used |
| Stock Number | 118837 |

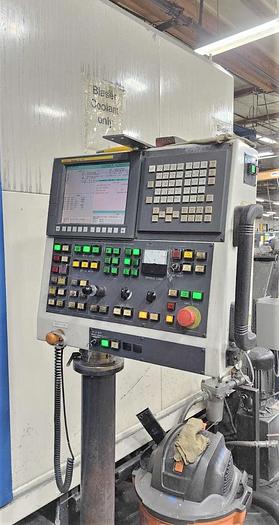

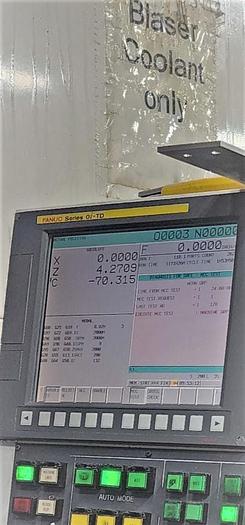

| Control | Fanuc Oi-TD |

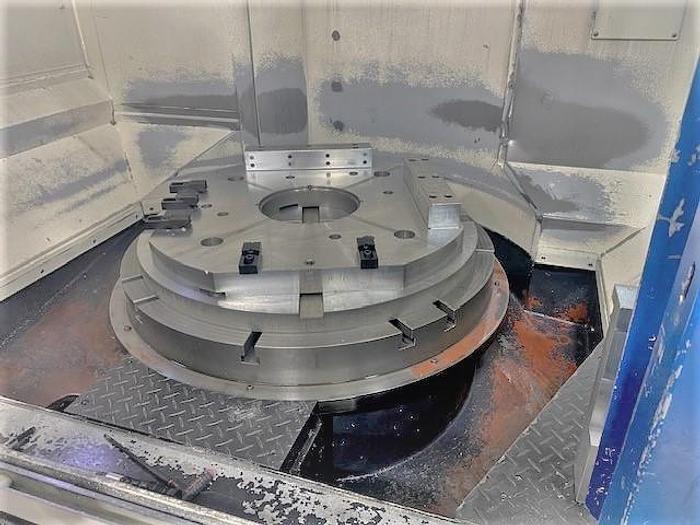

| Table Diameter | 40" Hydraulic Chuck |
| Maximum Weight on Table | 4,400 lbs. |
| Maximum Swing | 47.2" |
| Maximum Turning Height | 33.5" |
| X-axis travel | -20" - 29.5" |
| Z-Axis Travel | 31.4" |
| C Axis Table Rotation | 360 Degrees |
| Table Speeds | 600 RPM - 2 Ranges |
| Table Drive Motor | 60 HP |
| Tool Shank | 7/24 Taper #50 |
| Live Spindle Speed / Live Spindle Motor | 15 - 3,000 RPM / 25 HP |
| Number of Tool Positions | 18 Position Tool Changer |
| Cutting Feedrates | 78.74 IPM |
| Machine Dimensions | 198" x 142" x 183" |
| Machine Weight | 37,450 lbs. |
