2012 Hwacheon VT-1150MC w/ Milling
No longer available
2012 Hwacheon VT-1150MC w/ Milling
$250,000 (USD)
Location:Arizona
Description

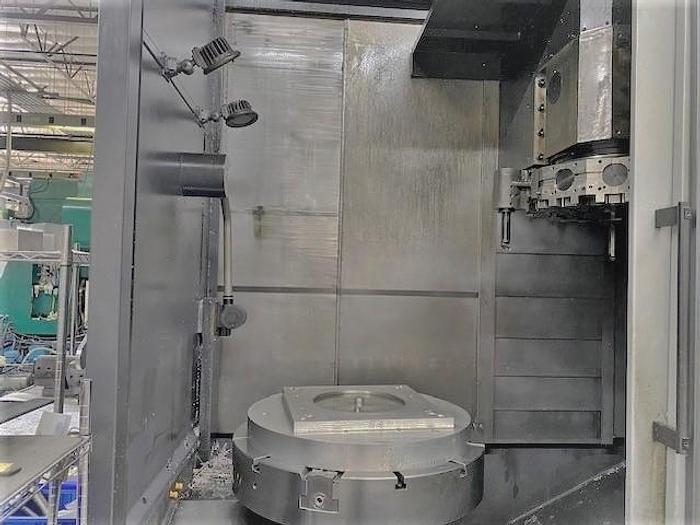

40" Diameter Table
C Axis Table Rotation
Milling Cability

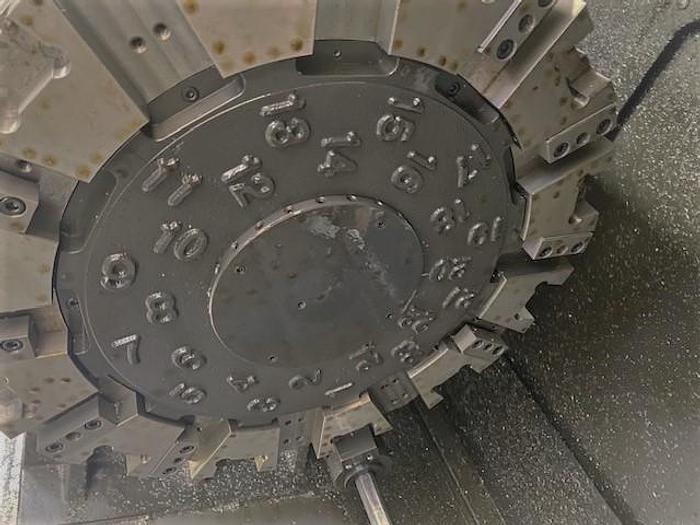

24 Station Turret
Chip Conveyor
Tool Presetter
Remote Jog Handle
Coolant System with Tank & Pump
Work Status Condition Lights
RS 232 Port Interface All Available Manuals

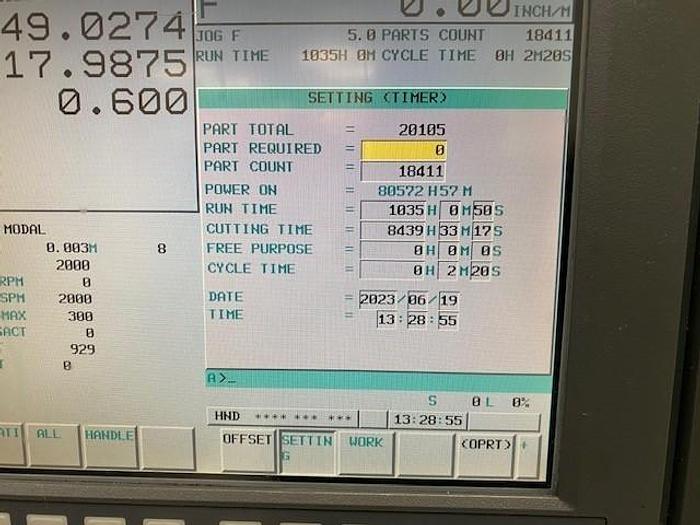

**8439 Cutting Hours**
Specifications
| Manufacturer | Hwacheon |
| Model | VT-1150MC |
| Year | 2012 |
| Condition | Used |
| Stock Number | 118836 |
| Control | Fanuc 0i-TD |
| Table Diameter | 40" |
| Maximum Swing | 53.15" |
| Maximum Turning Height | 37.4" |
| Spindle Nose | 520 Flat |
| X-Axis Travel | 24" |
| Z-Axis Travel | 37.4" |
| C Axis Table Rotation | 0.0001 Degree |
| Table Speed | 1 - 630 RPM |
| Table Motor | 73.5 HP - 2 Speed |
| Milling Tool Speed / Motor HP | 3,000 RPM / 7.5 HP - 2 Speed Geared |
| Number of Tool Positions | 24 Station Turret |
| Rapid Traverse Rates | 945 IPM |
| Machine Dimensions | 110.7 X 161 X 142 |
| Machine Weight | Not Available |
