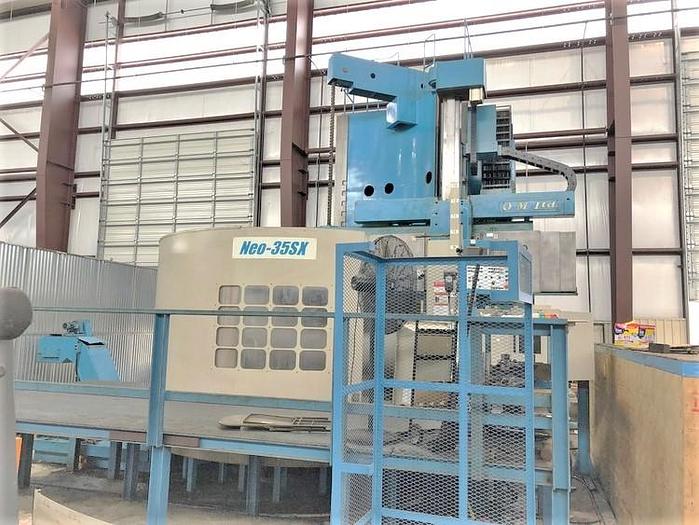

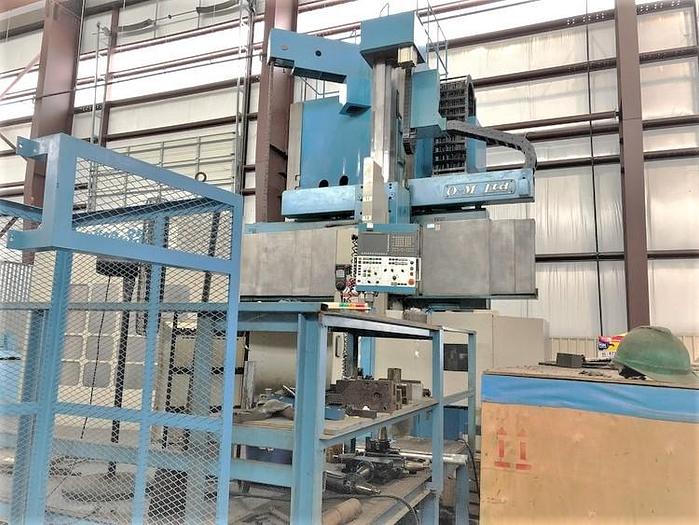

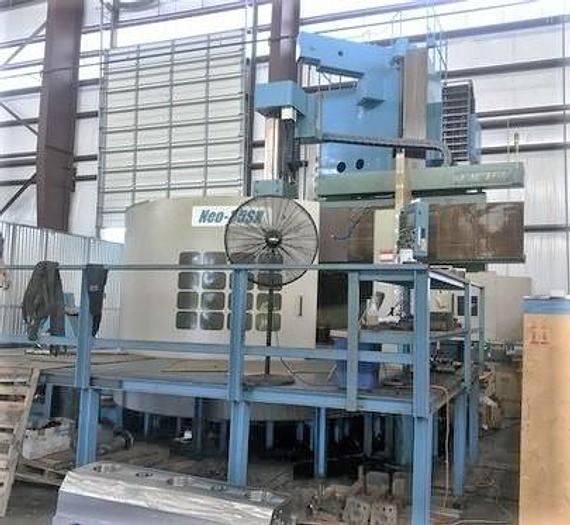

2014 O-M Ltd. NEO-35SX
No longer available
2014 O-M Ltd. NEO-35SX
$950,000 (USD)
Location:Texas
Description
16 Station Tool Changer

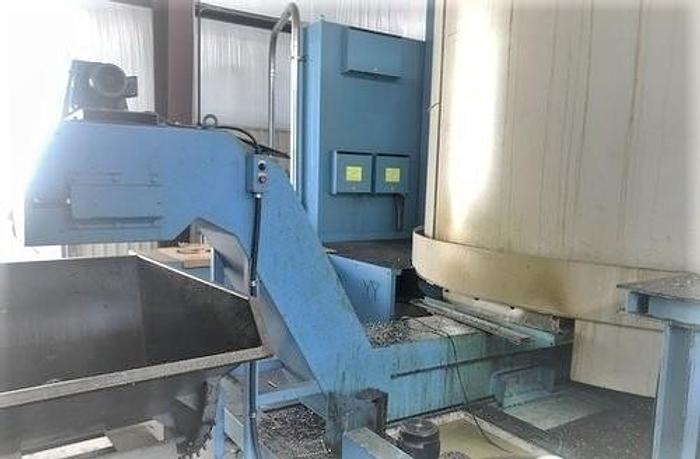

Chip Conveyor
Tool Presetter

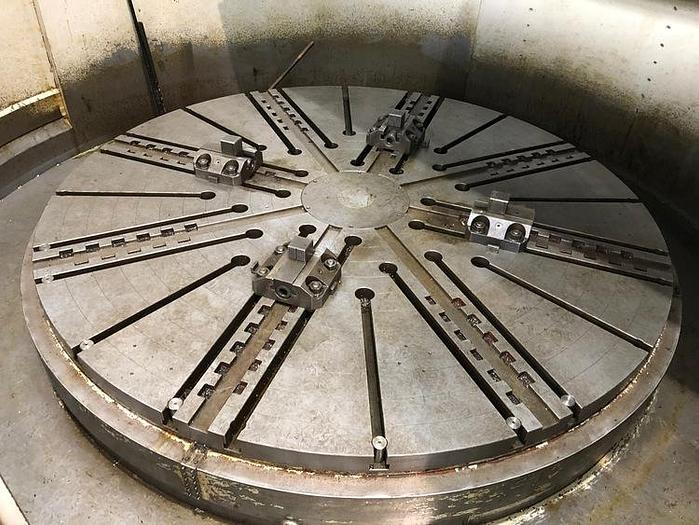

110.24" Diameter Work Table with 4 Top Jaws
Extended Column Height of 133.86"
Dual 50 HP Motors allowing for 100 HP
Remote Jog Handle
USB Port Interface
3.5" Floppy Drive Interface
RS 232 Port Interface
X Axis Scale
Work Light

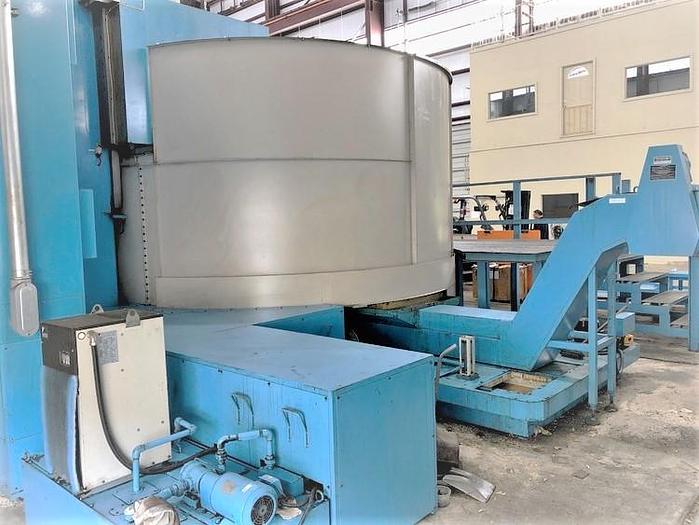

Coolant System with Tank & Pump
(12) Tool Holders
All Available Manuals
**Under power in a plant**
Specifications
| Manufacturer | O-M Ltd. |
| Model | NEO-35SX |
| Year | 2014 |
| Condition | Used |
| Stock Number | 118823 |

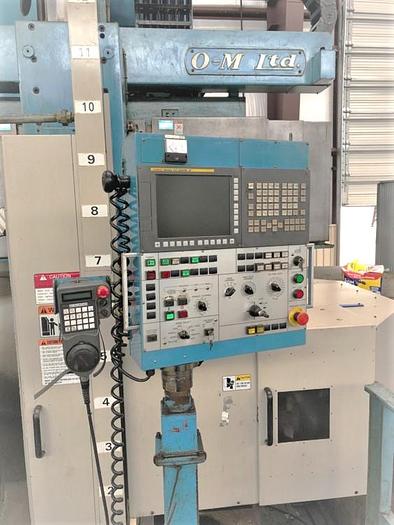

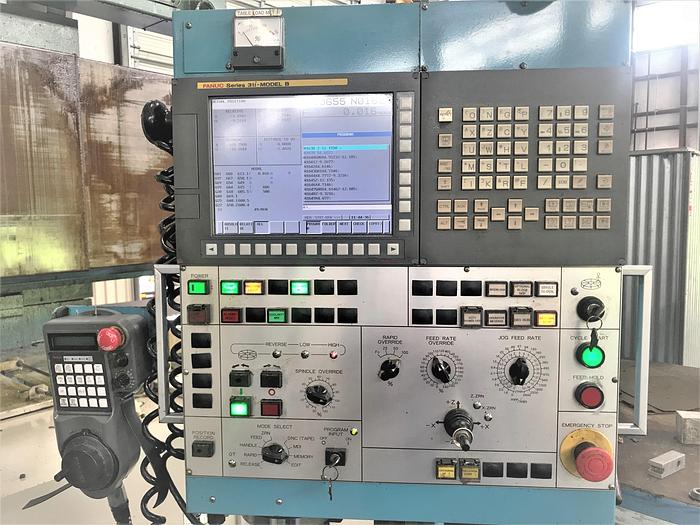

| Machine Control | Fanuc 31iB |
| Table Diameter | 110.24" |
| Table load capacity | 66,238 lbs. |
| Maximum Turning Height | 133.86" |
| Maximum Swing | 157.48" |
| Cross Rail Vertical Travel | 94.49" |
| Cross Rail Positioning | 13 Steps of 7.87" |
| Ram Stroke of Z Axis | 59.06" |
| Ram Cross Section | 9.45" x 9.45" |
| Table Speed | 1 - 100 RPM |
| Spindle Motor | 2 x 50 HP |
| Tool Magazine Capacity | 16 Station Tool Changer |
| Rapid Traverse Rates | 393 IPM |
| Machine Dimensions LxWxH | Not Available |
| Machine Weight | 154,350 lbs. |
