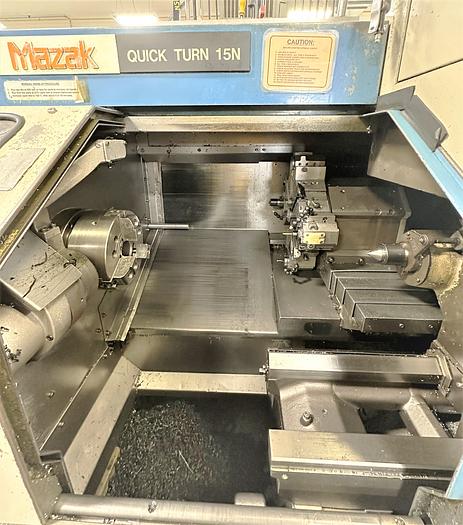

1991 Mazak QT15N
No longer available
1991 Mazak QT15N
$7,500 (USD)
Location:British Columbia, Canada
Description
8" 3 Jaw Hydraulic Chuck
Programmable Tailstock
Automatic Tool Eye RS 232 Port Interface Multi Tap Transfomer Complete Coolant System with Tank & Pump
All Available Tooling All Available Manuals
**1 Owner machine, in plant under power and runs very good, Maintenance history available upon request**
Specifications
| Manufacturer | Mazak |
| Model | QT15N |
| Year | 1991 |
| Condition | Used |
| Stock Number | 118813 |

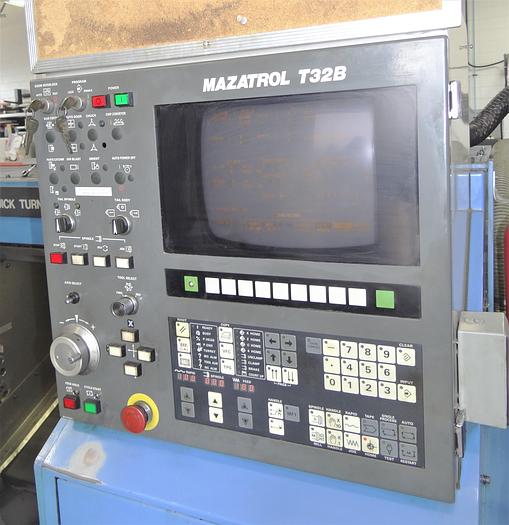

| Control | Mazatrol T32B Control |
| Maximum Swing over Bed | 17.32" |
| Maximum Swing Over Cross Slide | 11.81" |
| Maximum Cutting Length | 19.69" |
| Maximum Bar Capacity | 2.0" |
| X-Axis Travel | 7.09" |
| Z-Axis Travel | 20.08" |
| Spindle Nose / Spindle Bore | A2-6" / 2.44" |
| Spindle Speeds | 45 - 4,500 RPM |
| Spindle Motor | 20 HP |
| Number of Turret Positions | 8 Station Turret |
| Rapid Traverse Rates | 1180 IPM |
| Cutting Feedrates | 197 IPM |
| Tailstock Quill Diameter / Center | 3.15" / MT #4 |
| Machine Dimensions | 93" x 61" x 71" |
| Machine Weight | 9,020 lbs. |
