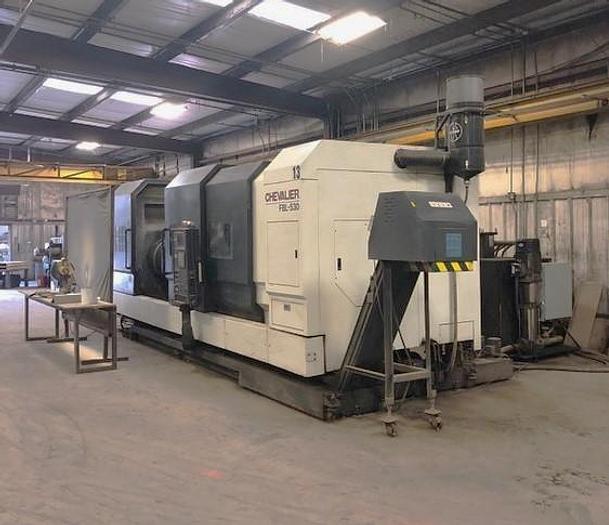

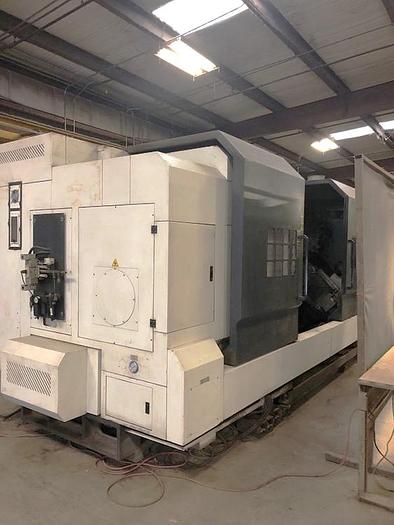

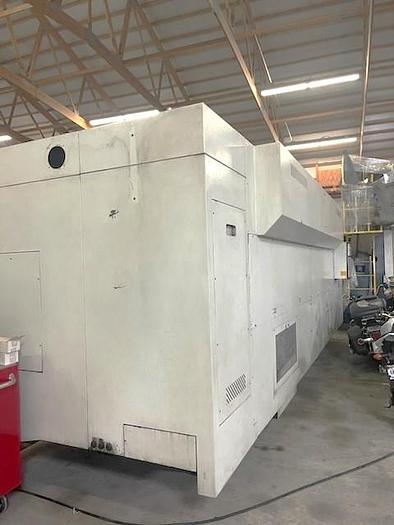

2013 Chevalier FBL-530C with 12.59" Bore
No longer available
2013 Chevalier FBL-530C with 12.59" Bore
$199,500 (USD)
Location:Oklahoma
Description

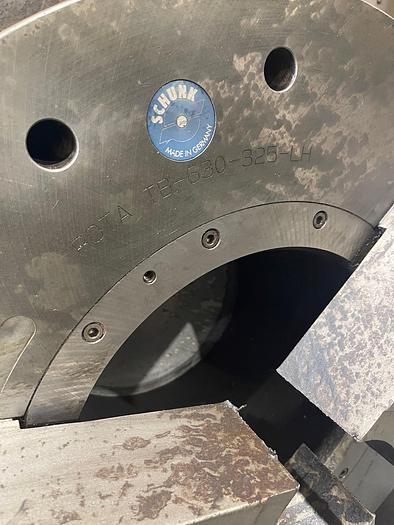

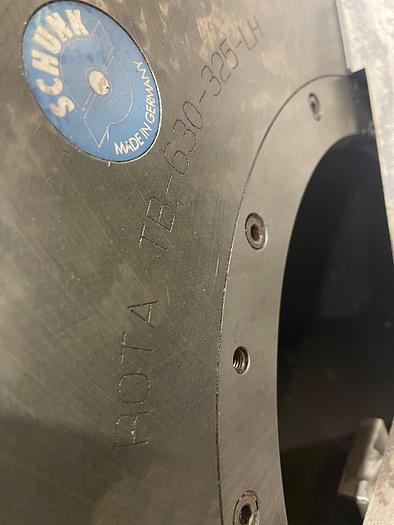

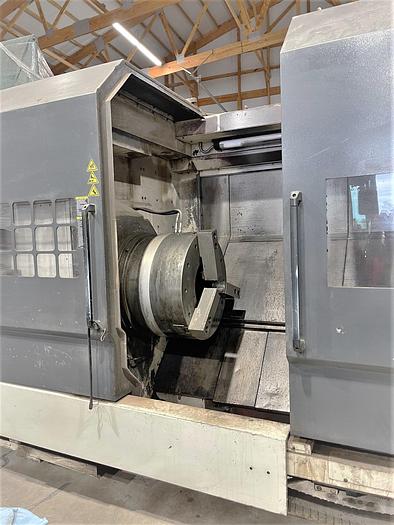

24.8" Schunk Model Rota TB-630-325-LH 3 Jaw Air Chuck with 12.8" Through Hole
Programmable Tailstock
Chip Conveyor
SMW Hydraulic Steady Rest
Rigid Tapping
Multiple Threads
Conversational Manual Guide I Programming
(4) Over Sized Box Ways

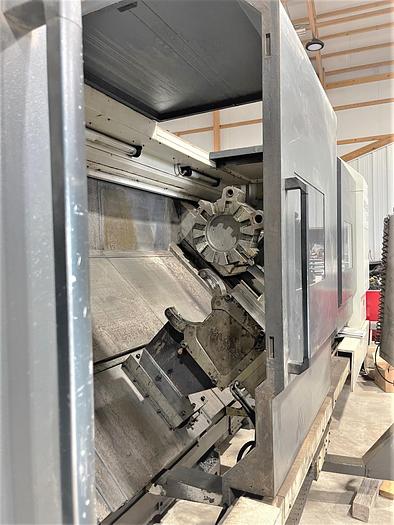

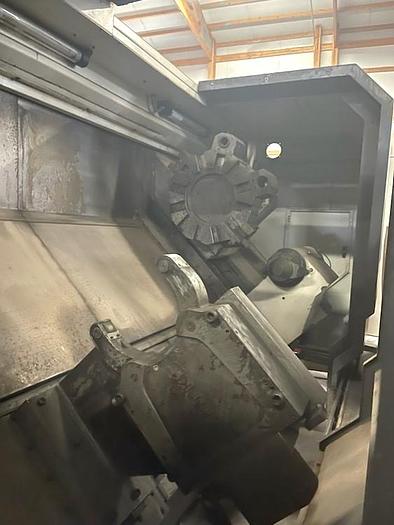

45 Degree Slant Bed
3.5" Floppy Disc Interface
RS 232 Port Interface

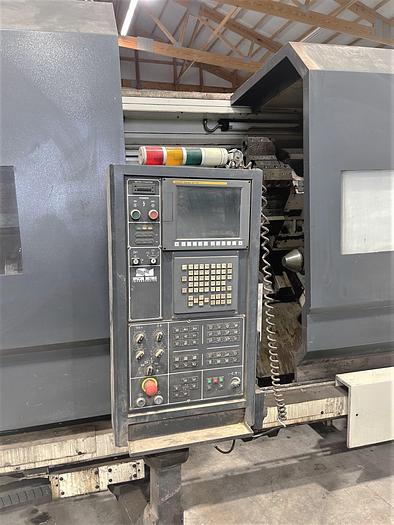

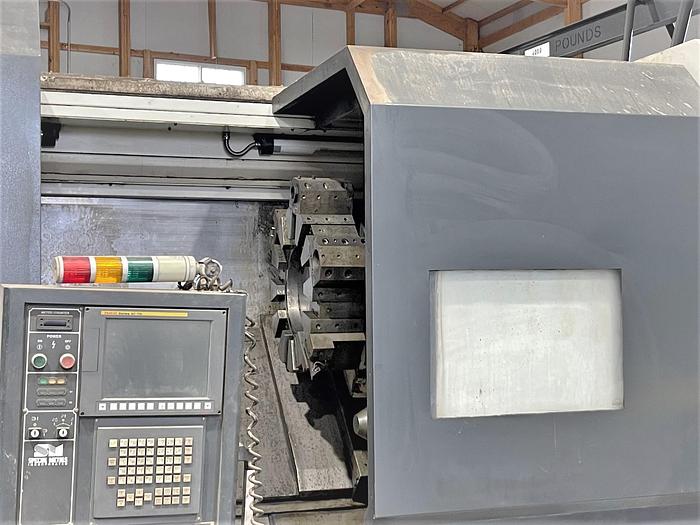

3 Color Machine Status Condition Lights
All Available Tool Blocks
All Available Manuals
**Similar Design to Doosan Puma 800LB**
**ONLY Used for 14 months one shift**
**Optional SMW-Autoblok 28" Diameter Air Chuck with 12.2" Diameter Bore**
Specifications
| Manufacturer | Chevalier |
| Model | FBL-530C with 12.59" Bore |
| Year | 2013 |
| Condition | Used |
| Stock Number | 118810 |

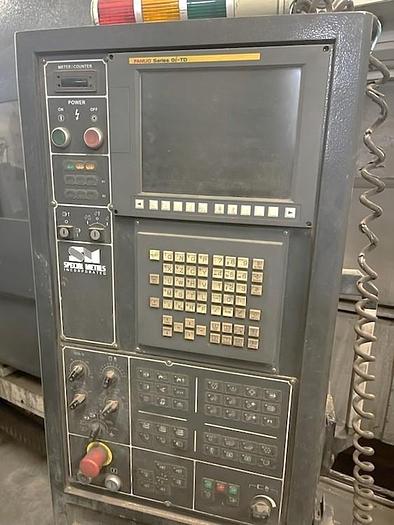

| Machine Control | Fanuc Oi-TD |
| Chuck Size | 24.8" 3-Jaw Schunk Air Chuck |
| Maximum Swing over Bed | 40.55" |
| Maximum Swing Over Cross Slide | 31.49" |
| Maximum Turning Diameter | 37" |
| Maximum Machining Length | 118.11" |
| X-Axis Travel | 19.29" |
| Z-Axis Travel | 118.11" |
| Spindle Nose / Bore / Bar Capacity | A2-20" / 12.59" / 12.5" |
| Spindle Speed | 500 RPM |
| Spindle Motor | 60 HP - 3-Speed Geared |
| Maximum Torque | 4,135 NM@104 rpm |

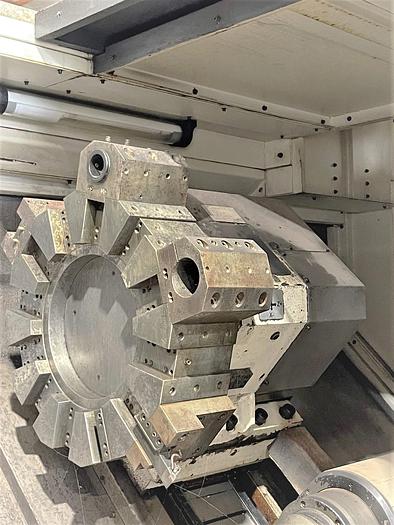

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X / Z | 394 IPM / 472 IPM |
| Tailstock Body Travel | 118.11" w/o use of steady rest |
| Tailstock Quill Diameter / Quill Travel / Taper | 7.87" / 3.94" / MT6 Rotary Quill |
| Machine Dimensions LxWxH | 338.66" x 117" x 99.60" |
| Machine Weight | 50,600 lbs |
