1998 Daewoo Puma 400LB
No longer available
1998 Daewoo Puma 400LB
$59,950 (USD)
Location:Oklahoma
Description

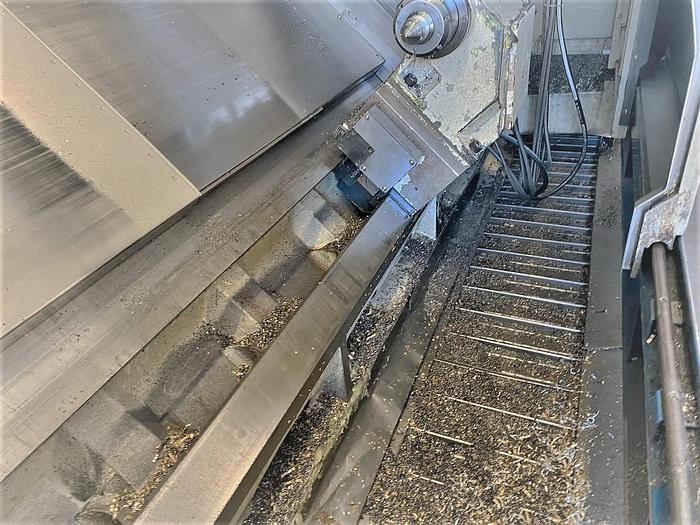

Chip Conveyor

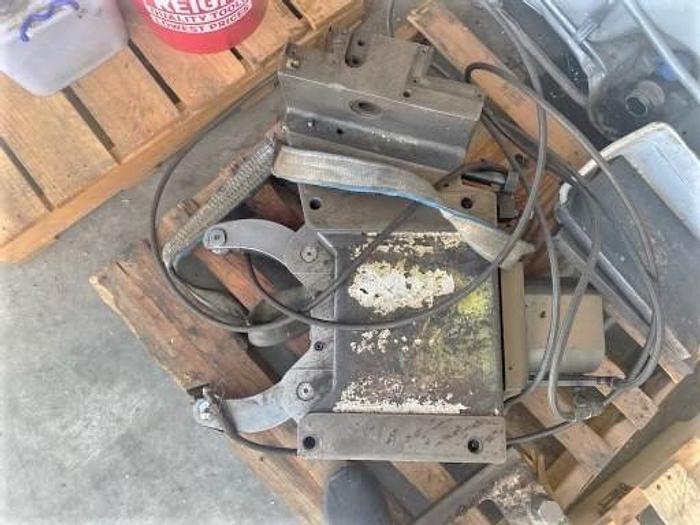

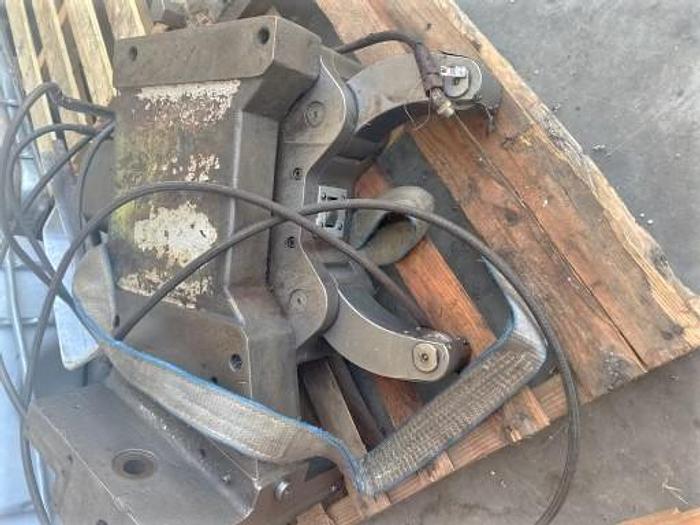

Hydraulic Steady Rest

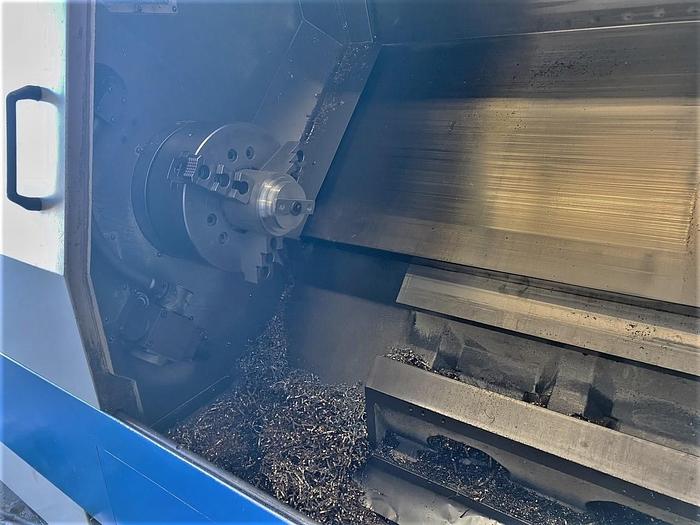

15" 3 Jaw Hydraulic Chuck
Tailstock
Tool Presetter
RS 232 Port Interface
Coolant System with Tank & Pump
All Available Manuals
Tooling includes:
(3) Boring Bar Holders
(5) Turning wedges
Miscellaneous Chuck Jaws
7,298 Cutting Hours
Very well cared for
Specifications
| Manufacturer | Daewoo |
| Model | Puma 400LB |
| Year | 1998 |
| Condition | Used |
| Stock Number | 118805 |
| Machine Control | Fanuc 18T |
| Chuck Size | 15" 3-Jaw Hydraulic |
| Maximum Swing over Bed | 30.3" |
| Maximum Turning Diameter | 21.7" |
| Maximum Turning Length | 81.7" |
| Distance Between Centers | 86" |
| X-axis travel | 14.2" |
| Z-Axis Travel | 84.8" |
| Spindle Nose / Bore / Bar Capacity | A2-11" / 5.2" / 4.62" |
| Spindle Speed | 2,000 RPM |
| Spindle Motor | 50 HP |

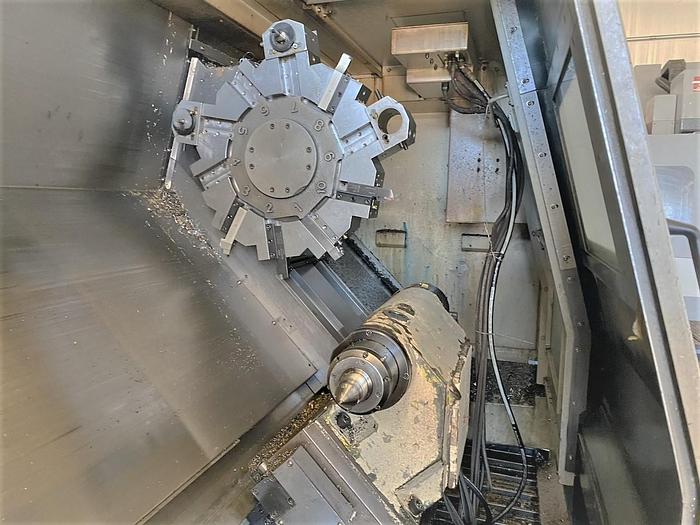

| Number of Turret Positions | 10 Position Turret |
| Rapid Traverse Rates X/Z | 630 IPM / 710 IPM |
| Tailstock Body Travel / Quill Travel | 80.7" / 4.7" |
| Machine Dimensions LxWxH | 194" x 97" x 90" |
| Machine Weight | 33,100 lbs |
