2013 Haas VF2SS YT
2013 Haas VF2SS YT
$64,500 (USD)
Location:North Carolina
Description
40+1 Position Side Mounted Tool Changer
Haas Wireless Probing Tool & Part Probing - Renishaw
300 PSI Coolant Thru the Spindle
4th Axis Drive & Wiring
5th Axis Drive & Wiring
Servo Auto Door
Programmable Coolant Nozzle
Multi Auger Style Chip Conveyor
Spindle Orientation
User Definable Macros
Coordinate Rotation & Scaling
High Speed Machining
High Intensity Lighting
55 Gallon Coolant System with Tank & Pump
Ethernet Interface
USB Port Interface
RS 232C Port Interface for DNC Operation
Internal High Voltage Isolated Transformer
Wired 360/480V Electrics
Rigid Tapping
750 MB Expanded Memory
All Available Manuals

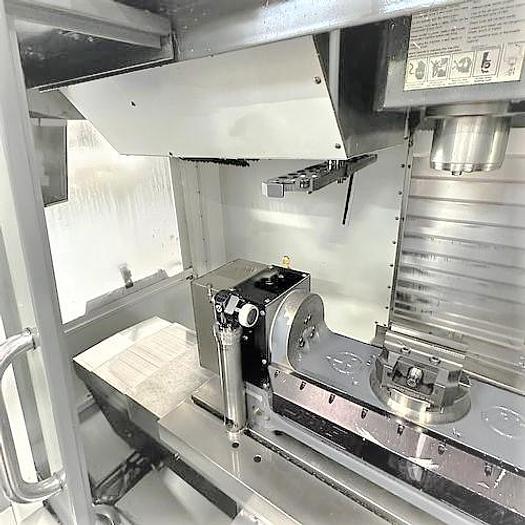

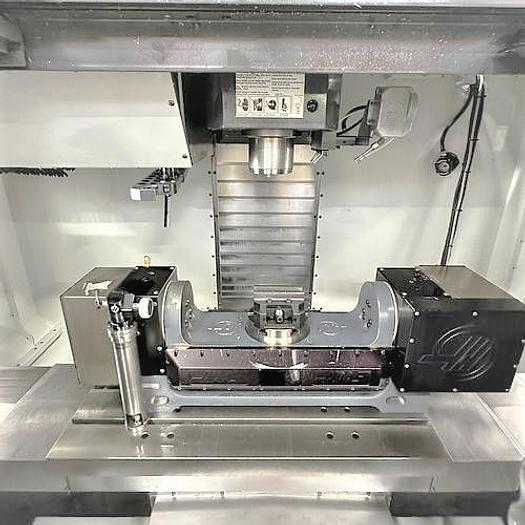

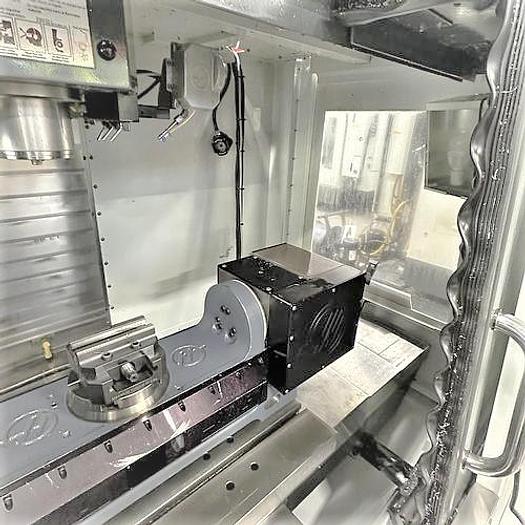

**The TR160 Table in the pictures doe NOT go with the machine, but can be included for an additional $17,000**

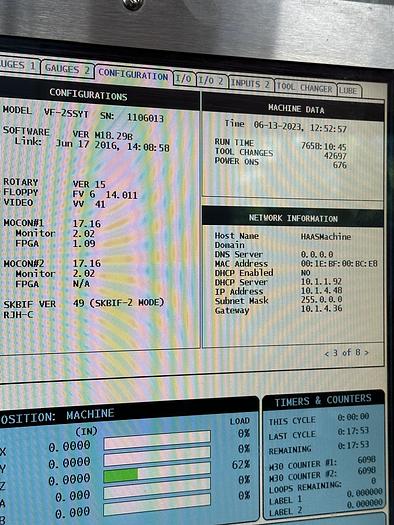

**Machine Run Time hours are 7,658, estimated spindle run hours based off this are 2,500-3,000**
**Priced as equipped at $140,735 today**
Specifications
| Manufacturer | Haas |
| Model | VF2SS YT |
| Year | 2013 |
| Condition | Used |
| Stock Number | 118797 |
| Pallet Size / Number of Pallets | 36" x 18" |
| Max table load | 1,500 lbs |
| X axis travel | 30" |
| Y axis travel | 20" |
| Z axis travel | 20" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4" - 24" |
| Number of tool positions | 40 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 106" x 101" x 101 " |
| Machine weight (approximately) | 9,500 lbs. |
