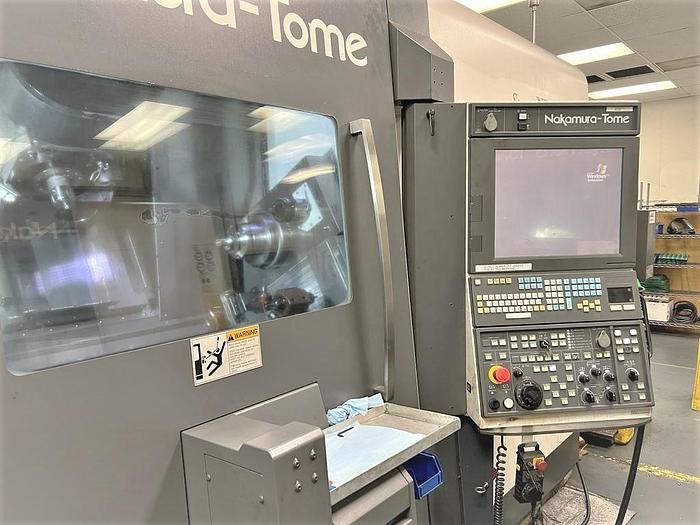

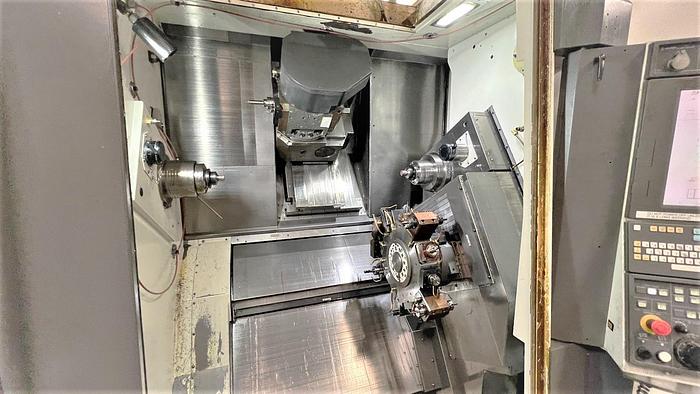

2011 Nakamura Tome Super NTJX Multi Axis Mill Turn Center
No longer available
2011 Nakamura Tome Super NTJX Multi Axis Mill Turn Center
$149,500 (USD)
Location:California
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis on both Upper and Lower Turrets
Subspindle

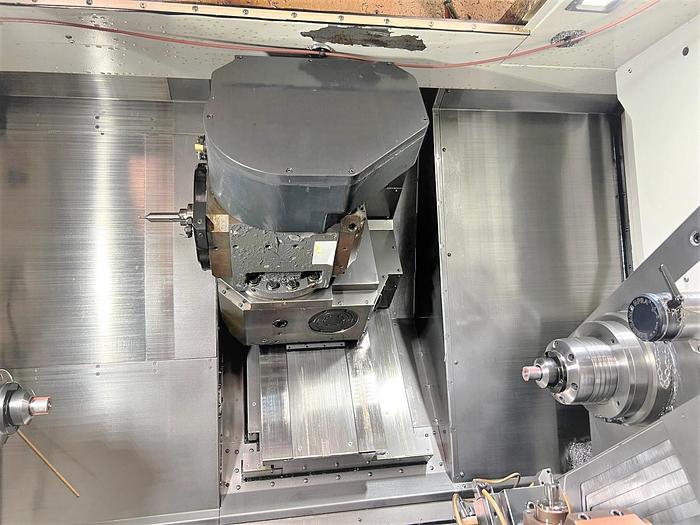

Pendulum Style B Axis Turret with CAPTO -C6 Tool Shank

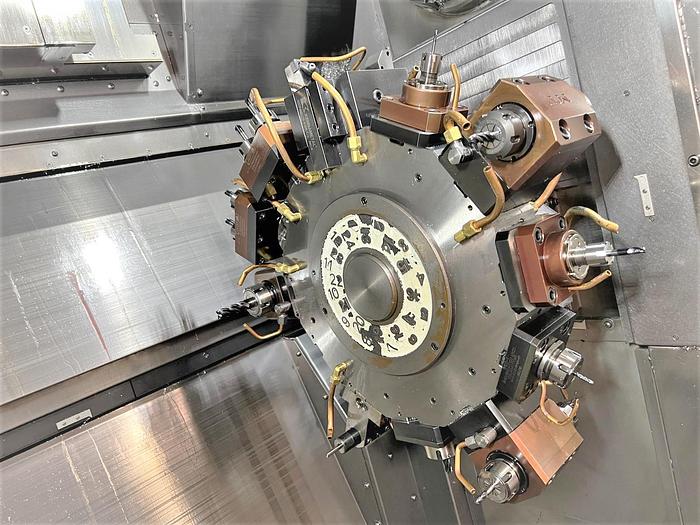

Lower 24 Station Turret
Tool Probing
Chip Conveyor
Parts Catcher
Collet Chucks on Both Spindles

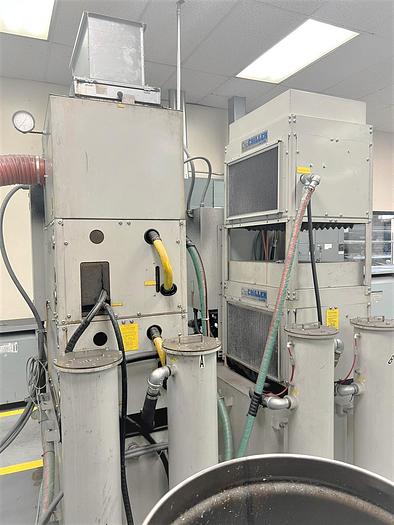

High Pressure Coolant System
Remote Jog Handle

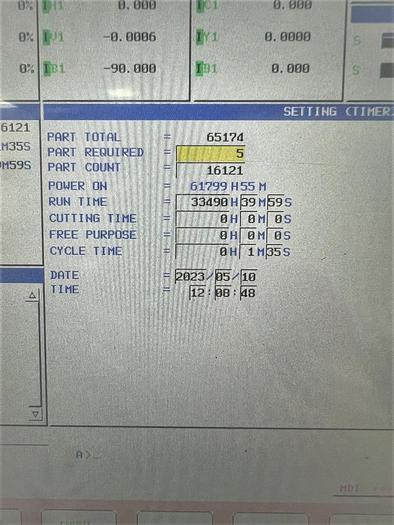

**Run Time Hours 33,498**
Specifications
| Manufacturer | Nakamura Tome |
| Model | Super NTJX Multi Axis Mill Turn Center |
| Year | 2011 |
| Condition | Used |
| Stock Number | 118796 |
| Chuck size (2) | Collet Chuck / Collet Chuck |
| Maximum turning diameter | 9.64" |
| Maximum turning length | 42.91" |
| Distance between spindle noses | 8.26" - 50.78" |
| Bar capacity (left / right) | 2.5" |
| X axis travel x1 / x2 | 17.91" / 8.75" |
| Z axis travel - z1 / z2 | 42.91" / 39.56" |
| Y axis travel upper turret/lower turret | 5.52" / 2.747" |
| W axis travel (subspindle) | 39.68" |
| C axis indexing | .001 Degree |
| B-axis travel (tilt-side to side) | +/- 95 Degree (190 Degrees total) |
| Spindle nose / bore - both spindles | A2-6"/3.15" |
| Spindle speed (both) | 4,500 RPM |
| Spindle motor left / right | 20 HP / 15 HP |
| B axis speed / hp | 12,000 RPM / 10 HP |
| Lower rotary motor / speeds | 7.5 HP / 3,600 RPM |
| Tool capacity | 40 Station ATC |
| Tool shank | Capto C6 |
| Number of positions on lower turret | 12 Station Turret |
| Machine Dimensions | 186" x 115" x 97" |
| Machine weight | 30,870 lbs |
