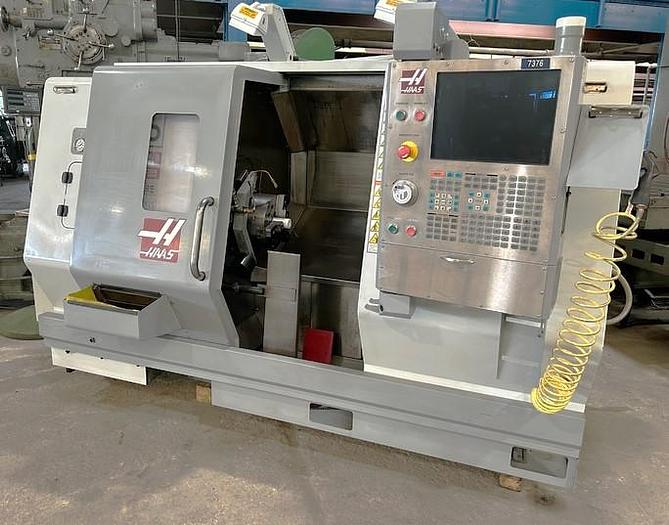

2007 Haas TL-15B with Milling & Subspindle
No longer available
2007 Haas TL-15B with Milling & Subspindle
Location:Illinois
Description
Full C Axis Spindle Rotation

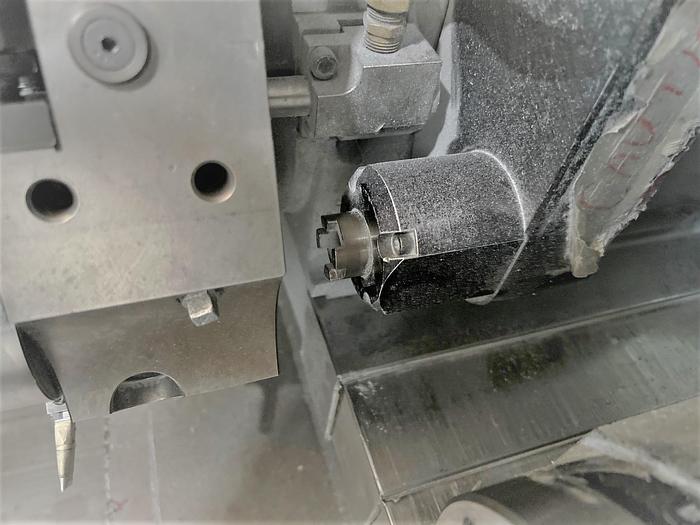

Live Milling / Drilling Capability

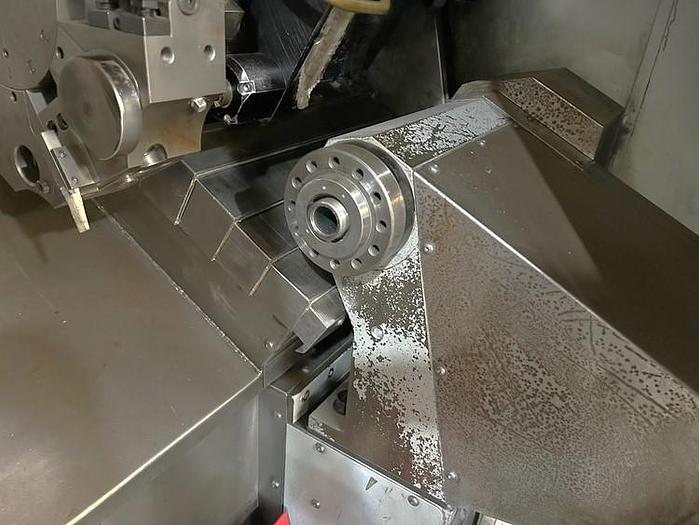

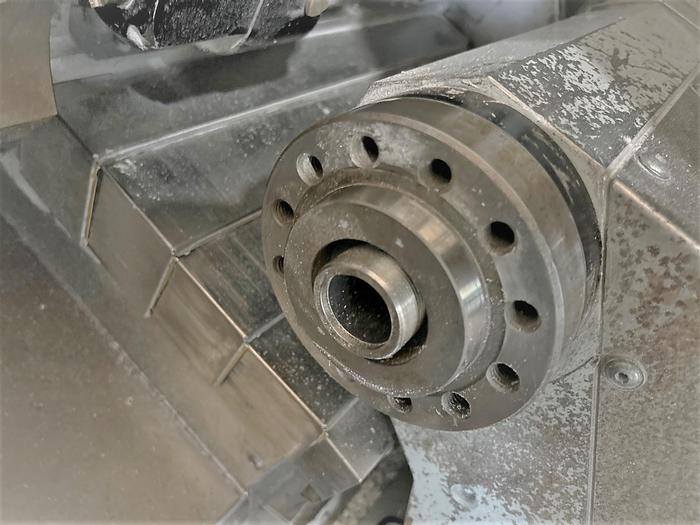

Subspindle
Big Bore Spindle Option with 2.5" Bar Capacity through main spindle

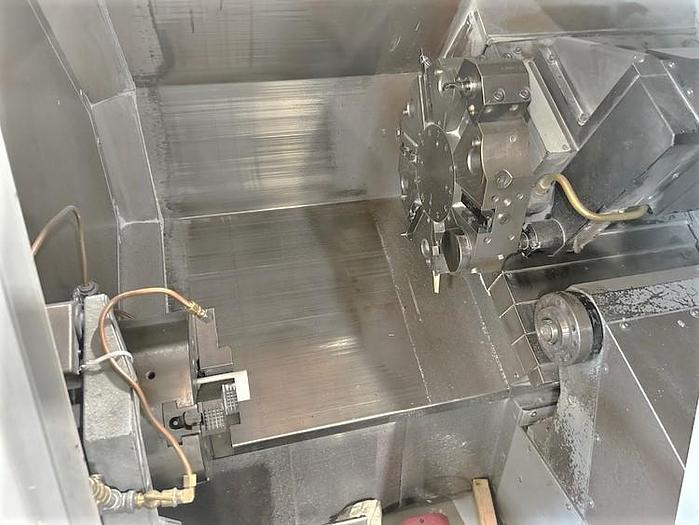

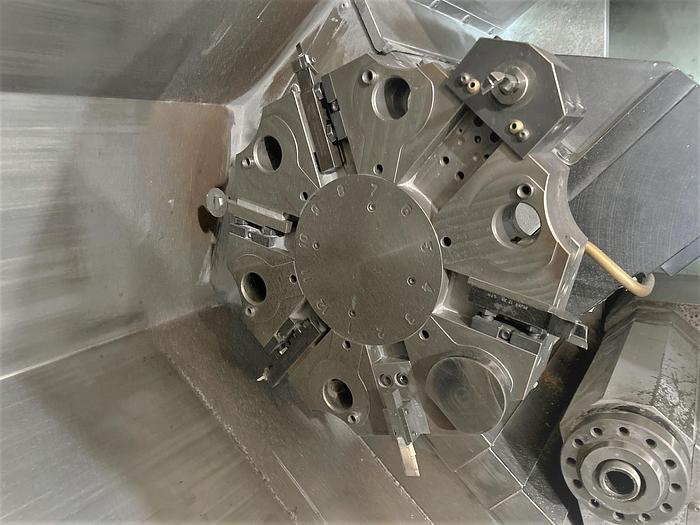

12 Position Hybrid Turret (6 Live / 6 Bolt On)

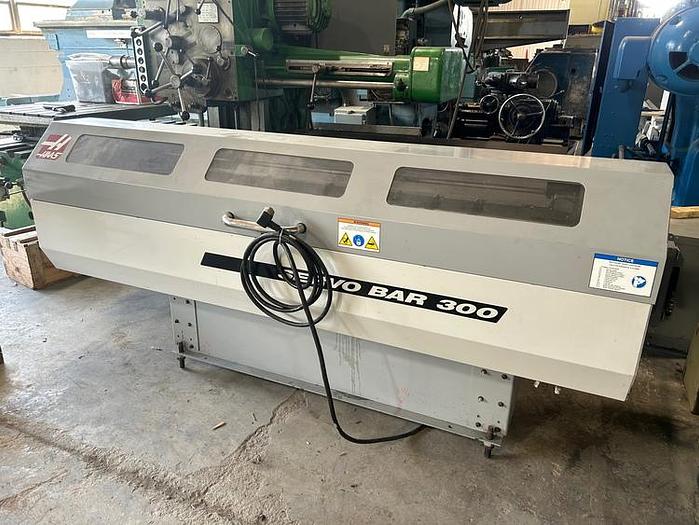

Haas Servo Bar 300 Bar Feeder

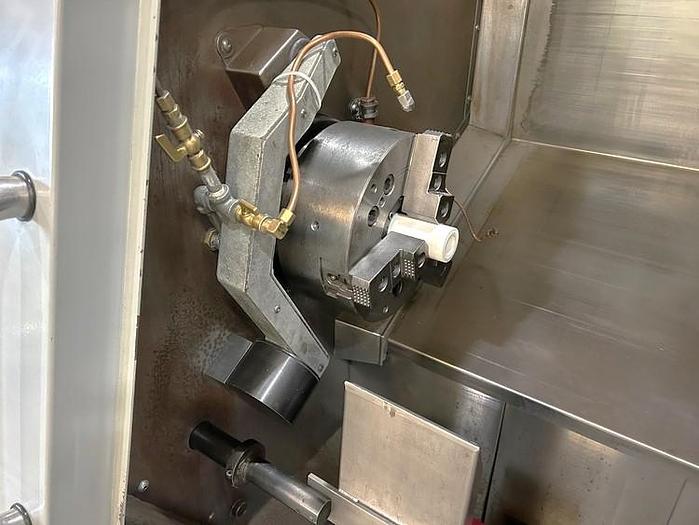

10" 3-Jaw Hydraulic Chuck for Main Spindle
Tool Presetter
Spindle Orientation
Rigid Tapping
High Intensity Lighting
Standard Coolant Tank with Pump

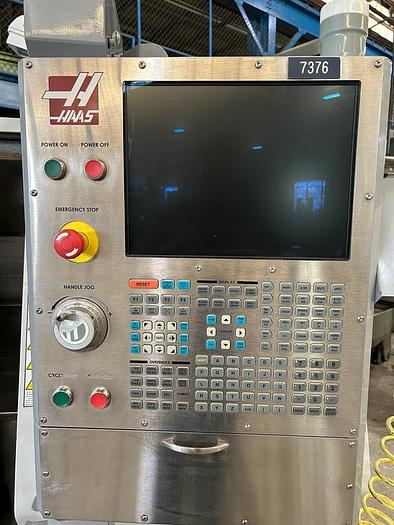

USB Port Interface
RS 232 Port Interface
Wired 230V Electrics
Includes ONLY Static Tool Holders, but is live tool capable
**ONLY 3,742 Run Time Hours**
Specifications
| Manufacturer | Haas |
| Model | TL-15B with Milling & Subspindle |
| Year | 2008 |
| Condition | Used |
| Stock Number | 118794 |
| Chuck Sizes Main / Subspindle | 10" Hydraulic / No Chuck |
| Maximum Swing over Bed | 23" |
| Maximum Swing Over Cross Slide | 9.5" |
| Maximum Cutting Diameter | 8.2" |
| Maximum Distance Between Spindles | 17.5" |
| X-Axis Travel | 7.5" |
| Z-Axis Travel | 18.5" |
| C-Axis Rotation | .001 Degree |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.0" / 2.5" |
| Spindle Speeds | 3,400 RPM |
| Spindle Motor | 30 HP |
| Subspindle Bore / Bar Capacity | A2-5" / 1.18" |
| Subspindle Speed | 4,000 RPM |
| Subspindle Motor | 8 HP |
| Rotary Tool Speed / Rotary Motor | 3,000 RPM / 5 HP |
| Turret Type | 12 Positions - (6 Live and 6 Bolt On) |
| Rapid Traverse Rates | 710 IPM |
| Machine Dimensions LxWxH | 96" x 62" x 70" |
| Machine Weight | 9,000 lbs |
