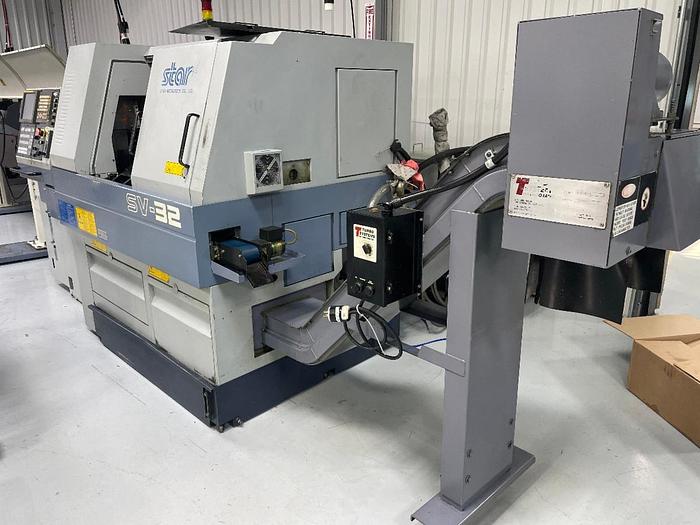

2003 Star SV-32
No longer available
2003 Star SV-32
Location:Connecticut
Description

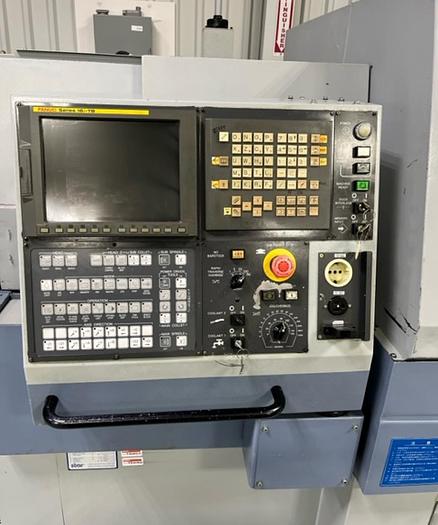

9-Axis Fanuc Control
LNS Chip Conveyor

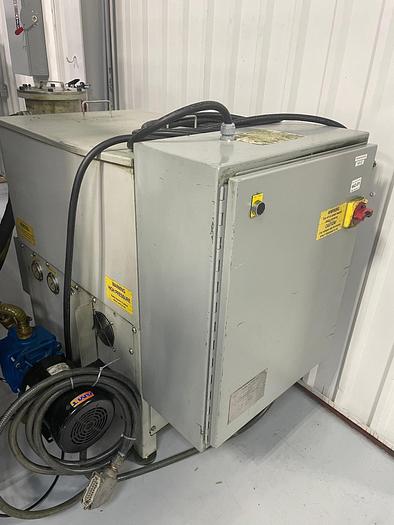

Chip Blaster Pump
FMB 336 Barfeed
**New Parts Installed**
**X-Axis Ballscrew & Bearings
**Y-Axis Ballscrew & Bearings
**Way Lube Pump
**Main Spindle Toggles
**Sub Spindle Toggles
**Cabinet Fan
**Cutting Room LIghts (LED Replacement)
**Door Limit Switch
Rebuilt Counter Unit
Full Machine Alignment
1 Year Fanuc Warranty
Magic Guide Bushing

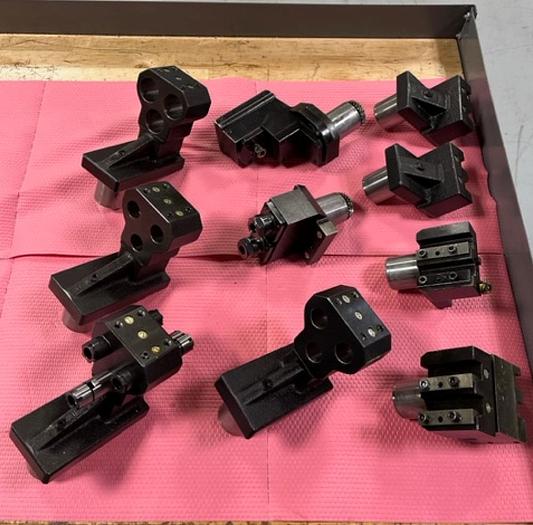

431-12-00 qty of 3 drill holder
431-11-00 qty of 1 drill holder
431-51-00 qty of 1 2 spindle cross live
431-55-00 qty of 1 angle live head
431-02-00 qty of 2 triple turn
431-03-00 qty of 2 triple turn
Specifications
| Manufacturer | Star |
| Model | SV-32 |
| Year | 2003 |
| Condition | Used |
| Stock Number | 118775 |
| Maximum Turning Diameter | 1.25" |
| Maximum Headstock Stroke | 12.203" |
| Number of Turret Positions | 10 |
| Gang Style Number of Tools | 4 |
| Maximum Drilling Capacity | .906" |
| Maximum Tapping Capacity | M12xP1.75 |
| Number of Live Tools Gang Style | 3 |
| Number of Live Tools on Turret | 2 |
| Maximum Drilling Diameter on Live Tools | .312" |
| Maximum Tapping on Live Tools | M8xP1.25 |
| Maximum Milling Capacity on Live Tools | .39" |
| Maximum Slotting on Live Tools | Width .079" / Depth .394" |
| Spindle Speed | 7,000 rpm |
| Spindle motor 30 min. / cont. | 7.5 kw / 5.5 kw |
| Subspindle Chucking Diameter | 1.25" |
| Maximum Length for Front Ejection | 5.875" |
| Maximum Part Projection Length | 2.234" |
| Backworking Attachment Numer of Tools | 3 / 1 Face |
| Backworking Attachment Drilling Capcity | .5" |
| Backworking Attachment Tapping Capacity | M12xP1.75 |
| Main Spindle Indexing | Full C-Axis |
| Subspindle Indexing | Full C-Axis |
| Subspindle Speed | 7,000 rpm |
| Subspindle Motor | 2.2 kw / 3.7 kw |
| Machine Dimensions LxWxH | 104"x55.31"x66.14" |
| Machine Weight | 8,377 lbs |
