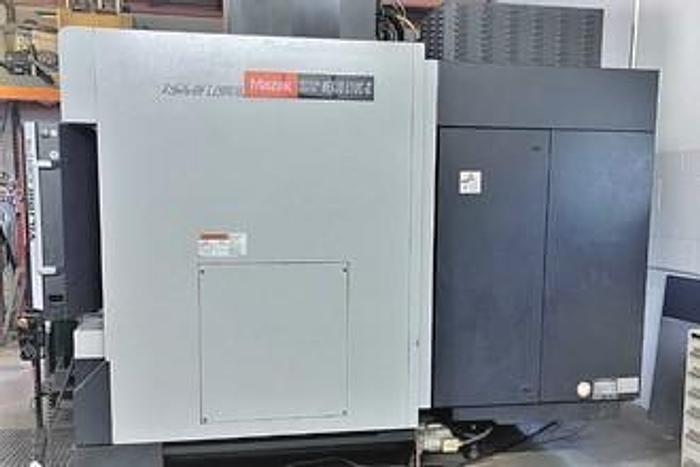

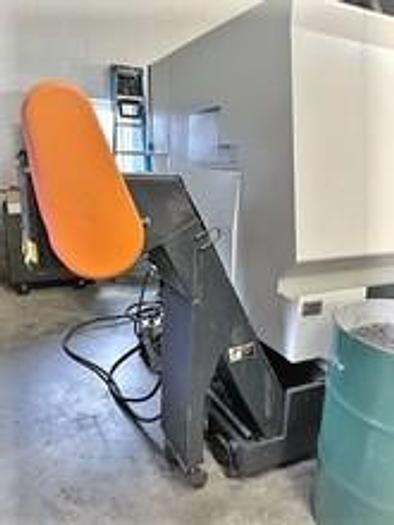

2007 Mazak Nexus VCN 510C II
No longer available
2007 Mazak Nexus VCN 510C II
$59,500 (USD)
Location:Utah
Description
Automatic Tool Length Measurement Probe
Mazak Monitoring System B Part Probe Ready (needs a $1500 repair)
Chip Conveyor
Coolant Through the Spindle 30 Station Side Mounted Tool Changer Remote Hand Held MPG
Coordinate Rotation & Scaling Rigid Tapping
EIA/ISO Input Function
EIA 3D Compensation
EIA Helical Tapping Cycle
EIA Pattern Cycle
Threading G54.1
Pitch Error Compensation
Polar Coordinates Input
Tilted Work Plane
Shape Compensation
Comparison Stop
Variable 600 Sets
Inverse Time
EXT-Data Input/Output
Geometric
Spiral Interpolation PCMCIA Interface 2 Slots USB Port Interface 3.5" Floppy Disk Drive Interface RS-232 Port Interface Multi Tap Transformer
Coolant Tank with Pump

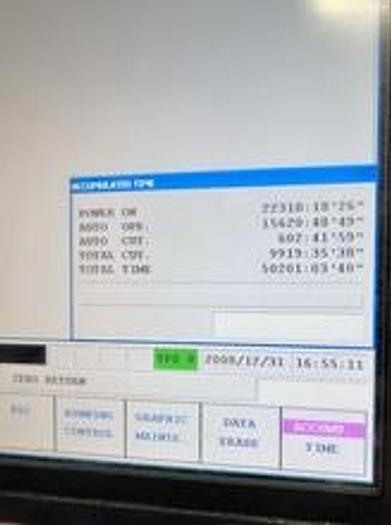

**Cutting Hours of 9,919**
**Primarily used to cut aluminum**
Specifications
| Manufacturer | Mazak |
| Model | Nexus VCN 510C II |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118774 |

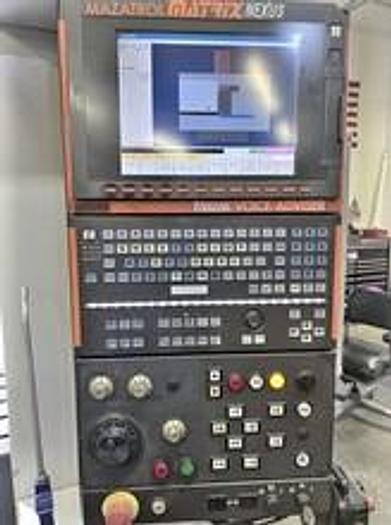

| Control | Mazatrol Matrix Nexus |

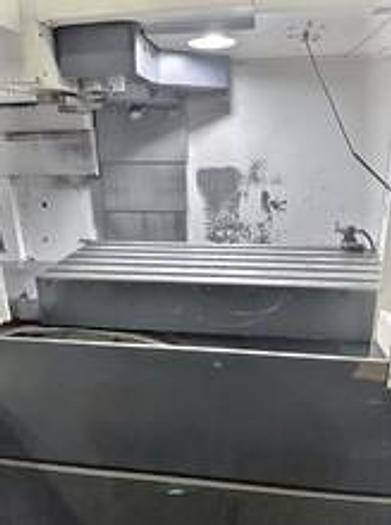

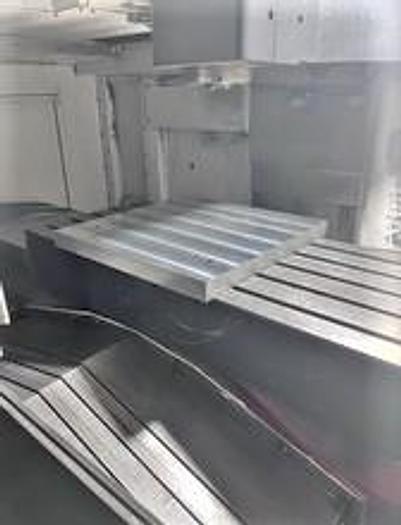

| Table Size | 51.18" x 21.65" |
| Maximum Table Load | 2,646 lbs. |
| X-Axis Travel | 41.3" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 20" |
| Spindle Taper | CAT #40 |
| Spindle Speeds | 12,000 RPM |
| Spindle Motor | 25 HP |
| Distance Spindle Nose to Table Top | 5.9" - 25.98" |
| Number of Tool Positions | 30 Station Tool Changer - Side Mounted |
| Maximum Tool Diameter / Length / Weight | 4.92" / 13.8" / 17 lbs. |
| Tool Change Time Tool to Tool | 1.3 seconds |
| Rapid Traverse Rates | 1,417 IPM |
| Machine Dimensions | 113" x 111" x 113" |
| Machine Weight | 17,180 lbs. |
