2005 Mazak Variaxis 630-5X
No longer available
2005 Mazak Variaxis 630-5X
$59,950 (USD)
Location:California
Description

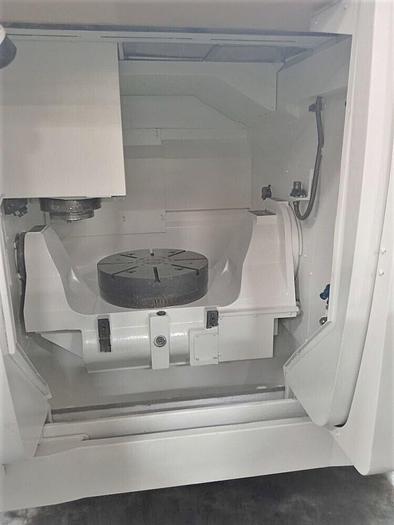

5 Axis Machining Ability Full 4th Axis Rotary Table - 360,000 Degree Trunnion A Axis Table Coolant Thru the Spindle - 71 PSI Chip Conveyor Prepped for Renishaw MP-10 Part Probe & Renishaw NC4 Laser Tool Setting Probe
Hydraulic Work Holding Fixture Prepped
40 Station Tool Changer Tool Breakage Detection Tool Life Monitoring Adaptive Feedrate Control IC Memory Card Interface RS-232C Port for DNC Interface 3.5" Floppy Disk Drive PCMCIA Type II Interface -2 slots All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | Variaxis 630-5X |
| Year | 2005 |
| Condition | Used |
| Stock Number | 118773 |

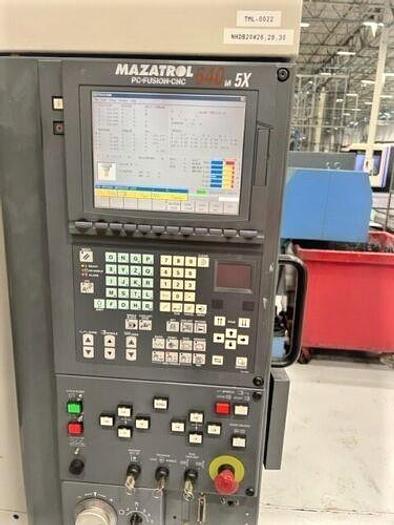

| Control | Mazatrol Fusion 640M5X |
| Pallet Size / Number of Pallets | 19.69" x 19.69" / 2 pallet |
| Maximum Table Load | 1,102 lbs. |
| X-Axis Travel | 24.8" |
| Y-Axis Travel | 30.12" |
| Z-Axis Travel | 23.62" |
| A-Axis Travel (Table Tilt) | -120 Degrees thru + 30 Degrees |
| C-Axis Travel (Table Rotation) | .001 Degree - 360,000 positions |
| Distance Spindle Nose to Table Top | 9.06" - 29.13" |
| Maximum Workpiece Diameter / Height | 24.8" / 19.69" |
| Spindle Taper | CAT #40 |
| Spindle Speeds | 12,000 RPM |
| Spindle Motor | 40 HP |
| Number of Tool Positions | 40 Station Tool Changer |
| Tool Change Time Tool to Tool | 3.6 seconds |
| Tool Change Time Chip to Chip | 9 seconds |
| Machine Dimensions | 202.84" x 123.82" x 130.12" |
| Machine Weight | 33,069 lbs. |
