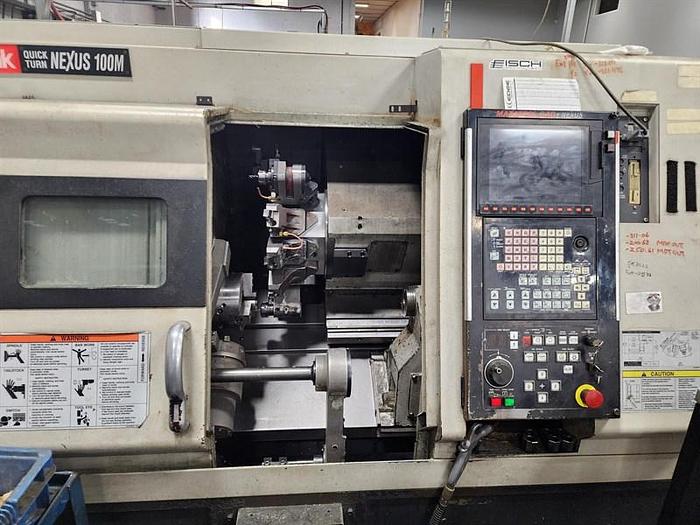

2006 Mazak Nexus QTN100M
No longer available
2006 Mazak Nexus QTN100M
British Columbia, Canada
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability
Automatic Tool Eye
Auto Parts Catcher
Chip Conveyor
Synchronized Tapping
Background Tool Path Check
Floppy Disk Drive Interface
RS 232 Port Interface
Coolant Tank with Pump
Some Rotary & Static Tool Holders
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN100M |
| Year | 2006 |
| Condition | Used |
| Stock Number | 118770 |
| Machine Control | Mazatrol Fusion 640T Nexus |
| Chuck Size | 6" 3-Jaw Hydraulic |
| Maximum Swing | 21.65" |
| Maximum Turning Diameter | 11" |
| Maximum Turning Length | 12.1" |
| Distance Between Centers | 12.2" |
| X-Axis Travel | 7.25" |
| Z-Axis Travel | 13" |
| C-Axis Rotation | .001 Degrees |
| Spindle Nose / Bore / Bar Capacity | A2-5" / 2" / 1.6" |
| Spindle Speed | 6,000 RPM |
| Spindle Motor | 15 HP |
| Rotary Tool Speed / Rotary Motor | 4,500 RPM/ 7.5 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X / Z | 1181 ipm / 1299 ipm |
| Tailstock Quill Diameter / Travel | 3.1" / 3.1" |
| Tailstock Quill Travel | 12" |
| Machine Weight | 7,700 lbs |
