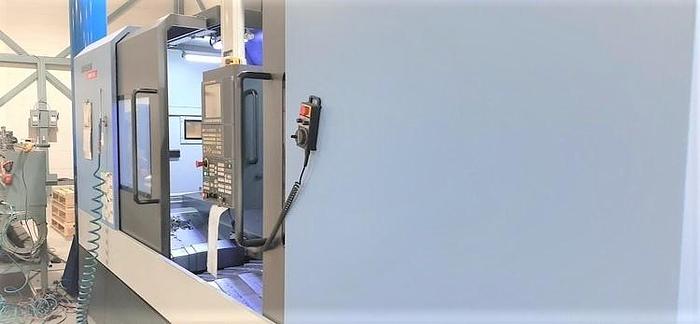

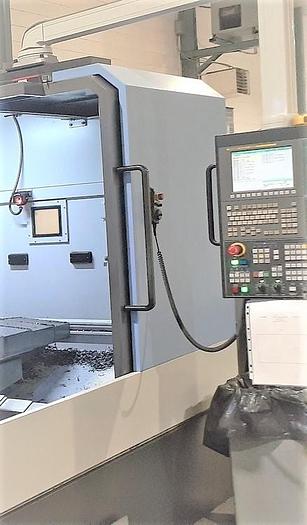

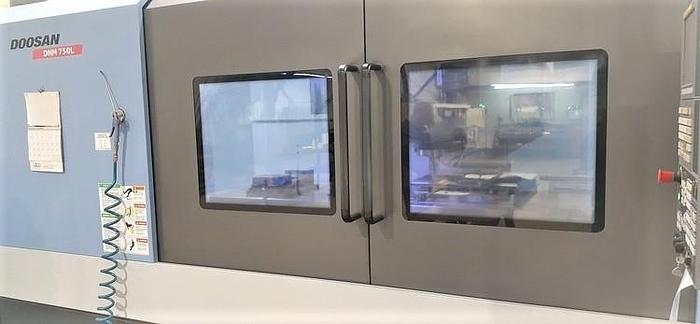

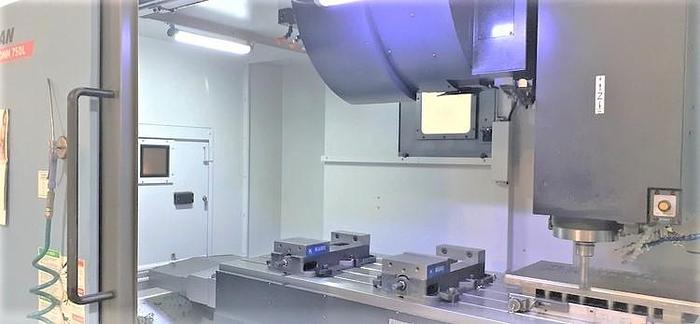

2014 Doosan DNM 750L
No longer available
2014 Doosan DNM 750L
$159,500 (USD)
Location:Ontario, Canada
Description
Prewired for 4th Axis
30 Station Side Mounted Tool Changer
Probing Package Chip Conveyor 12,000 RPM Spindle
High Pressure Coolant Through the Spindle
Spindle Chiller Unit Flood Coolant Hand Held MPG
Rigid Tapping
RS 232 Port Interface All Available Manuals
Specifications
| Manufacturer | Doosan |
| Model | DNM 750L |
| Year | 2014 |
| Condition | Used |
| Stock Number | 118769 |

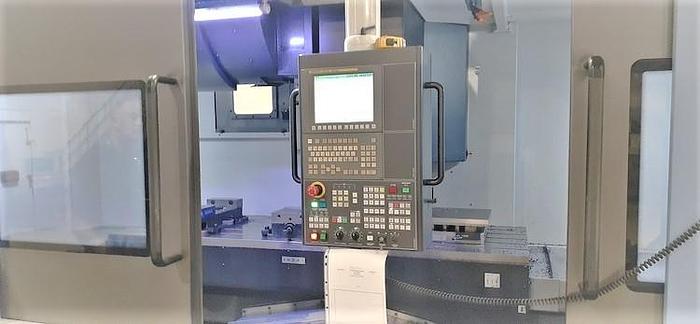

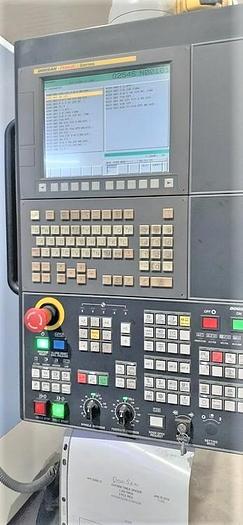

| Control | Fanuc i Series Control |
| Table Size | 85" x 29.96" |
| Maximum Table Load | |
| X-Axis Travel | 85" |
| Y-Axis Travel | 30" |
| Z-Axis Travel | 24.6" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 12,000 RPM |
| Spindle Motor | 25 HP |
| Number of Tool Positions | 30 Station Tool Changer - Side Mounted |
| Maximum Tool Diameter / Length / Weight | 4.92" / 13.78" / 18.74 lbs. |
| Tool Change Time Tool to Tool | 1.2 Seconds |
| Tool Change Time Chip to Chip | 2.86 seconds |
| Rapid Traverse Rates X, Y / Z | 1181 IPM / 945 IPM |
| Machine Dimensions LxWxH | not available |
| Machine Weight | not available |
