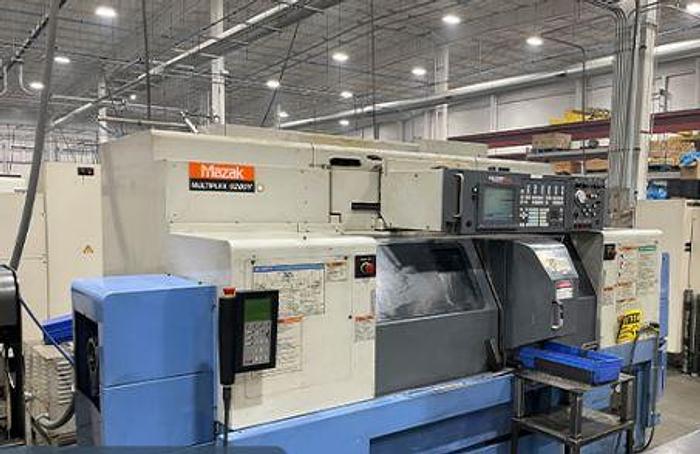

1999 Mazak Multiplex 6200Y Mazatrol Fusion 640MT
No longer available
1999 Mazak Multiplex 6200Y Mazatrol Fusion 640MT
Location:California
Description

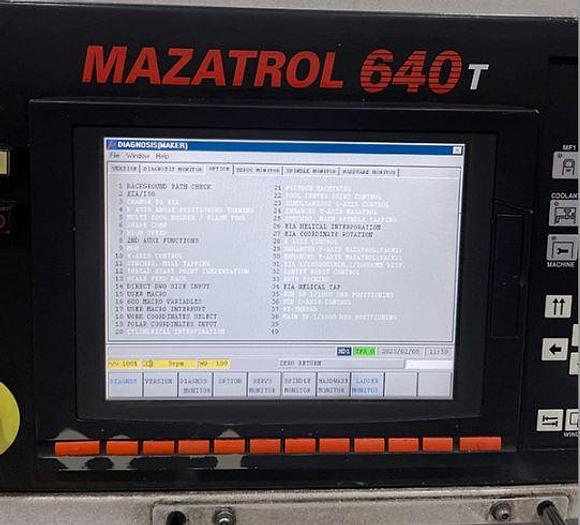

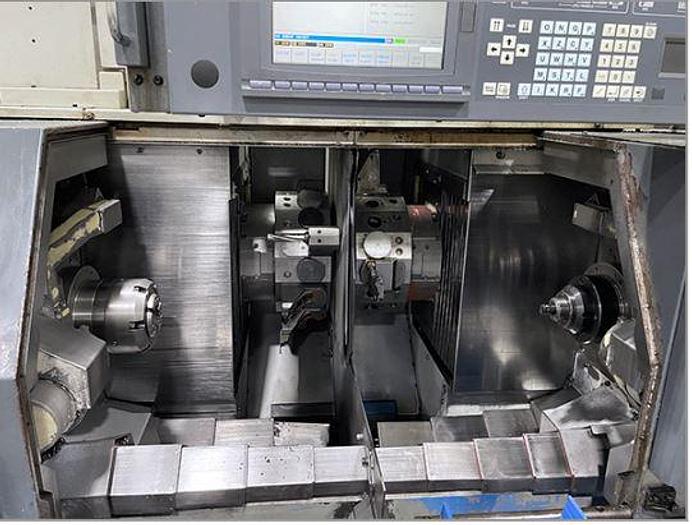

(2) Collet Chucks
Tool Eyes both Spindles
Synchronous Tapping
High Pressure Coolant
EIA/ISO Input Function
Background Editing
Macros
Polar Coordinate Input
EIA Helical Interpolation
EIA Coordinate Rotation
EIA Helical Tap
600 Macro Variable
User Macro Interupt
Specifications
| Manufacturer | Mazak |
| Model | Multiplex 6200Y Mazatrol Fusion 640MT |
| Year | 1999 |
| Condition | Used |
| Stock Number | 118766 |
| Chuck sizes | (2) Collet Chucks |
| Maximum swing/stand. cut diam. | 12.5" / 10.24" |
| X-axis travel both turrets | 9.44" |
| Z-axis travel head 1 / head 2 | 17.32" / 19.48" |
| Distance between spindle faces | 46.85" |
| Y-axis travel both turrets | +/- 2.0" |
| Spindle nose / bore | A2-6" / 2.4" |
| Maximum bar capacity | 2.0" |
| Spindle speed | 35 - 5000 RPM |
| Spindle motor 30 min. / cont. | 30 HP / 20 HP |
| Turret type | (2) 12 Positions |
| Rotary tools speed / motor hp | 30-4500 RPM/5 HP |
| Rapid traverse x, y, z | 1200/393/1300 IPM |
| Machine dimensions | 141"x78"x83" |
| Machine weight | 17,000 lbs. |
