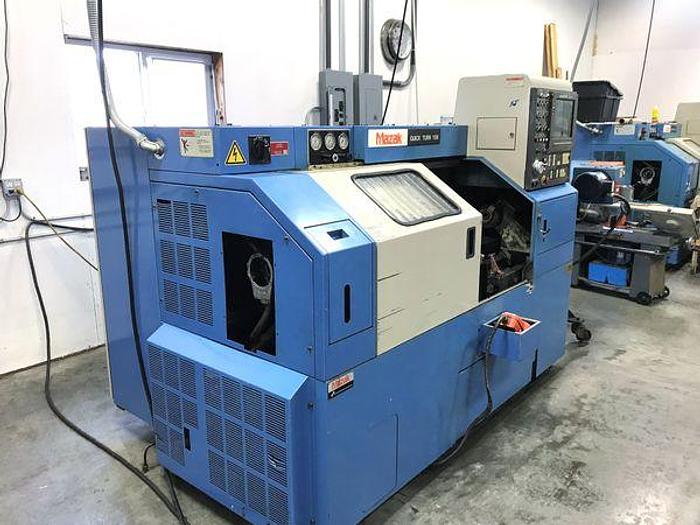

1993 Mazak QT15N
1993 Mazak QT15N
Contact us for price
Montana
orCall (863) 439-6066
Description
8" 3 Jaw Hydraulic Chuck
Chip Conveyor

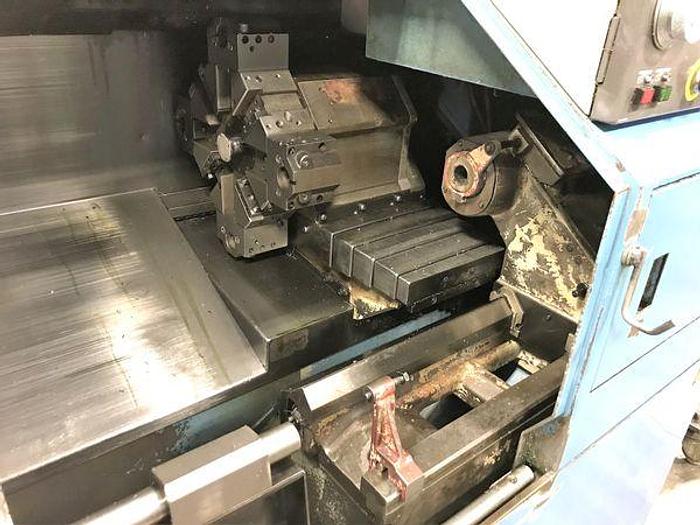

Automatic Parts Catcher Programmable Tailstock
Automatic Tool Eye RS 232 Port Interface Multi Tap Transformer Complete Coolant System with Tank & Pump
Color Graphics Control
Extra Programming Memory All Available Tooling All Available Manuals
**Spindle Drive Rebuilt in 2021**
Specifications
| Manufacturer | Mazak |
| Model | QT15N |
| Year | 1993 |
| Condition | Used |
| Stock Number | 118761 |

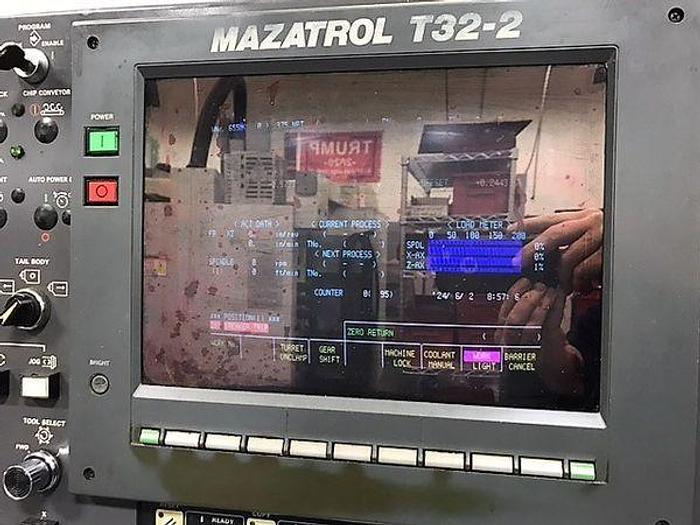

| Control | Mazatrol T32-2 Color Graphics Control |
| Maximum Swing over Bed | 17.32" |
| Maximum Swing Over Cross Slide | 11.81" |
| Maximum Cutting Length | 19.69" |
| Maximum Bar Capacity | 2.0" |
| X-Axis Travel | 7.09" |
| Z-Axis Travel | 20.08" |
| Spindle Nose / Spindle Bore | A2-6" / 2.44" |
| Spindle Speeds | 45 - 4,500 RPM |
| Spindle Motor | 20 HP |
| Number of Turret Positions | 8 Positions |
| Rapid Traverse Rates | 1180 IPM |
| Cutting Feedrates | 197 IPM |
| Tailstock Quill Diameter / Center | 3.15" / MT #4 |
| Machine Dimensions | 93" x 61" x 71" |
| Machine Weight | 9,300 lbs. |
