1996 Miyano LE-25 w/ Milling & Subspindle
No longer available
1996 Miyano LE-25 w/ Milling & Subspindle
$22,500 (USD)
Location:New Jersey
Description

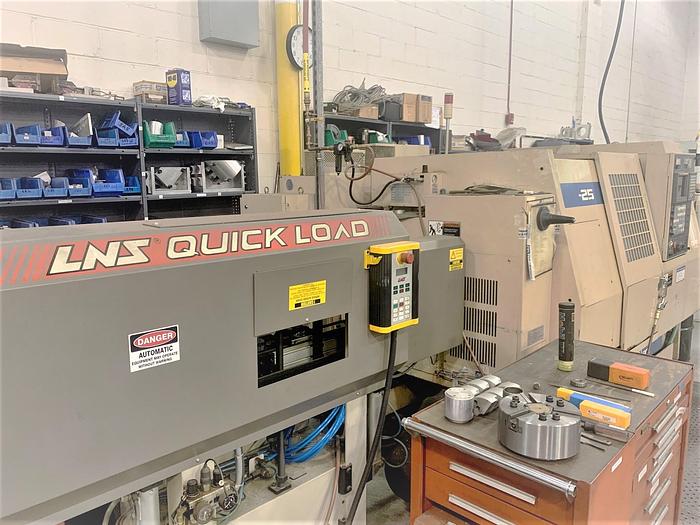

LNS Quick Load Barfeed
Live Milling/Drilling Capability

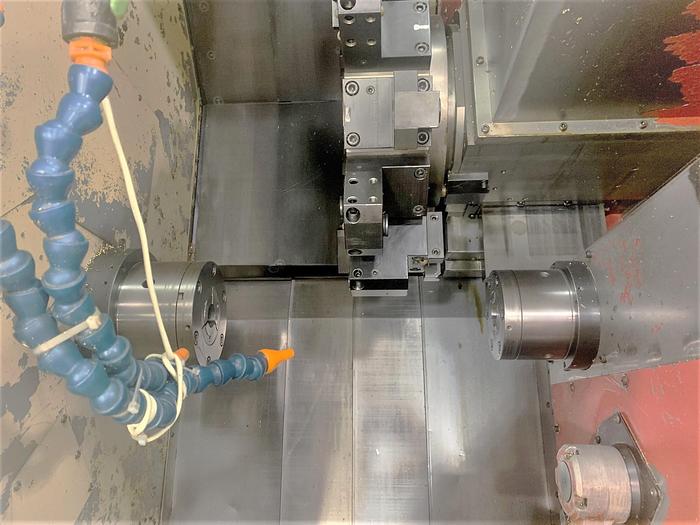

Subspindle
Collet Chuck on Main Spindle
Collet Chuck on Subspindle
Automatic Parts Catcher
Chip Conveyor
Spindle Orientation
RS 232 Port Interface
All Available Tooling
All Available Manuals
Complete Coolant System with Tank & Pump
Specifications
| Manufacturer | Miyano |
| Model | LE-25 w/ Milling & Subspindle |
| Year | 1996 |
| Condition | Used |
| Stock Number | 118759 |
| Machine Control | Fanuc 16T Control |
| Chuck types main / subspindle | Collet Chuck / Collet Chuck |
| Maximum swing | 14" |
| Maximum cutting diameter | 6.5" |
| Maximum machining length | 13" |
| Maximum bar capacity | 2" |
| X-axis travel | 4" |
| Z-axis travel | 13" |
| Minimum spindle index increment | 5 Degree |
| Spindle nose / spindle bore | A2-6" / 2.4" |
| Spindle speed | 40 - 5000 RPM |
| Spindle motor 30 min. / cont. | 20 HP / 15 HP |
| Subspindle Speed | 30 - 4,000 RPM |
| Subspindle Motor | 5 HP |
| Rotary tool speed | 30 - 3000 RPM |
| Rotary tool motor | 3 HP |
| Turret type / live positions | 12 Stations / 6 Positions |
| Rapid traverse rates | n/a |
| Machine dimensions | 124"x66"x68" approximate |
| Machine weight | 10,100 lbs. |
