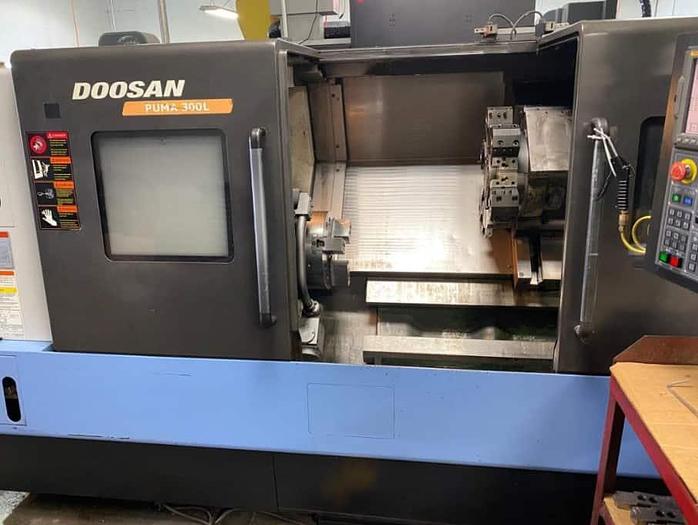

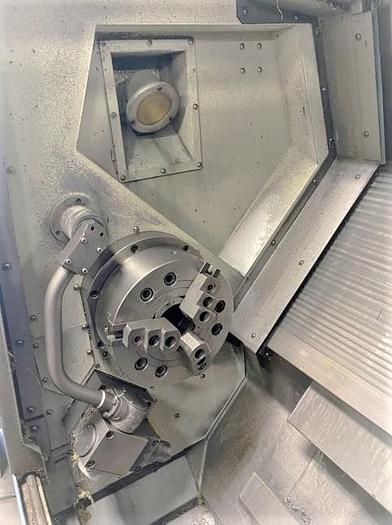

2008 Doosan Puma 300LC
No longer available
2008 Doosan Puma 300LC
Location:Ohio
Description

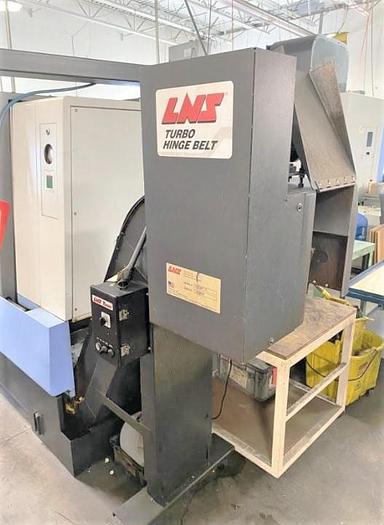

Chip Conveyor 12" Samchully 3 Jaw Hydraulic Chuck Tailstock
Tool Presetter
3.5" Floppy Disk Interface RS 232 Port Interface Coolant System with Tank & Pump
Boxed Way Construction on Slant Bed
Geared Headstock All Available Tooling All Available Manuals

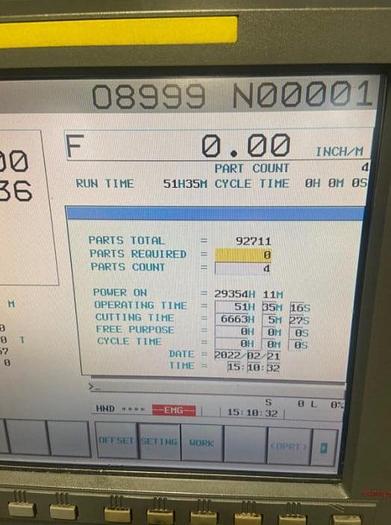

**Cutting Hours 6,663**
Specifications
| Manufacturer | Doosan |
| Model | Puma 300LC |
| Year | 2008 |
| Condition | Used |
| Stock Number | 118752 |

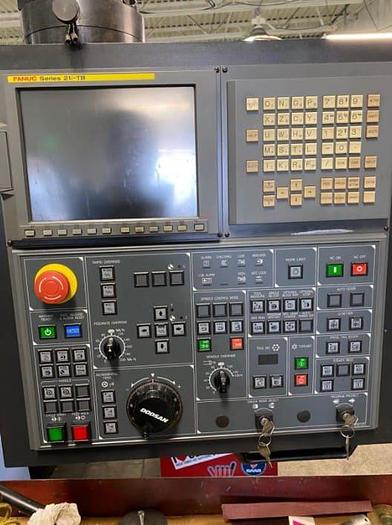

| Control | Fanuc 21i-TB Control |
| Chuck Size | 12" Hydraulic Chuck |
| Maximum Swing | 23.2" |
| Maximum Turning Diameter | 15.7" |
| Maximum Turning Length | 50.6" |
| Maximum Bar Capacity | 4.05" |
| X-Axis Travel | 11.1" |
| Z-Axis Travel | 52.4" |
| Spindle Nose / Spindle Bore | A2-11" / 4.53" |
| Spindle Speeds | 2,800 RPM |
| Spindle Motor | 35 HP |

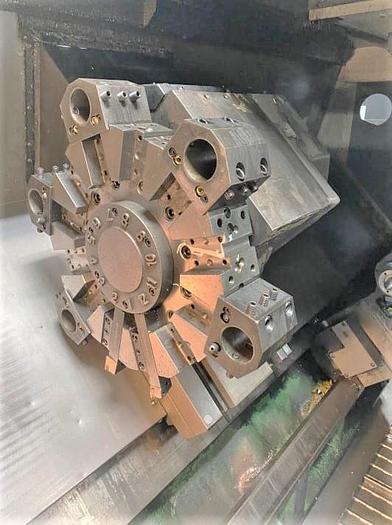

| Number of Turret Positions | 10 Position Turret |
| Rapid Traverse Rates X/Z | 630 IPM / 945 IPM |

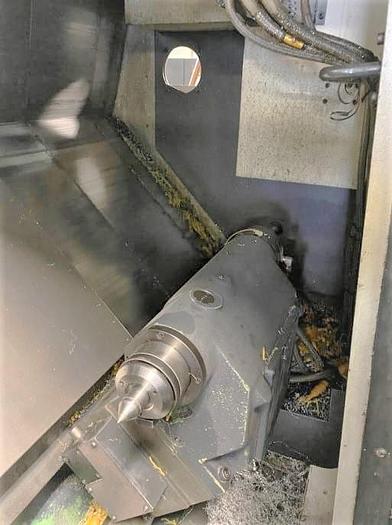

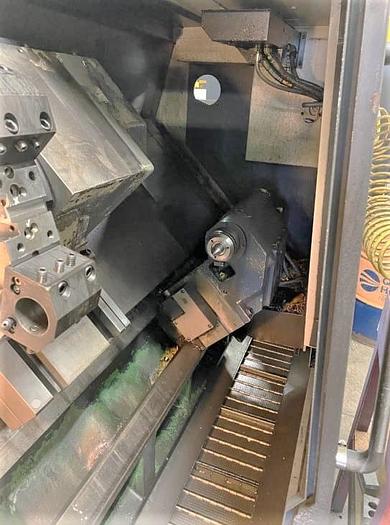

| Tailstock Quill Diameter / Center | 3.94" / MT #4 |
| Tailstock Quill Travel | 3.94" |
| Machine Dimensions | 162" x 75" x 91" |
| Machine Weight | 15,500 lbs. |
